Suzuki DT 40 Parts Listings 1986 to 1998

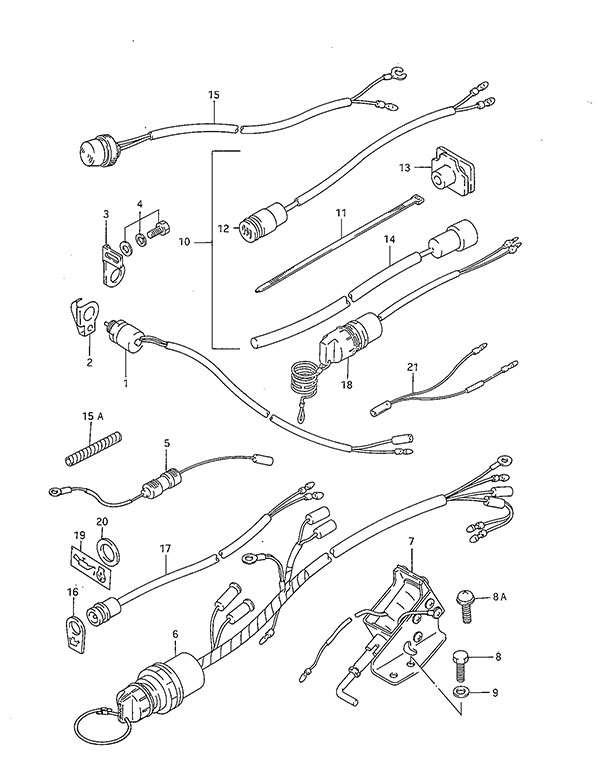

Fig. 17 - Electrical (2)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37721-94406 Neutral Switch Assembly
SKU: 37721-94406 Weight: 0.200000 Brand: Price: $ 29.49 |
Neutral Switch Assembly | 1 | $ 29.49 | Electric Starter | |
| 2 | 37725-94302 Neutral Switch Actuator
SKU: 37725-94302 Weight: 0.060000 Brand: Price: $ 5.35 |
Neutral Switch Actuator | 1 | $ 5.35 | Electric Starter | |
| 3 | 37726-94402 Switch Bracket
SKU: 37726-94402 Weight: 0.100000 Brand: Price: $ 4.84 |
Switch Bracket | 1 | $ 4.84 | Electric Starter | |
| 4 | 01580-06167 BOLT
SKU: 01580-06167 Weight: 0.100000 Brand: Price: $ 2.88 |
BOLT | 1 | $ 2.88 | Electric Starter | |
| 5 | 36895-94400 Wire Lead (NLA)
SKU: 36895-94400 Weight: 0.100000 Brand: Price: $ 1.61 |
Wire Lead (NLA) | 1 | $ 1.61 | ||
| 6 | 37110-94X50 Ignition Switch Assembly (NLA)
SKU: 37110-94X50 Weight: 7.000000 Brand: Price: $ 100.42 |
Ignition Switch Assembly (NLA) | 1 | $ 100.42 | Electric Starter 1986 to 1992 | |
| 7 | 38600-94400 Choke Solenoid Assembly
SKU: 38600-94400 Weight: 0.100000 Brand: Price: $ 107.82 |
Choke Solenoid Assembly | 1 | $ 107.82 | Std: DT40TC, DT40RC Opt: DT40C | |
| 8-1 | 01500-05107 Bolt 5x10 (NLA)
SKU: 01500-05107 Weight: 0.100000 Brand: Price: $ 1.51 |
Bolt 5x10 (NLA) | 2 | $ 1.51 | 1986 to 1993 | |
| 8-2 | 01570-05107 Bolt (NLA)
SKU: 01570-05107 Weight: 0.100000 Brand: Price: $ 1.36 |
Bolt (NLA) | 2 | $ 1.36 | 1994 to 1995 | |
| 8A | 02112-35127 SCREW 5X12
SKU: 02112-35127 Weight: 0.060000 Brand: Price: $ 1.54 |
SCREW 5X12 | 2 | $ 1.54 | 1997 to 1998 | |
| 9 | 09162-05002 Lock Washer
SKU: 09162-05002 Weight: 0.125000 Brand: Price: $ 1.27 |
Lock Washer | 2 | $ 1.27 | 1986 to 1993 | |
| 10 | 39600-93910 Receptacle Set (NLA)
SKU: 39600-93910 Weight: 1.000000 Brand: Price: $ 79.35 |
Receptacle Set (NLA) | 1 | $ 79.35 | Opt: Manual Starter | |
| 11 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | Opt: Manual Starter | |
| 12 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | Opt: Manual Starter | |
| 13 | 39603-94400 Receptacle Grommet (NLA)
SKU: 39603-94400 Weight: 0.100000 Brand: Price: $ 6.73 |
Receptacle Grommet (NLA) | 1 | $ 6.73 | Opt: Manual Starter | |
| 14 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | Opt: Manual Starter | |
| 15 | 37800-93955 Engine Stop Switch Assembly
SKU: 37800-93955 Weight: 0.250000 Brand: Price: $ 28.30 |
Engine Stop Switch Assembly | 1 | $ 28.30 | Manual Starter | |
| 15A | 33446-98E20 High Tension Protect Tube (NLA)
SKU: 33446-98E20 Weight: 0.100000 Brand: Price: $ 2.96 |
High Tension Protect Tube (NLA) | 1 | $ 2.96 | ||
| 16 | 36365-94401 Indicator (NLA)
SKU: 36365-94401 Weight: 0.100000 Brand: Price: $ 2.57 |
Indicator (NLA) | 1 | $ 2.57 | ||
| 17 | 36360-94400 Oil Warning Lamp Assembly (NLA)
SKU: 36360-94400 Weight: 0.100000 Brand: Price: $ 23.38 |
Oil Warning Lamp Assembly (NLA) | 1 | $ 23.38 | ||
| 18 | 37820-94461 Emergency Stop Switch Assembly
SKU: 37820-94461 Weight: 0.150000 Brand: Price: $ 51.84 |
Emergency Stop Switch Assembly | 1 | $ 51.84 | 1986 to 1992 | |
| 19 | 36367-95D10-064 Oil/Water Lamp Label (NLA)
SKU: 36367-95D10-064 Weight: 0.100000 Brand: Price: $ 1.73 |
Oil/Water Lamp Label (NLA) | 1 | $ 1.73 | ||
| 20 | 09320-11004 Oil Lamp Gasket (NLA)
SKU: 09320-11004 Weight: 0.100000 Brand: Price: $ 1.15 |
Oil Lamp Gasket (NLA) | 1 | $ 1.15 | ||
| 21 | 36850-95500 Oil Flow & Buzzer Lead (NLA)
SKU: 36850-95500 Weight: 0.100000 Brand: Price: $ 5.12 |
Oil Flow & Buzzer Lead (NLA) | 1 | $ 5.12 | DT40RC, DT40TC |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
