Suzuki DT 40 Parts Listings 1986 to 1998

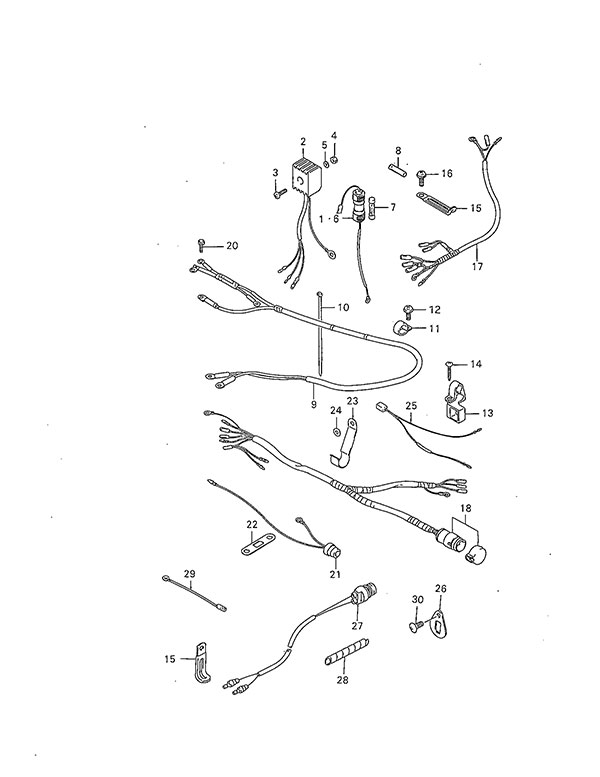

Fig. 16 - Electrical (1)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 36740-95253 Fuse Case Assembly
SKU: 36740-95253 Weight: 0.100000 Brand: Price: $ 18.47 |
Fuse Case Assembly | 1 | $ 18.47 | Manual Starter | |
| 2 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | Electric Starter | |
| 3 | 02142-0525B SCREW
SKU: 02142-0525B Weight: 0.200000 Brand: Price: $ 2.34 |
SCREW | 1 | $ 2.34 | Electric Starter | |
| 4 | 08310-0005A Nut
SKU: 08310-0005A Weight: 0.200000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | Electric Starter | |
| 5 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | Electric Starter | |
| 6 | 36740-93901 Fuse Case Assembly
SKU: 36740-93901 Weight: 0.100000 Brand: Price: $ 18.47 |
Fuse Case Assembly | 1 | $ 18.47 | Electric Starter | |
| 7 | 09481-20001 20 Amp Fuse
SKU: 09481-20001 Weight: 0.060000 Brand: Price: $ 2.54 |
20 Amp Fuse | 1 | $ 2.54 | Electric Starter | |
| 8 | 37132-93700 Wire Connector
SKU: 37132-93700 Weight: 0.100000 Brand: Price: $ 2.22 |
Wire Connector | 1 | $ 2.22 | Electric Starter | |
| 9 | 33810-94411 Starter Motor Cable (NLA)
SKU: 33810-94411 Weight: 1.600000 Brand: Price: $ 86.20 |
Starter Motor Cable (NLA) | 1 | $ 86.20 | Electric Starter | |
| 10 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 11 | 09403-14204 Clamp (NLA)
SKU: 09403-14204 Weight: 0.100000 Brand: Price: $ 1.28 |
Clamp (NLA) | 1 | $ 1.28 | Electric Starter | |
| 12 | 02142-06127 SCREW 6X12
SKU: 02142-06127 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X12 | 1 | $ 1.38 | Electric Starter | |
| 13-1 | 33816-94400 Cable Clamp (NLA)
SKU: 33816-94400 Weight: 0.100000 Brand: Price: $ 5.63 |
Cable Clamp (NLA) | 1 | $ 5.63 | Electric Starter | |
| 13-2 | 33816-96300 Cable Clamp
SKU: 33816-96300 Weight: 0.060000 Brand: Price: $ 5.56 |
Cable Clamp | 1 | $ 5.56 | 1995 to 1998 | |
| 14 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | Electric Starter | |
| 15 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 2 | $ 1.86 | ||
| 16 | 02142-06127 SCREW 6X12
SKU: 02142-06127 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X12 | 1 | $ 1.38 | Manual Starter | |
| 17-1 | 36899-94420 Oil Flow Electric Lead (NLA)
SKU: 36899-94420 Weight: 0.100000 Brand: Price: $ 18.14 |
Oil Flow Electric Lead (NLA) | 1 | $ 18.14 | Manual Starter | |
| 17-2 | 36899-94440 Oil Flow Electric Lead (NLA)
SKU: 36899-94440 Weight: 0.100000 Brand: Price: $ 21.77 |
Oil Flow Electric Lead (NLA) | 1 | $ 21.77 | 1990 to 1998 | |
| 18-1 | 36630-94422 Remocon Wiring Harness Assembly (NLA)
SKU: 36630-94422 Weight: 0.100000 Brand: Price: $ 45.91 |
Remocon Wiring Harness Assembly (NLA) | 1 | $ 45.91 | DT40TC, DT40RC Electric Starter 1986 to 1988 | |
| 18-2 | 36630-94440 Remocon Wiring Harness Assembly (NLA)
SKU: 36630-94440 Weight: 0.100000 Brand: Price: $ 54.47 |
Remocon Wiring Harness Assembly (NLA) | 1 | $ 54.47 | DT40TC, DT40RC 1989 to 1992 | |
| 20 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 21 | 34850-94700 Heat Switch w\Grease
SKU: 34850-94700 Weight: 0.125000 Brand: Price: $ 105.38 |
Heat Switch w\Grease | 1 | $ 105.38 | DT40TC, DT40RC Electric Starter | |
| 22 | 34853-94400 Heat Switch Supporter (NLA)
SKU: 34853-94400 Weight: 0.100000 Brand: Price: $ 2.12 |
Heat Switch Supporter (NLA) | 1 | $ 2.12 | DT40TC, DT40RC Electric Starter | |
| 23 | 36791-94504 Harness Holder (NLA)
SKU: 36791-94504 Weight: 0.100000 Brand: Price: $ 2.56 |
Harness Holder (NLA) | 1 | $ 2.56 | DT40TC, DT40RC | |
| 24 | 08322-01087 Washer
SKU: 08322-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | DT40TC, DT40RC | |
| 25 | 32815-94400 Heat Switch Diode (NLA)
SKU: 32815-94400 Weight: 0.100000 Brand: Price: $ 15.22 |
Heat Switch Diode (NLA) | 1 | $ 15.22 | DT40TC, DT40RC | |
| 26 | 34853-94700 Heat Sensor Supporter
SKU: 34853-94700 Weight: 0.100000 Brand: Price: $ 3.71 |
Heat Sensor Supporter | 1 | $ 3.71 | 1993 to 1998 | |
| 27 | 34850-94610 Heat Sensor Assy
SKU: 34850-94610 Weight: 0.080000 Brand: Price: $ 106.60 |
Heat Sensor Assy | 1 | $ 106.60 | 1993 to 1998 | |
| 28 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | ||
| 29 | 37801-98300 Lead (NLA)
SKU: 37801-98300 Weight: 0.100000 Brand: Price: $ 3.65 |
Lead (NLA) | 1 | $ 3.65 | 1993 to 1998 | |
| 30 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 1 | $ 2.09 | 1993 to 1998 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
