Suzuki DT 40 Parts Listings 1996 to 1998

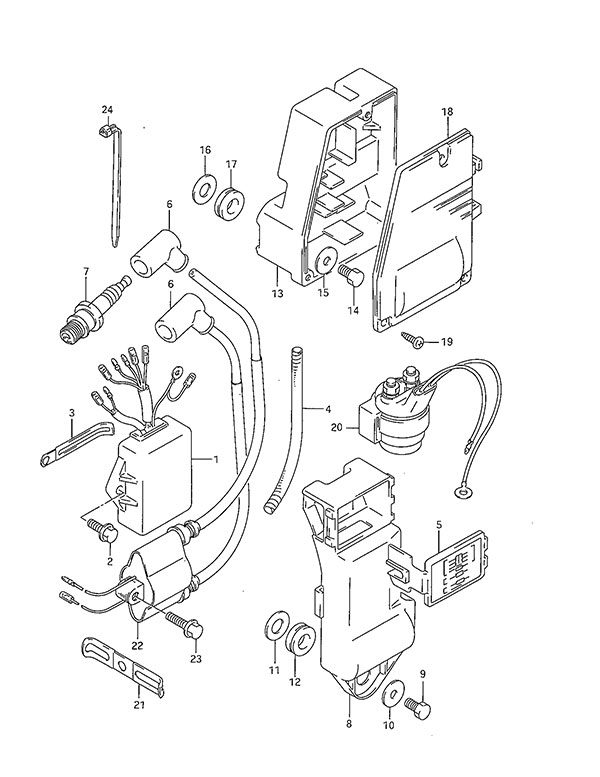

Fig. 15A - Ignition
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32900-94460 CDI Unit Assembly
SKU: 32900-94460 Weight: 0.500000 Brand: Price: $ 342.17 |
CDI Unit Assembly | 1 | $ 342.17 | ||
| 2 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 3 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 2 | $ 1.86 | ||
| 4 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 5 | 36650-94402 Junction Box Cover (NLA)
SKU: 36650-94402 Weight: 0.100000 Brand: Price: $ 6.04 |
Junction Box Cover (NLA) | 1 | $ 6.04 | ||
| 6 | 33510-95520 Spark Plug Cap
SKU: 33510-95520 Weight: 0.060000 Brand: Price: $ 18.63 |
Spark Plug Cap | 2 | $ 18.63 | ||
| 7 | 09482-00370 NGK BR8HS Spark Plug
SKU: 09482-00370 Weight: 0.187500 Brand: Price: $ 3.57 |
NGK BR8HS Spark Plug | 2 | $ 3.57 | ||
| 8 | 32950-94420 CDI/Control Unit Holder (NLA)
SKU: 32950-94420 Weight: 0.100000 Brand: Price: $ 7.74 |
CDI/Control Unit Holder (NLA) | 1 | $ 7.74 | ||
| 9 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 10 | 09160-08084 Washer
SKU: 09160-08084 Weight: 0.100000 Brand: Price: $ 2.40 |
Washer | 2 | $ 2.40 | ||
| 11 | 09160-12089 Washer
SKU: 09160-12089 Weight: 0.200000 Brand: Price: $ 1.97 |
Washer | 2 | $ 1.97 | ||
| 12 | 09320-12090 Cushion
SKU: 09320-12090 Weight: 0.060000 Brand: Price: $ 1.91 |
Cushion | 2 | $ 1.91 | ||
| 13 | 32890-94401 Electric Parts Holder
SKU: 32890-94401 Weight: 0.500000 Brand: Price: $ 18.47 |
Electric Parts Holder | 1 | $ 18.47 | ||
| 14 | 09103-06049 Bolt (6x12) (NLA)
SKU: 09103-06049 Weight: 0.100000 Brand: Price: $ 0.72 |
Bolt (6x12) (NLA) | 2 | $ 0.72 | ||
| 15 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 2 | $ 1.78 | ||
| 16 | 09160-12089 Washer
SKU: 09160-12089 Weight: 0.200000 Brand: Price: $ 1.97 |
Washer | 2 | $ 1.97 | ||
| 17 | 09320-12090 Cushion
SKU: 09320-12090 Weight: 0.060000 Brand: Price: $ 1.91 |
Cushion | 2 | $ 1.91 | ||
| 18 | 32891-94401 Electric Parts Holder Cover
SKU: 32891-94401 Weight: 0.120000 Brand: Price: $ 8.60 |
Electric Parts Holder Cover | 1 | $ 8.60 | ||
| 19 | 03212-0512B SCREW
SKU: 03212-0512B Weight: 0.060000 Brand: Price: $ 2.62 |
SCREW | 3 | $ 2.62 | ||
| 20 | 31800-94401 Starter Relay
SKU: 31800-94401 Weight: 0.340000 Brand: Price: $ 140.18 |
Starter Relay | 1 | $ 140.18 | ||
| 21 | 32919-92L00 Clamp
SKU: 32919-92L00 Weight: 0.125000 Brand: Price: $ 12.85 |
Clamp | 1 | $ 12.85 | ||
| 22 | 33410-92L11 Ignition Coil Assembly
SKU: 33410-92L11 Weight: 0.500000 Brand: Price: $ 132.60 |
Ignition Coil Assembly | 1 | $ 132.60 | ||
| 23 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 24 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
