Suzuki DT 40 Parts Listings 1986 to 1998

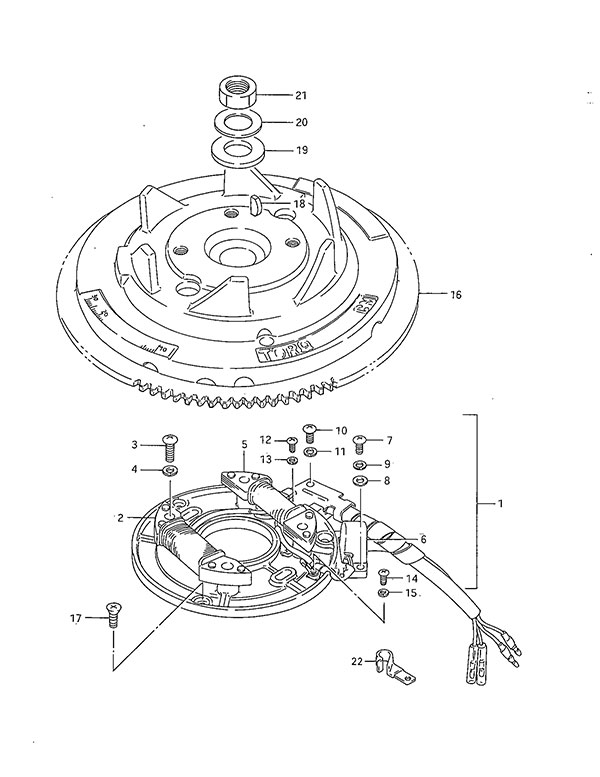

Fig. 14 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32101-94424 Stator Assembly
SKU: 32101-94424 Weight: 2.000000 Brand: Price: $ 756.30 |
Stator Assembly | 1 | $ 756.30 | ||
| 2-1 | 32120-94400 Lighting Coil
SKU: 32120-94400 Weight: 0.450000 Brand: Price: $ 86.41 |
Lighting Coil | 1 | $ 86.41 | Electric Starter | |
| 2-2 | 32120-94410 Lighting Coil (NLA)
SKU: 32120-94410 Weight: 0.100000 Brand: Price: $ 64.19 |
Lighting Coil (NLA) | 1 | $ 64.19 | Manual Starter | |
| 3 | 02112-06257 6X25CROSS SCREW
SKU: 02112-06257 Weight: 0.060000 Brand: Price: $ 1.88 |
6X25CROSS SCREW | 4 | $ 1.88 | ||
| 4 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.95 |
Lock Washer | 4 | $ 1.95 | ||
| 5 | 32140-94400 Ignition Coil Assembly
SKU: 32140-94400 Weight: 0.300000 Brand: Price: $ 107.54 |
Ignition Coil Assembly | 1 | $ 107.54 | ||
| 6 | 32150-94410 Ignition Sensor
SKU: 32150-94410 Weight: 0.080000 Brand: Price: $ 164.55 |
Ignition Sensor | 1 | $ 164.55 | ||
| 7 | 02112-05107 5 X 10 CROSS SC
SKU: 02112-05107 Weight: 0.060000 Brand: Price: $ 1.52 |
5 X 10 CROSS SC | 2 | $ 1.52 | ||
| 8 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.95 |
Washer | 2 | $ 1.95 | ||
| 9 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.95 |
Lock Washer | 2 | $ 1.95 | ||
| 10 | 02112-05107 5 X 10 CROSS SC
SKU: 02112-05107 Weight: 0.060000 Brand: Price: $ 1.52 |
5 X 10 CROSS SC | 1 | $ 1.52 | ||
| 11 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.95 |
Lock Washer | 1 | $ 1.95 | ||
| 12 | 02112-04087 SCREW 4X8
SKU: 02112-04087 Weight: 0.060000 Brand: Price: $ 1.17 |
SCREW 4X8 | 1 | $ 1.17 | ||
| 13 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.95 |
Lock Washer | 1 | $ 1.95 | ||
| 14 | 02112-04047 SCREW 4X40
SKU: 02112-04047 Weight: 0.100000 Brand: Price: $ 1.25 |
SCREW 4X40 | 1 | $ 1.25 | ||
| 15 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.95 |
Lock Washer | 1 | $ 1.95 | ||
| 16-1 | 32102-94412 Flywheel (NLA)
SKU: 32102-94412 Weight: 10.000000 Brand: Price: $ 684.50 |
Flywheel (NLA) | 1 | $ 684.50 | Electric Starter | |
| 16-2 | 32102-94402 Flywheel (NLA)
SKU: 32102-94402 Weight: 0.100000 Brand: Price: $ 345.44 |
Flywheel (NLA) | 1 | $ 345.44 | Manual Starter | |
| 17 | 02122-0512A SCREW
SKU: 02122-0512A Weight: 0.200000 Brand: Price: $ 1.97 |
SCREW | 3 | $ 1.97 | ||
| 18 | 08341-31059 Woodruff Key 5mm
SKU: 08341-31059 Weight: 0.060000 Brand: Price: $ 2.65 |
Woodruff Key 5mm | 1 | $ 2.65 | ||
| 19 | 09160-18011 Washer
SKU: 09160-18011 Weight: 0.062500 Brand: Price: $ 6.17 |
Washer | 1 | $ 6.17 | ||
| 20 | 09164-18001 Washer
SKU: 09164-18001 Weight: 0.200000 Brand: Price: $ 3.47 |
Washer | 1 | $ 3.47 | ||
| 21 | 09140-18014 Nut
SKU: 09140-18014 Weight: 0.060000 Brand: Price: $ 4.33 |
Nut | 1 | $ 4.33 | ||
| 22 | 09403-10312 Clamp (NLA)
SKU: 09403-10312 Weight: 0.100000 Brand: Price: $ 1.40 |
Clamp (NLA) | 1 | $ 1.40 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
