Suzuki DT 40 Parts Listings 1986 to 1998

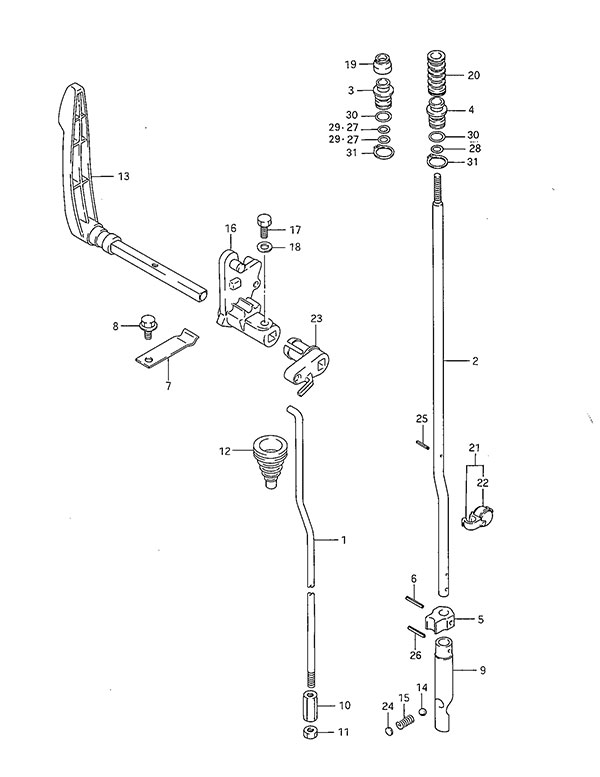

Fig. 12 - Clutch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 23111-94401 Clutch Rod
SKU: 23111-94401 Weight: 0.200000 Brand: Price: $ 16.54 |
Clutch Rod | 1 | $ 16.54 | ||
| 2-1 | 25111-94412 Shift Rod (S) (NLA)
SKU: 25111-94412 Weight: 0.100000 Brand: Price: $ 13.54 |
Shift Rod (S) (NLA) | 1 | $ 13.54 | w/Transom (S) | |
| 2-2 | 25111-94442 Shift Rod (L)
SKU: 25111-94442 Weight: 0.300000 Brand: Price: $ 31.01 |
Shift Rod (L) | 1 | $ 31.01 | Type: L | |
| 3 | 25211-94401 Shift Rod Guide
SKU: 25211-94401 Weight: 0.060000 Brand: Price: $ 20.55 |
Shift Rod Guide | 1 | $ 20.55 | w/Transom (S) | |
| 4 | 25211-94421 Shift Rod Guide (L) (NLA)
SKU: 25211-94421 Weight: 0.100000 Brand: Price: $ 6.63 |
Shift Rod Guide (L) (NLA) | 1 | $ 6.63 | Type: L | |
| 5 | 25212-94401 Shift Rod Lower Guide
SKU: 25212-94401 Weight: 0.060000 Brand: Price: $ 3.72 |
Shift Rod Lower Guide | 1 | $ 3.72 | ||
| 6 | 09205-02013 Spring Pin (2.5x16)
SKU: 09205-02013 Weight: 0.060000 Brand: Price: $ 1.18 |
Spring Pin (2.5x16) | 1 | $ 1.18 | ||
| 7 | 23213-94400 Clutch Spring
SKU: 23213-94400 Weight: 0.060000 Brand: Price: $ 3.06 |
Clutch Spring | 1 | $ 3.06 | ||
| 8 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.53 |
BOLT | 1 | $ 1.53 | ||
| 9 | 25311-94402 Shift Cam
SKU: 25311-94402 Weight: 0.250000 Brand: Price: $ 57.44 |
Shift Cam | 1 | $ 57.44 | ||
| 10 | 23311-95DL0 Clutch Rod Connector
SKU: 23311-95DL0 Weight: 0.060000 Brand: Price: $ 9.44 |
Clutch Rod Connector | 1 | $ 9.44 | ||
| 11 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.88 |
Nut (6mm) | 1 | $ 1.88 | ||
| 12 | 23131-92L00 Clutch Rod Boot
SKU: 23131-92L00 Weight: 0.060000 Brand: Price: $ 4.61 |
Clutch Rod Boot | 1 | $ 4.61 | ||
| 13 | 21110-94402 Clutch Lever
SKU: 21110-94402 Weight: 0.500000 Brand: Price: $ 42.71 |
Clutch Lever | 1 | $ 42.71 | ||
| 14 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.92 |
Ball | 1 | $ 1.92 | ||
| 15-1 | 09440-07033 Cam Notch Spring
SKU: 09440-07033 Weight: 0.060000 Brand: Price: $ 1.56 |
Cam Notch Spring | 1 | $ 1.56 | S/N 464115 Older | |
| 15-2 | 09440-07071 Spring
SKU: 09440-07071 Weight: 0.060000 Brand: Price: $ 5.82 |
Spring | 1 | $ 5.82 | S/N 464116 Newer | |
| 16 | 21121-92L00 Clutch Plate
SKU: 21121-92L00 Weight: 0.125000 Brand: Price: $ 16.57 |
Clutch Plate | 1 | $ 16.57 | ||
| 17 | 02162-05167 BOLT
SKU: 02162-05167 Weight: 0.060000 Brand: Price: $ 2.17 |
BOLT | 1 | $ 2.17 | ||
| 18 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.95 |
Washer | 1 | $ 1.95 | ||
| 19-1 | 25223-96J00 Seal, Shift Rod Dust
SKU: 25223-96J00 Weight: 0.060000 Brand: Price: $ 5.75 |
Seal, Shift Rod Dust | 1 | $ 5.75 | 1986 to 1995 Type: S | |
| 19-2 | 25223-96J00 Seal, Shift Rod Dust
SKU: 25223-96J00 Weight: 0.060000 Brand: Price: $ 5.75 |
Seal, Shift Rod Dust | 1 | $ 5.75 | 1996 to 1998 Type: S/L | |
| 20 | 25223-96J00 Seal, Shift Rod Dust
SKU: 25223-96J00 Weight: 0.060000 Brand: Price: $ 5.75 |
Seal, Shift Rod Dust | 1 | $ 5.75 | 1986 to 1995 Type: L | |
| 21 | 25230-94300 Gear Case Magnet Set
SKU: 25230-94300 Weight: 0.060000 Brand: Price: $ 18.27 |
Gear Case Magnet Set | 1 | $ 18.27 | ||
| 22 | 25232-94300 Gear Case Magnet
SKU: 25232-94300 Weight: 0.125000 Brand: Price: $ 3.36 |
Gear Case Magnet | 1 | $ 3.36 | ||
| 23 | 23211-94401 Clutch Rod Arm
SKU: 23211-94401 Weight: 0.060000 Brand: Price: $ 6.74 |
Clutch Rod Arm | 1 | $ 6.74 | ||
| 24 | 21121-93300 Clutch Notch Plate
SKU: 21121-93300 Weight: 0.060000 Brand: Price: $ 1.51 |
Clutch Notch Plate | 1 | $ 1.51 | ||
| 25 | 09205-02004 Spring Pin (2.5x12)
SKU: 09205-02004 Weight: 0.060000 Brand: Price: $ 0.95 |
Spring Pin (2.5x12) | 1 | $ 0.95 | ||
| 26 | 09205-03021 Spring Pin (3.5x12)
SKU: 09205-03021 Weight: 0.060000 Brand: Price: $ 1.10 |
Spring Pin (3.5x12) | 1 | $ 1.10 | ||
| 27 | 09280-08005 O-Ring
SKU: 09280-08005 Weight: 0.060000 Brand: Price: $ 1.88 |
O-Ring | 2 | $ 1.88 | 1986 to 1995 Type: S | |
| 28 | 09280-08005 O-Ring
SKU: 09280-08005 Weight: 0.060000 Brand: Price: $ 1.88 |
O-Ring | 1 | $ 1.88 | 1986 to 1995 Type: L | |
| 29 | 09280-08005 O-Ring
SKU: 09280-08005 Weight: 0.060000 Brand: Price: $ 1.88 |
O-Ring | 2 | $ 1.88 | Type: S/L | |
| 30 | 09280-11005 Shift Rod O-Ring
SKU: 09280-11005 Weight: 0.060000 Brand: Price: $ 4.67 |
Shift Rod O-Ring | 1 | $ 4.67 | ||
| 31 | 08331-3115A Circlip
SKU: 08331-3115A Weight: 0.060000 Brand: Price: $ 2.05 |
Circlip | 1 | $ 2.05 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
