Suzuki DT 40 Parts Listings 1986 to 1998

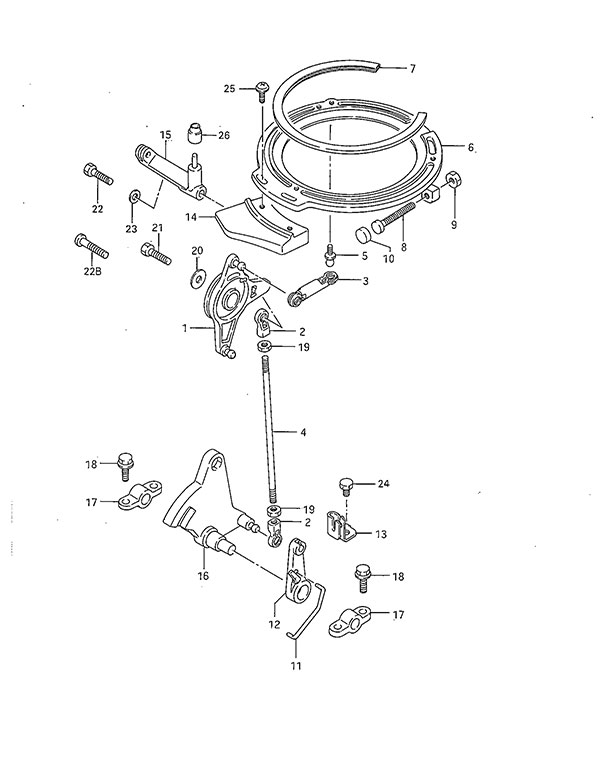

Fig. 11 - Throttle Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 19121-94400 Throttle Lever
SKU: 19121-94400 Weight: 0.100000 Brand: Price: $ 11.52 |
Throttle Lever | 1 | $ 11.52 | ||
| 2 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.68 |
Connector | 2 | $ 4.68 | ||
| 3 | 19132-94501 Connector
SKU: 19132-94501 Weight: 0.060000 Brand: Price: $ 3.00 |
Connector | 1 | $ 3.00 | ||
| 4-1 | 19135-94400 Rod
SKU: 19135-94400 Weight: 0.060000 Brand: Price: $ 5.01 |
Rod | 1 | $ 5.01 | 1986 to 1997 | |
| 4-2 | 16411-94400 Rod (NLA)
SKU: 16411-94400 Weight: 0.100000 Brand: Price: $ 3.99 |
Rod (NLA) | 1 | $ 3.99 | 1998 | |
| 5 | 09119-05010 Pivot Ball
SKU: 09119-05010 Weight: 0.060000 Brand: Price: $ 7.33 |
Pivot Ball | 1 | $ 7.33 | ||
| 6 | 19151-94400 Stator Retainer (NLA)
SKU: 19151-94400 Weight: 0.100000 Brand: Price: $ 31.47 |
Stator Retainer (NLA) | 1 | $ 31.47 | ||
| 7 | 19161-94301 Stator Spacer (NLA)
SKU: 19161-94301 Weight: 0.250000 Brand: Price: $ 5.55 |
Stator Spacer (NLA) | 1 | $ 5.55 | ||
| 8 | 09139-06015 Screw (NLA)
SKU: 09139-06015 Weight: 0.100000 Brand: Price: $ 2.47 |
Screw (NLA) | 1 | $ 2.47 | ||
| 9 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.88 |
Nut (6mm) | 1 | $ 1.88 | ||
| 10 | 09329-06002 Cushion (NLA)
SKU: 09329-06002 Weight: 0.100000 Brand: Price: $ 1.38 |
Cushion (NLA) | 1 | $ 1.38 | ||
| 11 | 19654-94421 Interlock Rod
SKU: 19654-94421 Weight: 0.200000 Brand: Price: $ 3.83 |
Interlock Rod | 1 | $ 3.83 | ||
| 12 | 19851-94401 NSI Lever
SKU: 19851-94401 Weight: 0.060000 Brand: Price: $ 3.65 |
NSI Lever | 1 | $ 3.65 | ||
| 13 | 19861-96301 NSI Cable Stay (NLA)
SKU: 19861-96301 Weight: 0.100000 Brand: Price: $ 1.61 |
NSI Cable Stay (NLA) | 1 | $ 1.61 | ||
| 14 | 19141-94401 Throttle Cam
SKU: 19141-94401 Weight: 0.100000 Brand: Price: $ 8.23 |
Throttle Cam | 1 | $ 8.23 | ||
| 15 | 19521-94400 Throttle Lever (NLA)
SKU: 19521-94400 Weight: 0.250000 Brand: Price: $ 5.39 |
Throttle Lever (NLA) | 1 | $ 5.39 | ||
| 16 | 19811-94400 Throttle Limiter (NLA)
SKU: 19811-94400 Weight: 0.100000 Brand: Price: $ 9.52 |
Throttle Limiter (NLA) | 1 | $ 9.52 | ||
| 17 | 19815-94400 Holder (NLA)
SKU: 19815-94400 Weight: 0.060000 Brand: Price: $ 2.72 |
Holder (NLA) | 2 | $ 2.72 | ||
| 18 | 09103-06048 Bolt (6x20) (NLA)
SKU: 09103-06048 Weight: 0.060000 Brand: Price: $ 1.06 |
Bolt (6x20) (NLA) | 4 | $ 1.06 | ||
| 19 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.74 |
Nut | 2 | $ 2.74 | ||
| 20-1 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 2.10 |
Washer (6.5x20x1.5) | 1 | $ 2.10 | 1986 to 1994 | |
| 20-2 | 09160-06036 Washer (6.5x18x1.5)
SKU: 09160-06036 Weight: 0.060000 Brand: Price: $ 2.08 |
Washer (6.5x18x1.5) | 1 | $ 2.08 | 1995 to 1996 | |
| 20-3 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.88 |
Washer (6.5x18x1.6) | 1 | $ 1.88 | 1997 to 1998 | |
| 21 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.53 |
BOLT | 1 | $ 1.53 | ||
| 22-1 | 09100-05017 Bolt (5x40) (NLA)
SKU: 09100-05017 Weight: 0.100000 Brand: Price: $ 0.86 |
Bolt (5x40) (NLA) | 1 | $ 0.86 | 1986 to 1994 | |
| 22-2 | 01500-05407 Bolt (NLA)
SKU: 01500-05407 Weight: 0.100000 Brand: Price: $ 1.44 |
Bolt (NLA) | 1 | $ 1.44 | 1995 to 1997 | |
| 22B | 02142-05403 Screw (NLA)
SKU: 02142-05403 Weight: 0.100000 Brand: Price: $ 1.37 |
Screw (NLA) | 1 | $ 1.37 | 1998 | |
| 23 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.95 |
Washer | 1 | $ 1.95 | ||
| 24 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.53 |
BOLT | 1 | $ 1.53 | ||
| 25 | 02142-05207 SCREW
SKU: 02142-05207 Weight: 0.060000 Brand: Price: $ 1.50 |
SCREW | 2 | $ 1.50 | ||
| 26 | 61610-94400 Fastener Roller (NLA)
SKU: 61610-94400 Weight: 0.100000 Brand: Price: $ 5.07 |
Fastener Roller (NLA) | 1 | $ 5.07 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
