Suzuki DT 40 Parts Listings 1992 to 1998

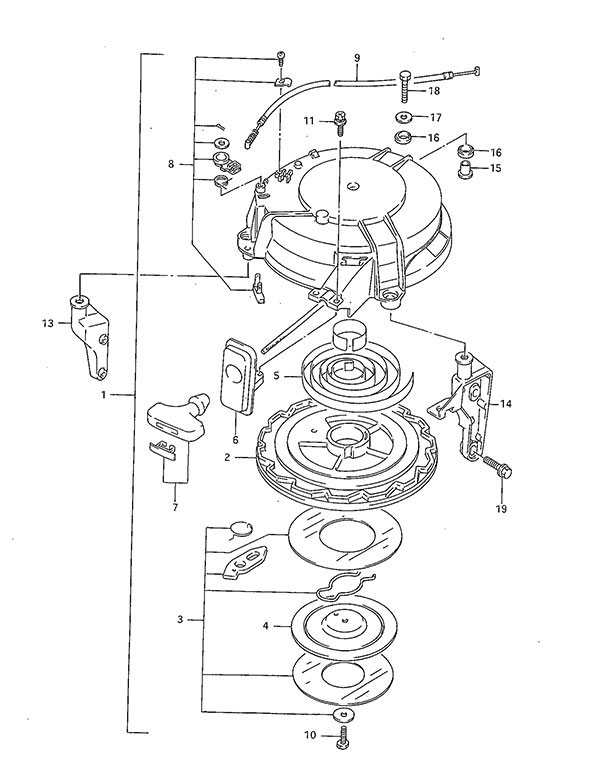

Fig. 10 - Recoil Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 18100-94430 Recoil Starter Assembly
SKU: 18100-94430 Weight: 5.000000 Brand: Price: $ 542.30 |
Recoil Starter Assembly | 1 | $ 542.30 | ||
| 2 | 18121-94410 Reel (NLA)
SKU: 18121-94410 Weight: 0.800000 Brand: Price: $ 41.46 |
Reel (NLA) | 1 | $ 41.46 | ||
| 3 | 18130-94400 Ratchet Set
SKU: 18130-94400 Weight: 0.200000 Brand: Price: $ 46.91 |
Ratchet Set | 1 | $ 46.91 | ||
| 4 | 18151-94410 Friction Plate (NLA)
SKU: 18151-94410 Weight: 0.100000 Brand: Price: $ 9.26 |
Friction Plate (NLA) | 1 | $ 9.26 | ||
| 5 | 18142-95210 Recoil Spring (NLA)
SKU: 18142-95210 Weight: 0.100000 Brand: Price: $ 62.36 |
Recoil Spring (NLA) | 1 | $ 62.36 | ||
| 6 | 18191-94410 Guide Plate (NLA)
SKU: 18191-94410 Weight: 0.100000 Brand: Price: $ 26.94 |
Guide Plate (NLA) | 1 | $ 26.94 | ||
| 7 | 18210-93002 Grip Assembly
SKU: 18210-93002 Weight: 0.250000 Brand: Price: $ 16.38 |
Grip Assembly | 1 | $ 16.38 | ||
| 8 | 18280-94400 NSI Set (NLA)
SKU: 18280-94400 Weight: 0.100000 Brand: Price: $ 9.79 |
NSI Set (NLA) | 1 | $ 9.79 | ||
| 9 | 18290-94400 NSI Cable
SKU: 18290-94400 Weight: 0.100000 Brand: Price: $ 17.66 |
NSI Cable | 1 | $ 17.66 | ||
| 10 | 01580-06207 Bolt (NLA)
SKU: 01580-06207 Weight: 0.100000 Brand: Price: $ 1.47 |
Bolt (NLA) | 1 | $ 1.47 | ||
| 11 | 01580-06207 Bolt (NLA)
SKU: 01580-06207 Weight: 0.100000 Brand: Price: $ 1.47 |
Bolt (NLA) | 2 | $ 1.47 | ||
| 13 | 18711-94402-0ED Recoil Starter Starboard Brace (NLA)
SKU: 18711-94402-0ED Weight: 0.100000 Brand: Price: $ 39.13 |
Recoil Starter Starboard Brace (NLA) | 1 | $ 39.13 | ||
| 14 | 18721-94402-0ED Recoil Starter Port Brace
SKU: 18721-94402-0ED Weight: 0.250000 Brand: Price: $ 40.39 |
Recoil Starter Port Brace | 1 | $ 40.39 | ||
| 15 | 09180-08169 Spacer (NLA)
SKU: 09180-08169 Weight: 0.060000 Brand: Price: $ 3.24 |
Spacer (NLA) | 3 | $ 3.24 | ||
| 16 | 09320-12059 Cushion
SKU: 09320-12059 Weight: 0.060000 Brand: Price: $ 3.00 |
Cushion | 6 | $ 3.00 | ||
| 17 | 09160-08054 Washer
SKU: 09160-08054 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 3 | $ 1.44 | ||
| 18 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 3 | $ 3.54 | ||
| 19 | 02162-06257 SCREW
SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW | 4 | $ 1.49 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
