Suzuki DT 40 Parts Listings 1986 to 1991

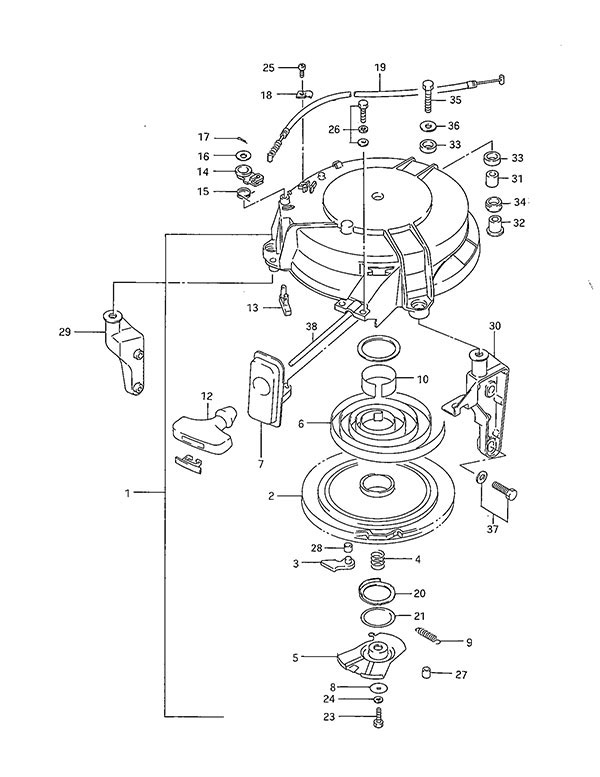

Fig. 9 - Recoil Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 18100-94430 Recoil Starter Assembly
SKU: 18100-94430 Weight: 5.000000 Brand: Price: $ 542.30 |
Recoil Starter Assembly | 1 | $ 542.30 | 1986 to 1990 Requires Ref# 38 | |
| 1-2 | 18100-94430 Recoil Starter Assembly
SKU: 18100-94430 Weight: 5.000000 Brand: Price: $ 542.30 |
Recoil Starter Assembly | 1 | $ 542.30 | 1991 | |
| 2 | 18121-95200 Reel (NLA)
SKU: 18121-95200 Weight: 0.100000 Brand: Price: $ 44.91 |
Reel (NLA) | 1 | $ 44.91 | ||
| 3 | 18130-95200 Ratchet (NLA)
SKU: 18130-95200 Weight: 0.100000 Brand: Price: $ 9.01 |
Ratchet (NLA) | 1 | $ 9.01 | ||
| 4 | 18153-95200 Friction Spring (NLA)
SKU: 18153-95200 Weight: 0.100000 Brand: Price: $ 0.72 |
Friction Spring (NLA) | 1 | $ 0.72 | ||
| 5-1 | 18150-95200 Friction Plate (NLA)
SKU: 18150-95200 Weight: 0.100000 Brand: Price: $ 13.49 |
Friction Plate (NLA) | 1 | $ 13.49 | 1986 to 1990 Requires Ref# 9 | |
| 5-2 | 18150-95200 Friction Plate (NLA)
SKU: 18150-95200 Weight: 0.100000 Brand: Price: $ 13.49 |
Friction Plate (NLA) | 1 | $ 13.49 | 1991 | |
| 6 | 18142-95210 Recoil Spring (NLA)
SKU: 18142-95210 Weight: 0.100000 Brand: Price: $ 62.36 |
Recoil Spring (NLA) | 1 | $ 62.36 | ||
| 7-1 | 18191-94400 Guide Plate (NLA)
SKU: 18191-94400 Weight: 0.100000 Brand: Price: $ 20.08 |
Guide Plate (NLA) | 1 | $ 20.08 | 1986 to 1990 | |
| 7-2 | 18191-94410 Guide Plate (NLA)
SKU: 18191-94410 Weight: 0.100000 Brand: Price: $ 26.94 |
Guide Plate (NLA) | 1 | $ 26.94 | 1991 | |
| 8 | 18335-93000 Thrust Washer (NLA)
SKU: 18335-93000 Weight: 0.060000 Brand: Price: $ 2.06 |
Thrust Washer (NLA) | 1 | $ 2.06 | ||
| 9 | 18155-95203 Return Spring (NLA)
SKU: 18155-95203 Weight: 0.100000 Brand: Price: $ 2.30 |
Return Spring (NLA) | 1 | $ 2.30 | ||
| 10 | 18124-95210 Bushing (NLA)
SKU: 18124-95210 Weight: 0.100000 Brand: Price: $ 2.87 |
Bushing (NLA) | 1 | $ 2.87 | ||
| 12 | 18210-93002 Grip Assembly
SKU: 18210-93002 Weight: 0.250000 Brand: Price: $ 16.38 |
Grip Assembly | 1 | $ 16.38 | ||
| 13 | 18281-96300 Stopper Reel
SKU: 18281-96300 Weight: 0.100000 Brand: Price: $ 4.96 |
Stopper Reel | 1 | $ 4.96 | ||
| 14 | 18282-96300 Arm Stopper (NLA)
SKU: 18282-96300 Weight: 0.125000 Brand: Price: $ 2.84 |
Arm Stopper (NLA) | 1 | $ 2.84 | ||
| 15 | 18284-96300 Spring Stopper (NLA)
SKU: 18284-96300 Weight: 0.060000 Brand: Price: $ 2.84 |
Spring Stopper (NLA) | 1 | $ 2.84 | ||
| 16 | 18335-96300 Washer (NLA)
SKU: 18335-96300 Weight: 0.060000 Brand: Price: $ 0.79 |
Washer (NLA) | 1 | $ 0.79 | ||
| 17 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 1 | $ 1.40 | ||
| 18 | 18291-96300 Cable Holder (NLA)
SKU: 18291-96300 Weight: 0.100000 Brand: Price: $ 2.62 |
Cable Holder (NLA) | 1 | $ 2.62 | ||
| 16 | 18290-94400 NSI Cable
SKU: 18290-94400 Weight: 0.100000 Brand: Price: $ 17.66 |
NSI Cable | 1 | $ 17.66 | ||
| 20 | 18157-95200 Washer (NLA)
SKU: 18157-95200 Weight: 0.100000 Brand: Price: $ 3.37 |
Washer (NLA) | 1 | $ 3.37 | ||
| 21 | 18127-95200 Circlip (NLA)
SKU: 18127-95200 Weight: 0.100000 Brand: Price: $ 4.89 |
Circlip (NLA) | 1 | $ 4.89 | ||
| 23 | 01500-06207 BOLT
SKU: 01500-06207 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | ||
| 24 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 3 | $ 1.85 | ||
| 25 | 02112-05107 5 X 10 CROSS SC
SKU: 02112-05107 Weight: 0.060000 Brand: Price: $ 1.44 |
5 X 10 CROSS SC | 1 | $ 1.44 | ||
| 26 | 01580-06207 Bolt (NLA)
SKU: 01580-06207 Weight: 0.100000 Brand: Price: $ 1.47 |
Bolt (NLA) | 2 | $ 1.47 | ||
| 27 | 18158-94400 Spring Stopper Collar (NLA)
SKU: 18158-94400 Weight: 0.100000 Brand: Price: $ 0.87 |
Spring Stopper Collar (NLA) | 1 | $ 0.87 | 1991 | |
| 28 | 18133-95210 Bushing (NLA)
SKU: 18133-95210 Weight: 0.100000 Brand: Price: $ 0.56 |
Bushing (NLA) | 1 | $ 0.56 | ||
| 29 | 18711-94402-0ED Recoil Starter Starboard Brace (NLA)
SKU: 18711-94402-0ED Weight: 0.100000 Brand: Price: $ 39.13 |
Recoil Starter Starboard Brace (NLA) | 1 | $ 39.13 | ||
| 30 | 18721-94402-0ED Recoil Starter Port Brace
SKU: 18721-94402-0ED Weight: 0.250000 Brand: Price: $ 40.39 |
Recoil Starter Port Brace | 1 | $ 40.39 | ||
| 31 | 09180-08203 Spacer (NLA)
SKU: 09180-08203 Weight: 0.125000 Brand: Price: $ 2.80 |
Spacer (NLA) | 3 | $ 2.80 | 1986 to 1990 | |
| 32 | 09180-08169 Spacer (NLA)
SKU: 09180-08169 Weight: 0.060000 Brand: Price: $ 3.24 |
Spacer (NLA) | 3 | $ 3.24 | 1991 | |
| 33 | 09320-12059 Cushion
SKU: 09320-12059 Weight: 0.060000 Brand: Price: $ 3.00 |
Cushion | 6 | $ 3.00 | 1986 to 1990 | |
| 34 | 09320-12059 Cushion
SKU: 09320-12059 Weight: 0.060000 Brand: Price: $ 3.00 |
Cushion | 6 | $ 3.00 | 1991 | |
| 36 | 09160-08054 Washer
SKU: 09160-08054 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 3 | $ 1.44 | ||
| 37 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 38 | 61622-95500 Recoil Starter Seal
SKU: 61622-95500 Weight: 0.125000 Brand: Price: $ 10.05 |
Recoil Starter Seal | 1 | $ 10.05 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
