Suzuki DT 40 Parts Listings 1986 to 1998

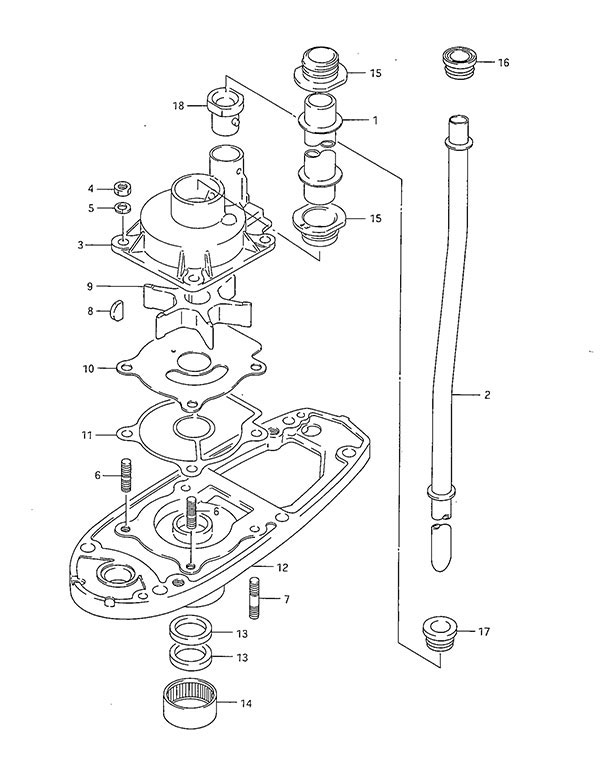

Fig. 8 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 17431-92L10 Water Pump Seal Tube (S)
SKU: 17431-92L10 Weight: 0.200000 Brand: Price: $ 6.43 |
Water Pump Seal Tube (S) | 1 | $ 6.43 | w/Transom (S) | |
| 1-2 | 17431-92L20 Water Pump Seal Tube (L)
SKU: 17431-92L20 Weight: 0.200000 Brand: Price: $ 14.56 |
Water Pump Seal Tube (L) | 1 | $ 14.56 | Type: L | |
| 2-1 | 17561-92L50 Water Tube (S)
SKU: 17561-92L50 Weight: 1.000000 Brand: Price: $ 24.77 |
Water Tube (S) | 1 | $ 24.77 | w/Transom (S) | |
| 2-2 | 17561-92L60 Water Tube (L)
SKU: 17561-92L60 Weight: 1.000000 Brand: Price: $ 27.97 |
Water Tube (L) | 1 | $ 27.97 | Type: L | |
| 3 | 17411-94421 Water Pump Case
SKU: 17411-94421 Weight: 0.800000 Brand: Price: $ 96.82 |
Water Pump Case | 1 | $ 96.82 | ||
| 4 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 4 | $ 1.82 | ||
| 5 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 4 | $ 1.49 | ||
| 6 | 09108-06060 Stud Bolt (6x18)
SKU: 09108-06060 Weight: 0.060000 Brand: Price: $ 1.74 |
Stud Bolt (6x18) | 2 | $ 1.74 | ||
| 7-1 | 09108-06069 Stud Bolt (6x30)
SKU: 09108-06069 Weight: 0.060000 Brand: Price: $ 3.19 |
Stud Bolt (6x30) | 1 | $ 3.19 | 1986 to 1996 | |
| 7-2 | 09108-06061 Stud Bolt (6x35)
SKU: 09108-06061 Weight: 0.060000 Brand: Price: $ 4.53 |
Stud Bolt (6x35) | 2 | $ 4.53 | 1997 to 1998 | |
| 8 | 09420-04006 Impeller Key
SKU: 09420-04006 Weight: 0.060000 Brand: Price: $ 3.93 |
Impeller Key | 1 | $ 3.93 | ||
| 9 | 17461-96312 Water Pump Impeller
SKU: 17461-96312 Weight: 0.060000 Brand: Price: $ 30.31 |
Water Pump Impeller | 1 | $ 30.31 | ||
| 10 | 17471-94401 Water Pump Plate
SKU: 17471-94401 Weight: 0.100000 Brand: Price: $ 8.73 |
Water Pump Plate | 1 | $ 8.73 | ||
| 11 | 17472-96304 Water Pump Plate Gasket
SKU: 17472-96304 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Pump Plate Gasket | 1 | $ 2.28 | ||
| 12 | 56130-94430-0ED Drive Shaft Bearing Housing (NLA)
SKU: 56130-94430-0ED Weight: 1.300000 Brand: Price: $ 162.80 |
Drive Shaft Bearing Housing (NLA) | 1 | $ 162.80 | ||
| 13 | 09282-17005 Oil Seal (16x32x6)
SKU: 09282-17005 Weight: 0.060000 Brand: Price: $ 6.28 |
Oil Seal (16x32x6) | 2 | $ 6.28 | ||
| 14 | 09263-25025 Bearing (25x33x15)
SKU: 09263-25025 Weight: 0.250000 Brand: Price: $ 25.46 |
Bearing (25x33x15) | 1 | $ 25.46 | ||
| 15 | 17432-96301 Water Tube Grommet
SKU: 17432-96301 Weight: 0.060000 Brand: Price: $ 2.38 |
Water Tube Grommet | 2 | $ 2.38 | ||
| 16 | 17563-94400 Water Tube Grommet
SKU: 17563-94400 Weight: 0.060000 Brand: Price: $ 3.93 |
Water Tube Grommet | 1 | $ 3.93 | Upper | |
| 17 | 17565-94400 Water Tube Grommet
SKU: 17565-94400 Weight: 0.060000 Brand: Price: $ 4.67 |
Water Tube Grommet | 1 | $ 4.67 | Middle | |
| 18 | 17566-94401 Water Tube Grommet
SKU: 17566-94401 Weight: 0.060000 Brand: Price: $ 2.53 |
Water Tube Grommet | 1 | $ 2.53 | Lower | |
| 19 | 17400-96354 Water Pump Repair Kit DF25-50 DT20-40c
SKU: 17400-96354 Weight: 0.250000 Brand: Price: $ 33.32 |
Water Pump Repair Kit DF25-50 DT20-40c | 1 | $ 33.32 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
