Suzuki DT 40 Parts Listings 1986 to 1994

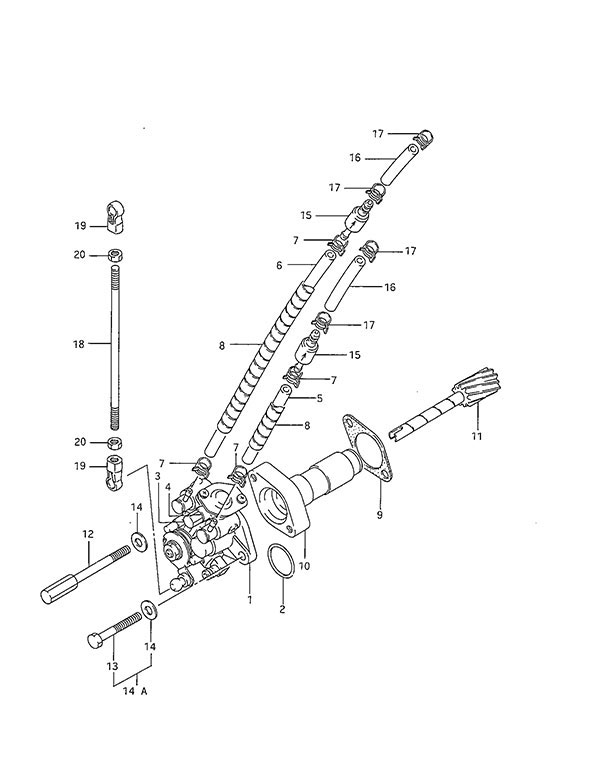

Fig. 7 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16100-94410 Oil Pump Assembly (NLA)
SKU: 16100-94410 Weight: 1.000000 Brand: Price: $ 238.42 |
Oil Pump Assembly (NLA) | 1 | $ 238.42 | ||
| 3 | 16191-94400 Bleed Screw
SKU: 16191-94400 Weight: 0.100000 Brand: Price: $ 4.96 |
Bleed Screw | 1 | $ 4.96 | ||
| 4 | 16192-94400 Bleed Gasket (NLA)
SKU: 16192-94400 Weight: 0.100000 Brand: Price: $ 1.08 |
Bleed Gasket (NLA) | 1 | $ 1.08 | ||
| 5-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | 1986 to 1990 L:600->75 | |
| 5-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | 1991 to 1994 L:600->75 | |
| 6-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | 1986 to 1990 L:600->175 | |
| 6-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | 1991 to 1994 L:600->175 | |
| 7 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 4 | $ 2.12 | ||
| 8 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 2 | $ 8.45 | ||
| 9 | 16731-95310 Oil Pump Gasket (NLA)
SKU: 16731-95310 Weight: 0.060000 Brand: Price: $ 2.36 |
Oil Pump Gasket (NLA) | 1 | $ 2.36 | ||
| 10 | 16340-94420 Oil Pump Retainer (NLA)
SKU: 16340-94420 Weight: 0.100000 Brand: Price: $ 30.34 |
Oil Pump Retainer (NLA) | 1 | $ 30.34 | ||
| 11 | 16331-94411 Oil Pump Driven Gear (NLA)
SKU: 16331-94411 Weight: 0.100000 Brand: Price: $ 31.71 |
Oil Pump Driven Gear (NLA) | 1 | $ 31.71 | ||
| 12 | 09119-05013 Bolt (NLA)
SKU: 09119-05013 Weight: 0.100000 Brand: Price: $ 2.58 |
Bolt (NLA) | 1 | $ 2.58 | ||
| 13 | 01500-05307 Bolt (NLA)
SKU: 01500-05307 Weight: 0.200000 Brand: Price: $ 1.76 |
Bolt (NLA) | 1 | $ 1.76 | ||
| 14 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 2 | $ 1.85 | ||
| 14A | 01550-05307 Bolt (NLA)
SKU: 01550-05307 Weight: 0.100000 Brand: Price: $ 1.25 |
Bolt (NLA) | 1 | $ 1.25 | ||
| 15 | 16710-92E01 Oil Check Valve (Single)
SKU: 16710-92E01 Weight: 0.060000 Brand: Price: $ 19.39 |
Oil Check Valve (Single) | 2 | $ 19.39 | ||
| 16-1 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 2 | $ 9.26 | 1986 to 1990 L:2000->25 | |
| 16-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | 1991 to 1994 L:600->25 | |
| 17-1 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 4 | $ 2.02 | 1986 to 1990 | |
| 17-2 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | 1991 to 1994 | |
| 18 | 16411-94400 Rod (NLA)
SKU: 16411-94400 Weight: 0.100000 Brand: Price: $ 3.99 |
Rod (NLA) | 1 | $ 3.99 | ||
| 19 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 20 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
