Suzuki DT 40 Parts Listings 1995 to 1998

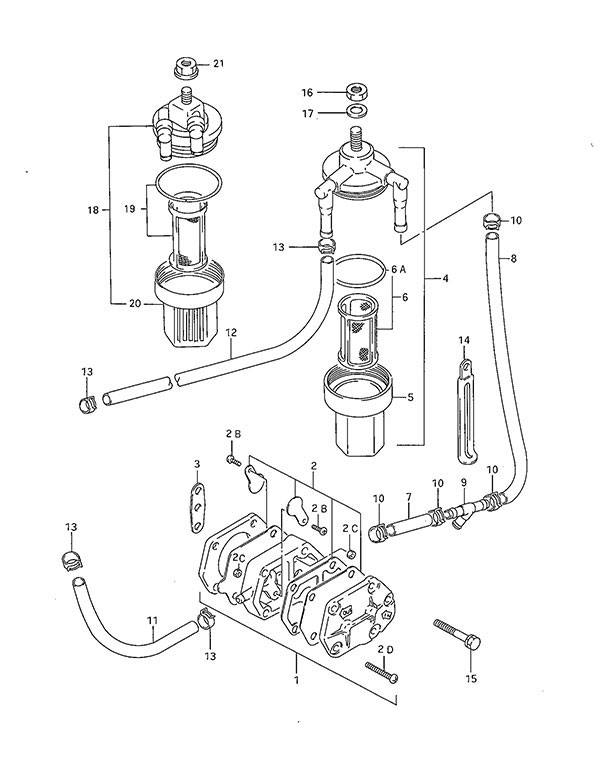

Fig. 6A - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-94312 Fuel Pump Assembly
SKU: 15100-94312 Weight: 0.400000 Brand: Price: $ 111.84 |
Fuel Pump Assembly | 1 | $ 111.84 | ||
| 2 | 15170-94320 Fuel Pump Diaphragm Set*
SKU: 15170-94320 Weight: 0.060000 Brand: Price: $ 22.23 |
Fuel Pump Diaphragm Set* | 1 | $ 22.23 | ||
| 2B | 15183-94301 Fuel Pump Screw
SKU: 15183-94301 Weight: 0.060000 Brand: Price: $ 1.74 |
Fuel Pump Screw | 2 | $ 1.74 | ||
| 2C | 15186-94300 Nut
SKU: 15186-94300 Weight: 0.060000 Brand: Price: $ 1.62 |
Nut | 2 | $ 1.62 | ||
| 2D | 15851-94300 Fuel Pump Screen
SKU: 15851-94300 Weight: 0.060000 Brand: Price: $ 2.75 |
Fuel Pump Screen | 3 | $ 2.75 | ||
| 3 | 15321-99710 Fuel Pump Gasket
SKU: 15321-99710 Weight: 0.060000 Brand: Price: $ 3.70 |
Fuel Pump Gasket | 1 | $ 3.70 | ||
| 4 | 15410-94401 Fuel Filter
SKU: 15410-94401 Weight: 0.140000 Brand: Price: $ 22.88 |
Fuel Filter | 1 | $ 22.88 | 1995 to 1996 | |
| 5 | 15413-93400 Fuel Strainer Cup (NLA)
SKU: 15413-93400 Weight: 0.060000 Brand: Price: $ 5.82 |
Fuel Strainer Cup (NLA) | 1 | $ 5.82 | 1995 to 1996 | |
| 6 | 15430-93411 Fuel Filter Strainer Set
SKU: 15430-93411 Weight: 0.060000 Brand: Price: $ 11.05 |
Fuel Filter Strainer Set | 1 | $ 11.05 | 1995 to 1996 | |
| 6A | 15415-93400 Fuel Strainer O-Ring
SKU: 15415-93400 Weight: 0.060000 Brand: Price: $ 2.18 |
Fuel Strainer O-Ring | 1 | $ 2.18 | 1995 to 1996 | |
| 7 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to Pump L:600->40 | |
| 8 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Filter to 3 Way L:600->180 | |
| 9 | 09367-06005 3 Way (NLA)
SKU: 09367-06005 Weight: 0.060000 Brand: Price: $ 3.64 |
3 Way (NLA) | 1 | $ 3.64 | ||
| 10 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | ||
| 11 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Pump to Carb L:600->110 | |
| 12 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Connector to Filter L:^00->400 | |
| 13 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | ||
| 14 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 15 | 01570-06407 Bolt (NLA)
SKU: 01570-06407 Weight: 0.100000 Brand: Price: $ 1.62 |
Bolt (NLA) | 2 | $ 1.62 | ||
| 16 | 08310-00087 Nut (8mm)
SKU: 08310-00087 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut (8mm) | 1 | $ 1.85 | ||
| 17 | 08322-01087 Washer
SKU: 08322-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | ||
| 18 | 15410-94401 Fuel Filter
SKU: 15410-94401 Weight: 0.140000 Brand: Price: $ 22.88 |
Fuel Filter | 1 | $ 22.88 | 1997 to 1998 | |
| 19 | 15430-87D10 Fuel Filter Strainer Set
SKU: 15430-87D10 Weight: 0.060000 Brand: Price: $ 12.95 |
Fuel Filter Strainer Set | 1 | $ 12.95 | 1997 to 1998 | |
| 20 | 15413-87D10 Fuel Strainer Cup
SKU: 15413-87D10 Weight: 0.060000 Brand: Price: $ 9.10 |
Fuel Strainer Cup | 1 | $ 9.10 | 1997 to 1998 | |
| 21 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | 1997 to 1998 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
