Suzuki DT 40 Parts Listings 1986 to 1998

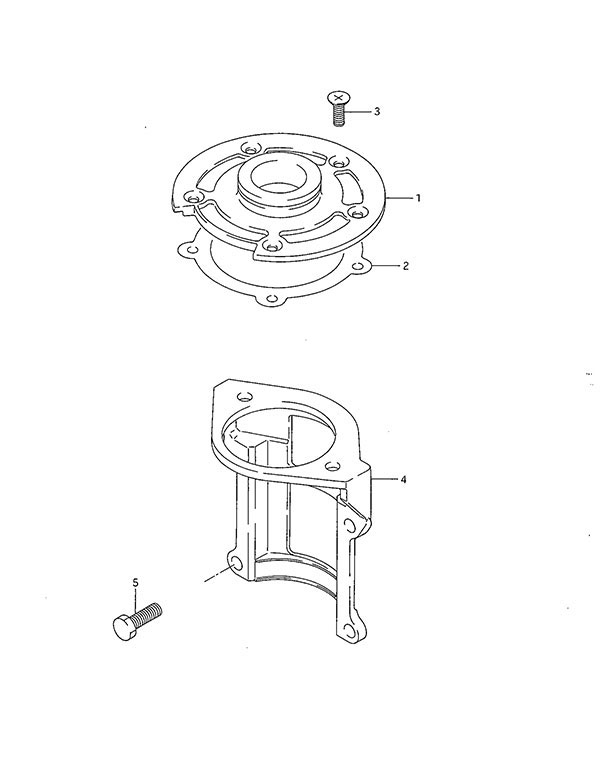

Fig. 5 - Oil Seal Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11411-94400 Upper Oil Seal Housing (NLA)
SKU: 11411-94400 Weight: 0.250000 Brand: Price: $ 40.62 |
Upper Oil Seal Housing (NLA) | 1 | $ 40.62 | ||
| 2 | 11413-94411 Upper Oil Seal Housing Gasket
SKU: 11413-94411 Weight: 0.125000 Brand: Price: $ 9.27 |
Upper Oil Seal Housing Gasket | 1 | $ 9.27 | ||
| 3-1 | 09126-06008 Screw (6x16)
SKU: 09126-06008 Weight: 0.060000 Brand: Price: $ 2.15 |
Screw (6x16) | 1 | $ 2.15 | 1986 to 1993 | |
| 3-2 | 02122-06167 SCREW 6X16
SKU: 02122-06167 Weight: 0.200000 Brand: Price: $ 1.44 |
SCREW 6X16 | 5 | $ 1.44 | 1998 | |
| 4 | 31911-94402-0ED Starter Motor Bracket (NLA)
SKU: 31911-94402-0ED Weight: 1.000000 Brand: Price: $ 42.33 |
Starter Motor Bracket (NLA) | 1 | $ 42.33 | ||
| 5 | 01580-08257 BOLT
SKU: 01580-08257 Weight: 0.060000 Brand: Price: $ 3.24 |
BOLT | 4 | $ 3.24 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
