Suzuki DT 40 Parts Listings 1986 to 1998

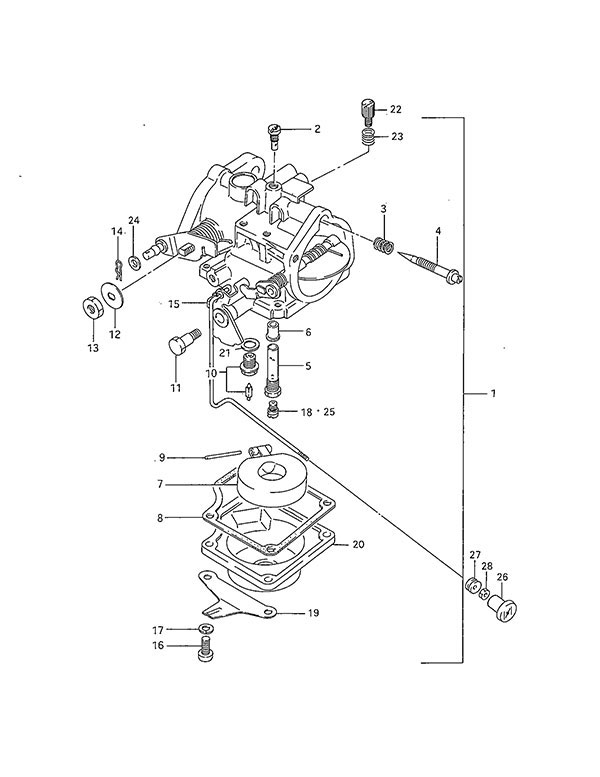

Fig. 4 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 13200-944F0 Carburetor Assembly
SKU: 13200-944F0 Weight: 2.000000 Brand: Price: $ 898.36 |
Carburetor Assembly | 1 | $ 898.36 | 1986 to 1997 | |
| 1-2 | 13200-944H0 Carburetor Assembly
SKU: 13200-944H0 Weight: 1.000000 Brand: Price: $ 613.73 |
Carburetor Assembly | 1 | $ 613.73 | 1998 | |
| 2-1 | 09492-77001 Pilot Jet #77.5
SKU: 09492-77001 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #77.5 | 1 | $ 10.00 | 1986 to 1997 | |
| 2-2 | 09492-72004 Pilot Jet #72.5
SKU: 09492-72004 Weight: 0.062500 Brand: Price: $ 16.18 |
Pilot Jet #72.5 | 1 | $ 16.18 | 1998 | |
| 3-1 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 1 | $ 4.90 | 1986 to 1997 | |
| 3-2 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 1 | $ 4.61 | 1998 | |
| 4-1 | 13269-95210 Pilot Air Screw
SKU: 13269-95210 Weight: 0.060000 Brand: Price: $ 8.28 |
Pilot Air Screw | 1 | $ 8.28 | 1986 to 1997 | |
| 4-2 | 13269-98100 Pilot Air Screw
SKU: 13269-98100 Weight: 0.060000 Brand: Price: $ 6.87 |
Pilot Air Screw | 1 | $ 6.87 | 1998 | |
| 5 | 13236-94410 Main Nozzle (NLA)
SKU: 13236-94410 Weight: 0.060000 Brand: Price: $ 20.09 |
Main Nozzle (NLA) | 1 | $ 20.09 | ||
| 6 | 13237-94400 Upper Nozzle
SKU: 13237-94400 Weight: 0.060000 Brand: Price: $ 3.47 |
Upper Nozzle | 1 | $ 3.47 | ||
| 7 | 13250-93012 Carburetor Float
SKU: 13250-93012 Weight: 0.060000 Brand: Price: $ 20.17 |
Carburetor Float | 1 | $ 20.17 | ||
| 8 | 13251-95220 Float Chamber Gasket
SKU: 13251-95220 Weight: 0.060000 Brand: Price: $ 8.56 |
Float Chamber Gasket | 1 | $ 8.56 | ||
| 9 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 1 | $ 3.28 | ||
| 10-1 | 13370-28110 Needle Valve Assembly
SKU: 13370-28110 Weight: 0.060000 Brand: Price: $ 49.35 |
Needle Valve Assembly | 1 | $ 49.35 | 1986 to 1992 | |
| 10-2 | 13370-97E20 Needle Valve Assembly
SKU: 13370-97E20 Weight: 0.100000 Brand: Price: $ 49.72 |
Needle Valve Assembly | 1 | $ 49.72 | 1993 to 1998 | |
| 11 | 13613-94300 Lever Bolt
SKU: 13613-94300 Weight: 0.060000 Brand: Price: $ 8.19 |
Lever Bolt | 1 | $ 8.19 | ||
| 12 | 13606-93310 Washer (NLA)
SKU: 13606-93310 Weight: 0.100000 Brand: Price: $ 0.65 |
Washer (NLA) | 1 | $ 0.65 | ||
| 13 | 13607-93310 Nut (NLA)
SKU: 13607-93310 Weight: 0.100000 Brand: Price: $ 1.31 |
Nut (NLA) | 1 | $ 1.31 | ||
| 14 | 13464-96350 Spring Pin
SKU: 13464-96350 Weight: 0.060000 Brand: Price: $ 1.52 |
Spring Pin | 2 | $ 1.52 | ||
| 15 | 13580-94400 Lever Assembly
SKU: 13580-94400 Weight: 0.100000 Brand: Price: $ 54.75 |
Lever Assembly | 1 | $ 54.75 | ||
| 16 | 02112-05167 SCREW
SKU: 02112-05167 Weight: 0.060000 Brand: Price: $ 1.97 |
SCREW | 4 | $ 1.97 | ||
| 17 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 4 | $ 1.85 | ||
| 18-1 | 09491-38007 Main Jet #190
SKU: 09491-38007 Weight: 0.060000 Brand: Price: $ 7.66 |
Main Jet #190 | 1 | $ 7.66 | 1986 to 1997 | |
| 18-2 | 09491-35011 Main Jet #177.5 (NLA)
SKU: 09491-35011 Weight: 0.100000 Brand: Price: $ 8.44 |
Main Jet #177.5 (NLA) | 1 | $ 8.44 | 1998 | |
| 19 | 13426-95211 Plate Spring (NLA)
SKU: 13426-95211 Weight: 0.100000 Brand: Price: $ 2.97 |
Plate Spring (NLA) | 1 | $ 2.97 | ||
| 20 | 13245-94400 Float Chamber
SKU: 13245-94400 Weight: 0.200000 Brand: Price: $ 35.12 |
Float Chamber | 1 | $ 35.12 | ||
| 21 | 13392-58600 Valve Seat Gasket
SKU: 13392-58600 Weight: 0.060000 Brand: Price: $ 1.91 |
Valve Seat Gasket | 1 | $ 1.91 | ||
| 22 | 13534-94430 Screw (NLA)
SKU: 13534-94430 Weight: 0.100000 Brand: Price: $ 3.20 |
Screw (NLA) | 1 | $ 3.20 | ||
| 23 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 1 | $ 4.61 | ||
| 24 | 13432-33110 Washer
SKU: 13432-33110 Weight: 0.060000 Brand: Price: $ 3.98 |
Washer | 1 | $ 3.98 | ||
| 25 | 09493-22005 Pilot Air Jet
SKU: 09493-22005 Weight: 0.060000 Brand: Price: $ 15.21 |
Pilot Air Jet | 1 | $ 15.21 | ||
| 26 | 13631-93501 Starter Knob
SKU: 13631-93501 Weight: 0.060000 Brand: Price: $ 4.52 |
Starter Knob | 1 | $ 4.52 | ||
| 27 | 09320-04013 Bushing
SKU: 09320-04013 Weight: 0.060000 Brand: Price: $ 1.60 |
Bushing | 1 | $ 1.60 | ||
| 29 | 13910-94400 Carburetor Repair Kit
SKU: 13910-94400 Weight: 0.080000 Brand: Price: $ 34.42 |
Carburetor Repair Kit | 1 | $ 34.42 | Opt: Not Shown | |
| 28 | 09140-04007 Nut
SKU: 09140-04007 Weight: 0.060000 Brand: Price: $ 2.28 |
Nut | 1 | $ 2.28 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
