Suzuki DT 40 Parts Listings 1986 to 1998

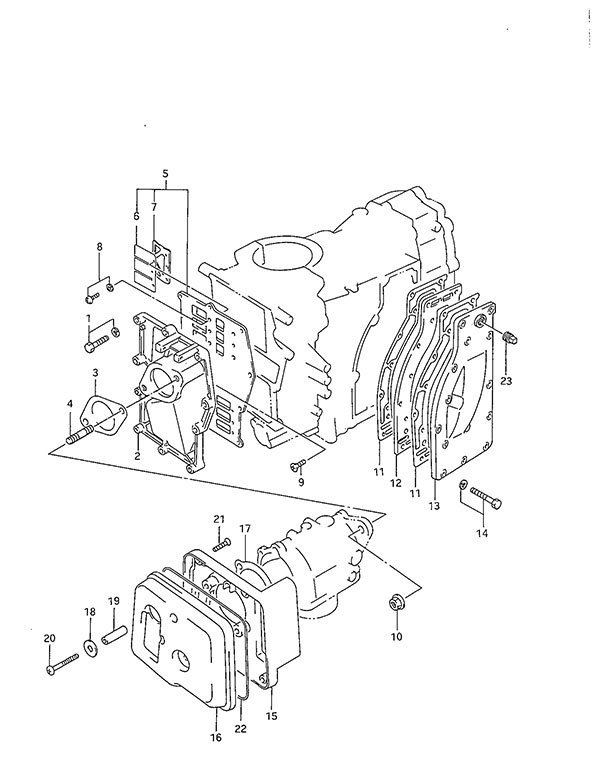

Fig. 3 - Inlet Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 10 | $ 2.74 | ||
| 2 | 13111-94400-0ED Inlet Case (NLA)
SKU: 13111-94400-0ED Weight: 1.000000 Brand: Price: $ 54.70 |
Inlet Case (NLA) | 1 | $ 54.70 | ||
| 3 | 13125-95210 Carburetor Gasket
SKU: 13125-95210 Weight: 0.060000 Brand: Price: $ 4.33 |
Carburetor Gasket | 1 | $ 4.33 | ||
| 4 | 01411-08207 Stud Bolt (NLA)
SKU: 01411-08207 Weight: 0.100000 Brand: Price: $ 2.03 |
Stud Bolt (NLA) | 2 | $ 2.03 | ||
| 5 | 13150-94402 Reed Valve Assembly
SKU: 13150-94402 Weight: 0.650000 Brand: Price: $ 154.27 |
Reed Valve Assembly | 1 | $ 154.27 | ||
| 6 | 13153-94400 Reed Valve
SKU: 13153-94400 Weight: 0.100000 Brand: Price: $ 11.89 |
Reed Valve | 4 | $ 11.89 | ||
| 7 | 13152-94401 Reed Valve Stopper (NLA)
SKU: 13152-94401 Weight: 0.100000 Brand: Price: $ 5.18 |
Reed Valve Stopper (NLA) | 4 | $ 5.18 | ||
| 8 | 02112-3306A SCREW
SKU: 02112-3306A Weight: 0.200000 Brand: Price: $ 1.99 |
SCREW | 12 | $ 1.99 | ||
| 9-1 | 09126-06008 Screw (6x16)
SKU: 09126-06008 Weight: 0.060000 Brand: Price: $ 2.15 |
Screw (6x16) | 1 | $ 2.15 | 1986 to 1993 | |
| 9-2 | 02122-0616A SCREW
SKU: 02122-0616A Weight: 0.062500 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | 1994 to 1998 | |
| 10 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 2 | $ 2.27 | ||
| 11 | 14151-94412 Exhaust Cover Gasket
SKU: 14151-94412 Weight: 0.080000 Brand: Price: $ 17.15 |
Exhaust Cover Gasket | 2 | $ 17.15 | ||
| 12 | 14131-92L10 Exhaust Plate
SKU: 14131-92L10 Weight: 0.500000 Brand: Price: $ 45.24 |
Exhaust Plate | 1 | $ 45.24 | ||
| 13 | 14141-92L01 Exhaust Cover
SKU: 14141-92L01 Weight: 0.100000 Brand: Price: $ 55.90 |
Exhaust Cover | 1 | $ 55.90 | ||
| 14 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 16 | $ 2.74 | ||
| 15 | 13811-92L10 Silencer Case
SKU: 13811-92L10 Weight: 0.500000 Brand: Price: $ 38.58 |
Silencer Case | 1 | $ 38.58 | ||
| 16 | 13812-92L00 Silencer Cover
SKU: 13812-92L00 Weight: 0.500000 Brand: Price: $ 50.60 |
Silencer Cover | 1 | $ 50.60 | ||
| 17 | 13855-95210 Silencer Gasket
SKU: 13855-95210 Weight: 0.060000 Brand: Price: $ 3.99 |
Silencer Gasket | 1 | $ 3.99 | ||
| 18 | 09160-06066 Washer (6.5x20x1.6)
SKU: 09160-06066 Weight: 0.250000 Brand: Price: $ 1.91 |
Washer (6.5x20x1.6) | 2 | $ 1.91 | ||
| 19 | 09180-06254 Spacer
SKU: 09180-06254 Weight: 0.060000 Brand: Price: $ 3.45 |
Spacer | 2 | $ 3.45 | ||
| 20 | 09125-06089 Screw
SKU: 09125-06089 Weight: 0.100000 Brand: Price: $ 2.59 |
Screw | 2 | $ 2.59 | ||
| 21 | 03222-0520B SCREW
SKU: 03222-0520B Weight: 0.060000 Brand: Price: $ 2.72 |
SCREW | 5 | $ 2.72 | ||
| 22 | 09280-63005 O-Ring
SKU: 09280-63005 Weight: 0.060000 Brand: Price: $ 2.16 |
O-Ring | 1 | $ 2.16 | ||
| 23 | 09246-04005 Plug
SKU: 09246-04005 Weight: 0.060000 Brand: Price: $ 4.11 |
Plug | 1 | $ 4.11 | S/N 611483 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
