Suzuki DT 40 Parts Listings 1986 to 1998

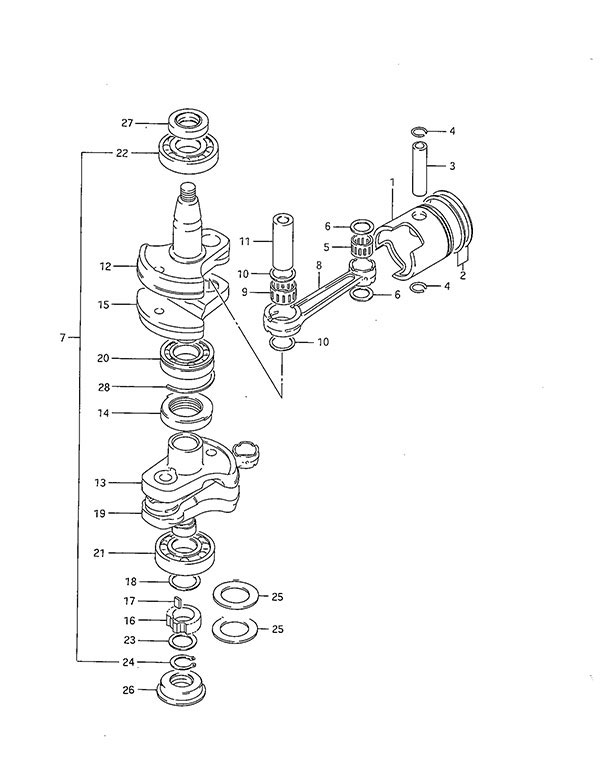

Fig. 2 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 12110-94400 Piston
SKU: 12110-94400 Weight: 1.000000 Brand: Price: $ 90.49 |
Piston | 2 | $ 90.49 | ||
| 1-2 | 12100-94400-025 Piston & Ring Set (OS:0.25)
SKU: 12100-94400-025 Weight: 1.000000 Brand: Price: $ 122.97 |
Piston & Ring Set (OS:0.25) | 2 | $ 122.97 | ||
| 1-3 | 12100-94400-050 Piston & Ring Set (OS:0.50)
SKU: 12100-94400-050 Weight: 1.000000 Brand: Price: $ 122.97 |
Piston & Ring Set (OS:0.50) | 2 | $ 122.97 | ||
| 2-1 | 12140-94400 Piston Ring Set
SKU: 12140-94400 Weight: 0.060000 Brand: Price: $ 32.09 |
Piston Ring Set | 2 | $ 32.09 | ||
| 2-2 | 12140-94400-025 Piston Ring Set (OS:0.25) (NLA)
SKU: 12140-94400-025 Weight: 0.100000 Brand: Price: $ 24.16 |
Piston Ring Set (OS:0.25) (NLA) | 2 | $ 24.16 | ||
| 2-3 | 12140-94400-050 Piston Ring Set (OS:0.50)
SKU: 12140-94400-050 Weight: 0.100000 Brand: Price: $ 32.09 |
Piston Ring Set (OS:0.50) | 2 | $ 32.09 | ||
| 3 | 12151-94400 Piston Pin
SKU: 12151-94400 Weight: 0.200000 Brand: Price: $ 15.99 |
Piston Pin | 2 | $ 15.99 | ||
| 4 | 09381-20003 Circlip
SKU: 09381-20003 Weight: 0.060000 Brand: Price: $ 1.99 |
Circlip | 4 | $ 1.99 | ||
| 5 | 09263-20072 Bearing (20x26x24)
SKU: 09263-20072 Weight: 0.080000 Brand: Price: $ 27.92 |
Bearing (20x26x24) | 2 | $ 27.92 | ||
| 6 | 09169-20006 Washer
SKU: 09169-20006 Weight: 0.060000 Brand: Price: $ 8.06 |
Washer | 4 | $ 8.06 | ||
| 7 | 12200-94490 Crankshaft Assembly (NLA)
SKU: 12200-94490 Weight: 50.000000 Brand: Price: $ 838.41 |
Crankshaft Assembly (NLA) | 1 | $ 838.41 | ||
| 8 | 12161-92L00 Connecting Rod
SKU: 12161-92L00 Weight: 1.000000 Brand: Price: $ 134.09 |
Connecting Rod | 2 | $ 134.09 | ||
| 9 | 09263-27005 Bearing (27x37x22)
SKU: 09263-27005 Weight: 0.250000 Brand: Price: $ 52.49 |
Bearing (27x37x22) | 2 | $ 52.49 | ||
| 10 | 09160-27008 Washer
SKU: 09160-27008 Weight: 0.060000 Brand: Price: $ 3.19 |
Washer | 4 | $ 3.19 | ||
| 11 | 12211-94410 Crank Pin (NLA)
SKU: 12211-94410 Weight: 0.100000 Brand: Price: $ 18.64 |
Crank Pin (NLA) | 2 | $ 18.64 | ||
| 12 | 12221-94412 Upper Crankshaft (NLA)
SKU: 12221-94412 Weight: 10.000000 Brand: Price: $ 112.51 |
Upper Crankshaft (NLA) | 1 | $ 112.51 | ||
| 13 | 12232-94412 Under Crankshaft Wheel (NLA)
SKU: 12232-94412 Weight: 10.000000 Brand: Price: $ 120.82 |
Under Crankshaft Wheel (NLA) | 1 | $ 120.82 | ||
| 14 | 09289-45L01 Oil Seal (45x72x12)
SKU: 09289-45L01 Weight: 0.060000 Brand: Price: $ 40.50 |
Oil Seal (45x72x12) | 1 | $ 40.50 | ||
| 15 | 12231-94413 Upper Crankshaft Wheel (NLA)
SKU: 12231-94413 Weight: 10.000000 Brand: Price: $ 120.82 |
Upper Crankshaft Wheel (NLA) | 1 | $ 120.82 | ||
| 16-1 | 16321-95301 Oil Pump Drive Gear (NLA)
SKU: 16321-95301 Weight: 0.100000 Brand: Price: $ 88.04 |
Oil Pump Drive Gear (NLA) | 1 | $ 88.04 | 1986 to 1994 | |
| 16-2 | 16321-95310 Oil Pump Drive Gear (NLA)
SKU: 16321-95310 Weight: 0.100000 Brand: Price: $ 57.47 |
Oil Pump Drive Gear (NLA) | 1 | $ 57.47 | 1995 to 1998 | |
| 17-1 | 09421-08001 Key
SKU: 09421-08001 Weight: 0.060000 Brand: Price: $ 2.86 |
Key | 1 | $ 2.86 | 1986 to 1994 | |
| 17-2 | 09421-08002 Key (NLA)
SKU: 09421-08002 Weight: 0.100000 Brand: Price: $ 2.38 |
Key (NLA) | 1 | $ 2.38 | 1995 to 1998 | |
| 18 | 09181-30212 Washer (NLA)
SKU: 09181-30212 Weight: 0.060000 Brand: Price: $ 2.67 |
Washer (NLA) | 1 | $ 2.67 | ||
| 19 | 12240-94432 Under Crankshaft (NLA)
SKU: 12240-94432 Weight: 10.000000 Brand: Price: $ 125.32 |
Under Crankshaft (NLA) | 1 | $ 125.32 | ||
| 20 | 09269-30012 Bearing (30x72x19)(NLA)
SKU: 09269-30012 Weight: 0.800000 Brand: Price: $ 101.66 |
Bearing (30x72x19)(NLA) | 1 | $ 101.66 | ||
| 21 | 09262-35L09 Bearing (35x72x17)
SKU: 09262-35L09 Weight: 0.700000 Brand: Price: $ 77.92 |
Bearing (35x72x17) | 1 | $ 77.92 | ||
| 22 | 09262-35053 Bearing (35x80x21)
SKU: 09262-35053 Weight: 1.100000 Brand: Price: $ 77.82 |
Bearing (35x80x21) | 1 | $ 77.82 | ||
| 23 | 09181-30167 Shim (1.00)
SKU: 09181-30167 Weight: 0.060000 Brand: Price: $ 3.18 |
Shim (1.00) | 1 | $ 3.18 | ||
| 24 | 08331-31309 CIRCLIP
SKU: 08331-31309 Weight: 0.100000 Brand: Price: $ 2.59 |
CIRCLIP | 1 | $ 2.59 | ||
| 25 | 08211-30385 Thrust Washer (2.50)
SKU: 08211-30385 Weight: 0.100000 Brand: Price: $ 3.68 |
Thrust Washer (2.50) | 2 | $ 3.68 | 1995 to 1998 | |
| 26 | 09283-30077 Oil Seal (30x55x8x)
SKU: 09283-30077 Weight: 0.060000 Brand: Price: $ 13.59 |
Oil Seal (30x55x8x) | 1 | $ 13.59 | ||
| 27 | 09283-35L01 Crankshaft Oil Seal
SKU: 09283-35L01 Weight: 0.060000 Brand: Price: $ 27.94 |
Crankshaft Oil Seal | 1 | $ 27.94 | ||
| 28 | 09390-72008 C Ring
SKU: 09390-72008 Weight: 0.060000 Brand: Price: $ 3.02 |
C Ring | 1 | $ 3.02 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
