Suzuki DT 40 Parts Listings 1986 to 1998

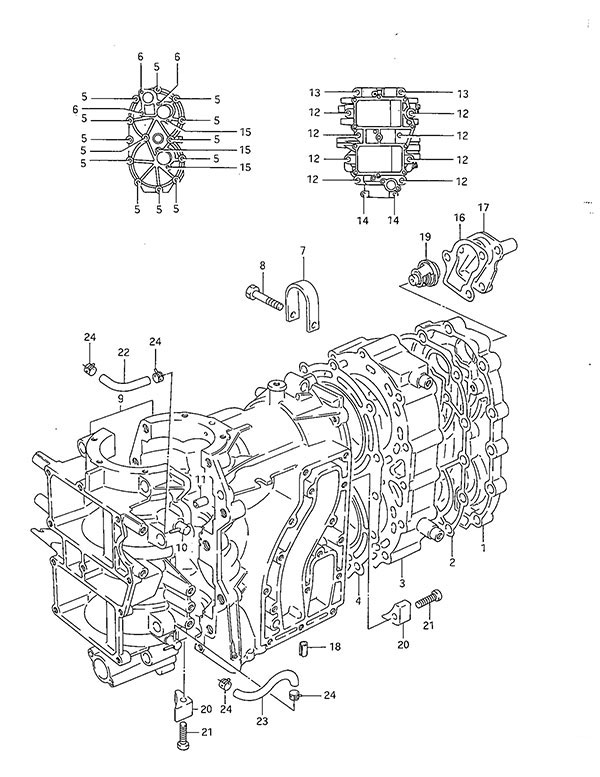

Fig. 1 - Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11161-94400-0ED Cylinder Head Cover
SKU: 11161-94400-0ED Weight: 0.100000 Brand: Price: $ 64.81 |
Cylinder Head Cover | 1 | $ 64.81 | ||
| 2 | 11162-92L00 Cylinder Head Cover Gasket
SKU: 11162-92L00 Weight: 0.060000 Brand: Price: $ 11.87 |
Cylinder Head Cover Gasket | 1 | $ 11.87 | ||
| 3 | 11111-94401-0ED Cylinder Head (NLA)
SKU: 11111-94401-0ED Weight: 3.600000 Brand: Price: $ 194.98 |
Cylinder Head (NLA) | 1 | $ 194.98 | ||
| 4 | 11141-94450 Cylinder Head Gasket
SKU: 11141-94450 Weight: 0.160000 Brand: Price: $ 30.23 |
Cylinder Head Gasket | 1 | $ 30.23 | ||
| 5 | 01560-08757 BOLT
SKU: 01560-08757 Weight: 0.080000 Brand: Price: $ 3.98 |
BOLT | 13 | $ 3.98 | ||
| 6 | 09103-06182 Bolt (6x28)
SKU: 09103-06182 Weight: 0.060000 Brand: Price: $ 2.43 |
Bolt (6x28) | 3 | $ 2.43 | ||
| 7 | 11291-94402 Engine Hook (NLA)
SKU: 11291-94402 Weight: 0.100000 Brand: Price: $ 2.44 |
Engine Hook (NLA) | 1 | $ 2.44 | ||
| 8 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 1 | $ 3.54 | ||
| 9-1 | 11301-94446-0ED Cylinder Assembly (NLA)
SKU: 11301-94446-0ED Weight: 50.000000 Brand: Price: $ 1,159.98 |
Cylinder Assembly (NLA) | 1 | $ 1,159.98 | 1986 to 1994 | |
| 9-2 | 11301-94452-0ED Cylinder Assembly (NLA)
SKU: 11301-94452-0ED Weight: 50.000000 Brand: Price: $ 1,054.23 |
Cylinder Assembly (NLA) | 1 | $ 1,054.23 | 1995 to 1998 | |
| 10 | 16710-94420 Oil Check Valve (NLA)
SKU: 16710-94420 Weight: 0.100000 Brand: Price: $ 15.27 |
Oil Check Valve (NLA) | 2 | $ 15.27 | ||
| 11 | 04211-09109 DOWEL PIN
SKU: 04211-09109 Weight: 0.060000 Brand: Price: $ 1.66 |
DOWEL PIN | 2 | $ 1.66 | ||
| 12 | 01550-10557 BOLT
SKU: 01550-10557 Weight: 0.100000 Brand: Price: $ 3.98 |
BOLT | 8 | $ 3.98 | ||
| 13 | 01560-10657 BOLT
SKU: 01560-10657 Weight: 0.100000 Brand: Price: $ 4.64 |
BOLT | 2 | $ 4.64 | ||
| 15 | 09103-06183 Bolt (6x38)
SKU: 09103-06183 Weight: 0.060000 Brand: Price: $ 2.88 |
Bolt (6x38) | 3 | $ 2.88 | ||
| 14 | 01550-06407 BOLT
SKU: 01550-06407 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 16 | 17685-94410 Thermostat Gasket
SKU: 17685-94410 Weight: 0.060000 Brand: Price: $ 4.12 |
Thermostat Gasket | 1 | $ 4.12 | ||
| 17 | 17681-94401-0ED Thermostat Cover
SKU: 17681-94401-0ED Weight: 0.120000 Brand: Price: $ 37.06 |
Thermostat Cover | 1 | $ 37.06 | ||
| 18 | 09205-06011 Pin (NLA)
SKU: 09205-06011 Weight: 0.100000 Brand: Price: $ 0.65 |
Pin (NLA) | 1 | $ 0.65 | ||
| 19 | 17670-94404 Thermostat (60c)
SKU: 17670-94404 Weight: 0.125000 Brand: Price: $ 56.21 |
Thermostat (60c) | 1 | $ 56.21 | ||
| 20 | 11281-94400 Zinc Anode
SKU: 11281-94400 Weight: 0.100000 Brand: Price: $ 3.13 |
Zinc Anode | 2 | $ 3.13 | ||
| 21 | 09126-06005 Screw (6x30)
SKU: 09126-06005 Weight: 0.060000 Brand: Price: $ 2.12 |
Screw (6x30) | 2 | $ 2.12 | ||
| 22 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | 1988 to 1994 L:600->60 | |
| 23 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | 1988 to 1994 L:600->75 | |
| 24 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 4 | $ 2.12 | 1988 to 1994 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
