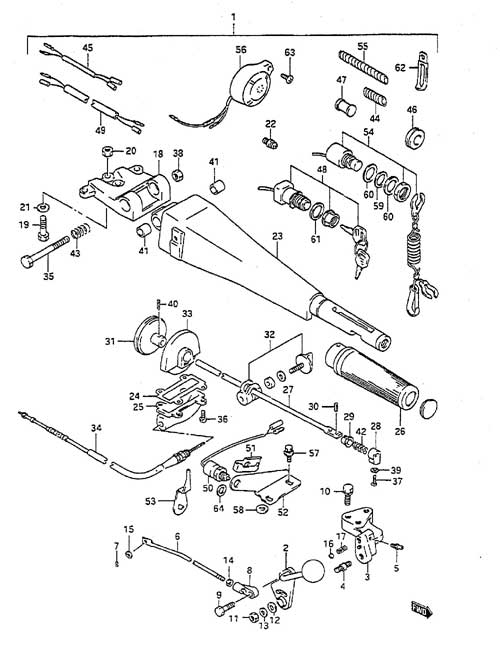

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 63001-95610-0ED Tiller Handle Assembly (NLA) SKU: 63001-95610-0ED Weight: 0.100000 Brand: Price: $ 563.04 |
Tiller Handle Assembly (NLA) | 1 | $ 563.04 | ||
2 | 21110-94702 Clutch Lever (NLA) SKU: 21110-94702 Weight: 0.100000 Brand: Price: $ 48.47 |
Clutch Lever (NLA) | 1 | $ 48.47 | ||
2B | 21116-95210 Clutch Lever Knob (NLA) SKU: 21116-95210 Weight: 0.100000 Brand: Price: $ 6.60 |
Clutch Lever Knob (NLA) | 1 | $ 6.60 | ||
3 | 21150-95214-0ED Clutch Lever Bracket (NLA) SKU: 21150-95214-0ED Weight: 0.100000 Brand: Price: $ 30.90 |
Clutch Lever Bracket (NLA) | 1 | $ 30.90 | ||
4 | 21211-95212 Clutch Lever Shaft (NLA) SKU: 21211-95212 Weight: 0.100000 Brand: Price: $ 8.93 |
Clutch Lever Shaft (NLA) | 1 | $ 8.93 | ||
5 | 22511-99011 Grease Nipple SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
6 | 23115-94720 Clutch Lever Link (NLA) SKU: 23115-94720 Weight: 0.100000 Brand: Price: $ 9.58 |
Clutch Lever Link (NLA) | 1 | $ 9.58 | ||
7 | 09385-06003 Pin (NLA) SKU: 09385-06003 Weight: 0.060000 Brand: Price: $ 1.21 |
Pin (NLA) | 1 | $ 1.21 | ||
8 | 23312-95210 Clutch Link Connector SKU: 23312-95210 Weight: 0.060000 Brand: Price: $ 2.27 |
Clutch Link Connector | 1 | $ 2.27 | ||
9 | 09111-06064 Bolt (6x17) SKU: 09111-06064 Weight: 0.060000 Brand: Price: $ 6.74 |
Bolt (6x17) | 1 | $ 6.74 | ||
10 | 09117-08109 Bolt (8x16) SKU: 09117-08109 Weight: 0.060000 Brand: Price: $ 3.09 |
Bolt (8x16) | 1 | $ 3.09 | ||
11 | 09159-08059 Nut SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 1 | $ 5.21 | ||
12 | 09160-08081 Washer (8.5x23x1.5) SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 2 | $ 2.68 | ||
13 | 09162-08007 Lock Washer (8.2x15.4x2.0) SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 1 | $ 1.49 | ||
14 | 09140-05005 Nut SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
15 | 08322-01067 Washer (6.5x13x1.0) SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 1 | $ 1.85 | ||
16 | 09260-10005 Ball SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
17 | 09440-07021 Spring SKU: 09440-07021 Weight: 0.060000 Brand: Price: $ 1.56 |
Spring | 1 | $ 1.56 | ||
18 | 43761-95501-0ED Steering Handle Bracket (NLA) SKU: 43761-95501-0ED Weight: 0.100000 Brand: Price: $ 53.32 |
Steering Handle Bracket (NLA) | 1 | $ 53.32 | ||
19 | 43762-95500 Bolt (NLA) SKU: 43762-95500 Weight: 0.100000 Brand: Price: $ 8.06 |
Bolt (NLA) | 2 | $ 8.06 | ||
20 | 43764-95500 Nut (NLA) SKU: 43764-95500 Weight: 0.100000 Brand: Price: $ 2.86 |
Nut (NLA) | 2 | $ 2.86 | ||
21 | 09160-10098 Washer (10x18x1.0) SKU: 09160-10098 Weight: 0.100000 Brand: Price: $ 1.42 |
Washer (10x18x1.0) | 2 | $ 1.42 | ||
22 | 22511-99011 Grease Nipple SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
23 | 63111-95503-0ED Tiller Handle (NLA) SKU: 63111-95503-0ED Weight: 1.000000 Brand: Price: $ 152.32 |
Tiller Handle (NLA) | 1 | $ 152.32 | ||
24 | 63119-95500 Tiller Handle Cover Gasket (NLA) SKU: 63119-95500 Weight: 0.100000 Brand: Price: $ 3.33 |
Tiller Handle Cover Gasket (NLA) | 1 | $ 3.33 | ||
25 | 63121-95501-0ED Tiller Handle Cover (NLA) SKU: 63121-95501-0ED Weight: 0.100000 Brand: Price: $ 32.67 |
Tiller Handle Cover (NLA) | 1 | $ 32.67 | ||
26 | 63210-93E30 Handle Grip SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
27 | 63221-95500 Handle Rod (NLA) SKU: 63221-95500 Weight: 0.100000 Brand: Price: $ 16.90 |
Handle Rod (NLA) | 1 | $ 16.90 | ||
28 | 63223-92D00 Handle Rod Stopper SKU: 63223-92D00 Weight: 0.060000 Brand: Price: $ 4.49 |
Handle Rod Stopper | 1 | $ 4.49 | ||
29 | 63225-93200 Handle Rod Bushing SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
30 | 63227-93200 Handle Rod Pin SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
31 | 63230-95501 Throttle Cable Gear SKU: 63230-95501 Weight: 0.100000 Brand: Price: $ 60.88 |
Throttle Cable Gear | 1 | $ 60.88 | ||
32 | 63240-96300 Handle Grip Adjuster SKU: 63240-96300 Weight: 0.060000 Brand: Price: $ 13.03 |
Handle Grip Adjuster | 1 | $ 13.03 | ||
33 | 63410-95500 Gear Housing (NLA) SKU: 63410-95500 Weight: 0.100000 Brand: Price: $ 16.69 |
Gear Housing (NLA) | 1 | $ 16.69 | ||
34 | 63610-95511 Throttle Cable Assembly SKU: 63610-95511 Weight: 0.350000 Brand: Price: $ 144.24 |
Throttle Cable Assembly | 1 | $ 144.24 | ||
35 | 09100-10264 Bolt (10x80) SKU: 09100-10264 Weight: 0.120000 Brand: Price: $ 8.05 |
Bolt (10x80) | 1 | $ 8.05 | ||
36 | 09125-06053 Screw (6x16) SKU: 09125-06053 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw (6x16) | 4 | $ 2.20 | ||
37 | 09126-06015 Screw (6x23) SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
38 | 09159-10050 Nut SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
39 | 09163-06001 Lock Washer (6.4x12x0.5) SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
40 | 09205-03012 Spring Pin (3x16) SKU: 09205-03012 Weight: 0.060000 Brand: Price: $ 1.99 |
Spring Pin (3x16) | 1 | $ 1.99 | ||
41 | 09306-10009 Handle Bushing SKU: 09306-10009 Weight: 0.060000 Brand: Price: $ 1.31 |
Handle Bushing | 4 | $ 1.31 | ||
42 | 09440-12027 Spring SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
43 | 09440-22008 Spring SKU: 09440-22008 Weight: 0.060000 Brand: Price: $ 11.89 |
Spring | 1 | $ 11.89 | ||
44 | 33833-91J00 Tube (6x8x250) SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | ||
45 | 36647-95600 PTT Relay Wire (NLA) SKU: 36647-95600 Weight: 0.100000 Brand: Price: $ 6.60 |
PTT Relay Wire (NLA) | 1 | $ 6.60 | ||
46 | 36656-94310 Extension Harness Guide (NLA) SKU: 36656-94310 Weight: 0.100000 Brand: Price: $ 3.65 |
Extension Harness Guide (NLA) | 1 | $ 3.65 | ||
47 | 36663-94700 Wiring Harness Cap (NLA) SKU: 36663-94700 Weight: 0.100000 Brand: Price: $ 1.63 |
Wiring Harness Cap (NLA) | 1 | $ 1.63 | ||
48 | 37110-94641 Ignition Switch Assembly (NLA) SKU: 37110-94641 Weight: 0.250000 Brand: Price: $ 147.76 |
Ignition Switch Assembly (NLA) | 1 | $ 147.76 | ||
49 | 37111-95310 Buzzer Lead (NLA) SKU: 37111-95310 Weight: 0.100000 Brand: Price: $ 7.50 |
Buzzer Lead (NLA) | 1 | $ 7.50 | ||
50 | 37721-95592 Neutral Switch Assembly (NLA) SKU: 37721-95592 Weight: 0.100000 Brand: Price: $ 23.23 |
Neutral Switch Assembly (NLA) | 1 | $ 23.23 | ||
51 | 37725-95300 Neutral Switch Actuator SKU: 37725-95300 Weight: 0.125000 Brand: Price: $ 5.67 |
Neutral Switch Actuator | 1 | $ 5.67 | ||
52-1 | 37726-95303 Neutral Switch Bracket (NLA) SKU: 37726-95303 Weight: 0.100000 Brand: Price: $ 2.92 |
Neutral Switch Bracket (NLA) | 1 | $ 2.92 | ||
52-2 | 37726-95591 Neutral Switch Bracket (NLA) SKU: 37726-95591 Weight: 0.100000 Brand: Price: $ 13.49 |
Neutral Switch Bracket (NLA) | 1 | $ 13.49 | ||
53 | 37729-95591 Neutral Switch Lever (NLA) SKU: 37729-95591 Weight: 0.100000 Brand: Price: $ 11.66 |
Neutral Switch Lever (NLA) | 1 | $ 11.66 | ||
54 | 37820-92E05 Emergency Stop Switch Assembly SKU: 37820-92E05 Weight: 0.250000 Brand: Price: $ 42.80 |
Emergency Stop Switch Assembly | 1 | $ 42.80 | ||
55 | 33833-91J00 Tube (6x8x250) SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | ||
56 | 38500-92X50 Warning Buzzer SKU: 38500-92X50 Weight: 0.260000 Brand: Price: $ 68.71 |
Warning Buzzer | 1 | $ 68.71 | ||
57 | 09118-06027 Bolt (NLA) SKU: 09118-06027 Weight: 0.100000 Brand: Price: $ 1.85 |
Bolt (NLA) | 2 | $ 1.85 | ||
58 | 09160-06104 Washer (6.5x24x2) SKU: 09160-06104 Weight: 0.062500 Brand: Price: $ 2.64 |
Washer (6.5x24x2) | 1 | $ 2.64 | ||
59 | 09160-12087 Washer SKU: 09160-12087 Weight: 0.200000 Brand: Price: $ 1.99 |
Washer | 1 | $ 1.99 | ||
60 | 09160-12067 Washer (12.5x23x1.0) SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 2 | $ 3.13 | ||
61 | 09160-25069 Washer SKU: 09160-25069 Weight: 0.100000 Brand: Price: $ 5.05 |
Washer | 1 | $ 5.05 | ||
62-2 | 09404-10205 Clamp (NLA) SKU: 09404-10205 Weight: 0.060000 Brand: Price: $ 1.60 |
Clamp (NLA) | 1 | $ 1.60 | ||
63 | 03142-05253 Screw (NLA) SKU: 03142-05253 Weight: 0.100000 Brand: Price: $ 1.59 |
Screw (NLA) | 1 | $ 1.59 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
