Suzuki DT 65 Parts Listings 1995 to 1997

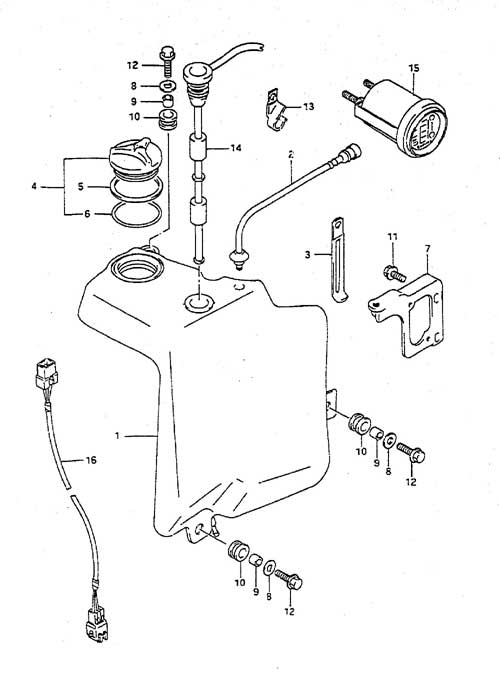

Fig. 41 - Oil Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 69101-94700 Oil Tank Set
SKU: 69101-94700 Weight: 5.000000 Brand: Price: $ 104.64 |
Oil Tank Set | 1 | $ 104.64 | ||
| 2 | 69220-94700 Oil Tank Air Vent
SKU: 69220-94700 Weight: 0.100000 Brand: Price: $ 31.71 |
Oil Tank Air Vent | 1 | $ 31.71 | ||
| 3 | 09404-06208 Clamp (NLA)
SKU: 09404-06208 Weight: 0.100000 Brand: Price: $ 0.69 |
Clamp (NLA) | 1 | $ 0.69 | ||
| 4 | 69201-95500 Suzuki Oil Tank Cap (NLA)
SKU: 69201-95500 Weight: 0.120000 Brand: Price: $ 33.71 |
Suzuki Oil Tank Cap (NLA) | 1 | $ 33.71 | ||
| 5 | 69241-95510 Oil Tank Cap Gasket (NLA)
SKU: 69241-95510 Weight: 0.060000 Brand: Price: $ 4.53 |
Oil Tank Cap Gasket (NLA) | 1 | $ 4.53 | ||
| 6 | 09280-41006 O-Ring
SKU: 09280-41006 Weight: 0.060000 Brand: Price: $ 3.43 |
O-Ring | 1 | $ 3.43 | S/N 461605 Newer | |
| 7 | 69311-94700 Oil Tank Support (NLA)
SKU: 69311-94700 Weight: 0.100000 Brand: Price: $ 13.49 |
Oil Tank Support (NLA) | 1 | $ 13.49 | ||
| 8 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 3 | $ 1.78 | ||
| 9 | 09180-06310 Spacer (6.5x10x10)
SKU: 09180-06310 Weight: 0.060000 Brand: Price: $ 1.91 |
Spacer (6.5x10x10) | 3 | $ 1.91 | ||
| 10 | 09320-10075 Cushion
SKU: 09320-10075 Weight: 0.060000 Brand: Price: $ 1.92 |
Cushion | 3 | $ 1.92 | ||
| 11 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 12 | 02162-06257 SCREW
SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW | 3 | $ 1.49 | ||
| 13 | 09403-12308 Clamp (NLA)
SKU: 09403-12308 Weight: 0.100000 Brand: Price: $ 2.03 |
Clamp (NLA) | 1 | $ 2.03 | ||
| 14 | 34860-94741 Oil Level Switch Assembly
SKU: 34860-94741 Weight: 0.200000 Brand: Price: $ 115.02 |
Oil Level Switch Assembly | 1 | $ 115.02 | ||
| 15 | 34700-92E11 Monitor Gauge Assembly (NLA)
SKU: 34700-92E11 Weight: 7.000000 Brand: Price: $ 229.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 229.95 | ||
| 16-1 | 36660-95610 Monitor Gauge Harness (21 ft)
SKU: 36660-95610 Weight: 0.100000 Brand: Price: $ 205.70 |
Monitor Gauge Harness (21 ft) | 1 | $ 205.70 | ||
| 16-2 | 36660-92E90 Monitor Gauge Harness (6 ft) (NLA)
SKU: 36660-92E90 Weight: 0.100000 Brand: Price: $ 69.95 |
Monitor Gauge Harness (6 ft) (NLA) | 1 | $ 69.95 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
