Suzuki DT 65 Parts Listings 1988 to 1997

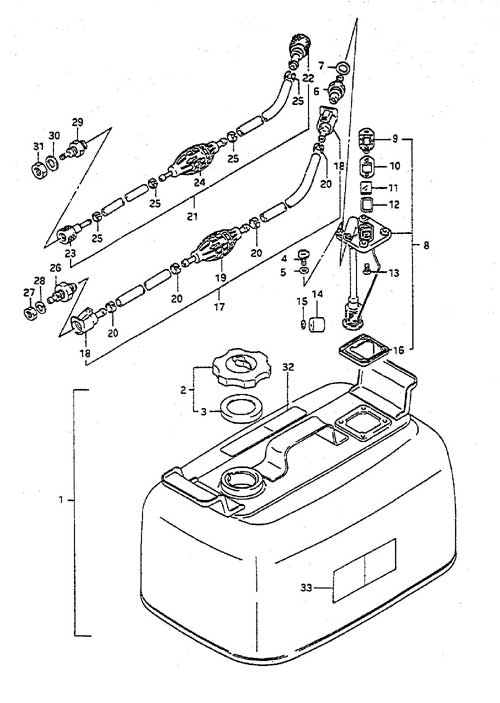

Fig. 39 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65800-92823 Fuel Tank Set (NLA)
SKU: 65800-92823 Weight: 0.100000 Brand: Price: $ 169.67 |
Fuel Tank Set (NLA) | 1 | $ 169.67 | ||
| 2 | 65510-92D00 Fuel Tank Cap Assembly
SKU: 65510-92D00 Weight: 0.250000 Brand: Price: $ 28.84 |
Fuel Tank Cap Assembly | 1 | $ 28.84 | ||
| 3 | 65561-92D00 Tank Cap Gasket
SKU: 65561-92D00 Weight: 0.100000 Brand: Price: $ 6.81 |
Tank Cap Gasket | 1 | $ 6.81 | ||
| 4 | 02112-16167 SCREW
SKU: 02112-16167 Weight: 0.060000 Brand: Price: $ 2.72 |
SCREW | 4 | $ 2.72 | ||
| 5-1 | 09168-06004 Washer
SKU: 09168-06004 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 4 | $ 1.44 | 1988 | |
| 5-2 | 09168-06026 Gasket
SKU: 09168-06026 Weight: 0.060000 Brand: Price: $ 3.16 |
Gasket | 4 | $ 3.16 | 1989 to 1992 | |
| 6-1 | 65720-94411 Fuel Connector (NLA)
SKU: 65720-94411 Weight: 0.060000 Brand: Price: $ 21.96 |
Fuel Connector (NLA) | 1 | $ 21.96 | S/N 231146 Older | |
| 6-2 | 65740-95501 Fuel Tank Connector (13mm)
SKU: 65740-95501 Weight: 0.100000 Brand: Price: $ 26.29 |
Fuel Tank Connector (13mm) | 1 | $ 26.29 | S/N 231147 Newer | |
| 7-1 | 09168-12001 Gasket
SKU: 09168-12001 Weight: 0.200000 Brand: Price: $ 1.46 |
Gasket | 1 | $ 1.46 | 1988 | |
| 7-2 | 09168-12015-XC0 Gasket (12.2x21x0.8)
SKU: 09168-12015-XC0 Weight: 0.060000 Brand: Price: $ 3.72 |
Gasket (12.2x21x0.8) | 1 | $ 3.72 | 1989 to 1992 | |
| 8 | 65850-92D01 Fuel Gauge Assembly (NLA)
SKU: 65850-92D01 Weight: 0.100000 Brand: Price: $ 35.99 |
Fuel Gauge Assembly (NLA) | 1 | $ 35.99 | ||
| 9-1 | 65855-92D00 Gauge Cover (NLA)
SKU: 65855-92D00 Weight: 0.100000 Brand: Price: $ 2.64 |
Gauge Cover (NLA) | 1 | $ 2.64 | 1988 | |
| 9-2 | 65855-92D10 Gauge Cover (NLA)
SKU: 65855-92D10 Weight: 0.100000 Brand: Price: $ 2.25 |
Gauge Cover (NLA) | 1 | $ 2.25 | 1989 to 1992 | |
| 10-1 | 65854-92D10 Lens Gasket (NLA)
SKU: 65854-92D10 Weight: 0.100000 Brand: Price: $ 2.28 |
Lens Gasket (NLA) | 1 | $ 2.28 | 1988 | |
| 10-2 | 65854-92D20 Lens Gasket (NLA)
SKU: 65854-92D20 Weight: 0.100000 Brand: Price: $ 1.76 |
Lens Gasket (NLA) | 1 | $ 1.76 | 1989 to 1992 | |
| 11 | 65853-92D00 Lens (NLA)
SKU: 65853-92D00 Weight: 0.100000 Brand: Price: $ 1.76 |
Lens (NLA) | 1 | $ 1.76 | ||
| 12-1 | 65854-92D00 Lens Gasket (NLA)
SKU: 65854-92D00 Weight: 0.100000 Brand: Price: $ 1.93 |
Lens Gasket (NLA) | 1 | $ 1.93 | 1988 | |
| 12-2 | 65854-92D30 Lens Gasket (NLA)
SKU: 65854-92D30 Weight: 0.100000 Brand: Price: $ 1.79 |
Lens Gasket (NLA) | 1 | $ 1.79 | 1989 to 1992 | |
| 13 | 03221-04083 Screw (NLA)
SKU: 03221-04083 Weight: 0.100000 Brand: Price: $ 0.72 |
Screw (NLA) | 2 | $ 0.72 | ||
| 14 | 65864-92D00 Float (NLA)
SKU: 65864-92D00 Weight: 0.100000 Brand: Price: $ 3.99 |
Float (NLA) | 1 | $ 3.99 | ||
| 15 | 65866-92D00 Push Nut (NLA)
SKU: 65866-92D00 Weight: 0.100000 Brand: Price: $ 0.85 |
Push Nut (NLA) | 1 | $ 0.85 | ||
| 16 | 65871-92D00 Gasket (NLA)
SKU: 65871-92D00 Weight: 0.100000 Brand: Price: $ 2.59 |
Gasket (NLA) | 1 | $ 2.59 | ||
| 17 | 65700-87D16 Fuel Hose (NLA)
SKU: 65700-87D16 Weight: 0.100000 Brand: Price: $ 66.95 |
Fuel Hose (NLA) | 1 | $ 66.95 | ||
| 18 | 65750-94404 Fuel Hose Connector
SKU: 65750-94404 Weight: 0.060000 Brand: Price: $ 21.06 |
Fuel Hose Connector | 2 | $ 21.06 | ||
| 20 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 | ||
| 21 | 65700-87D85 Fuel Hose
SKU: 65700-87D85 Weight: 2.000000 Brand: Price: $ 229.94 |
Fuel Hose | 1 | $ 229.94 | S/N 231147 Newer | |
| 22 | 65750-95501 Fuel Hose Connector (13mm)
SKU: 65750-95501 Weight: 0.120000 Brand: Price: $ 32.61 |
Fuel Hose Connector (13mm) | 1 | $ 32.61 | S/N 231147 Newer | |
| 23 | 65750-98506 Fuel Hose Connector (11mm)
SKU: 65750-98506 Weight: 0.120000 Brand: Price: $ 30.19 |
Fuel Hose Connector (11mm) | 1 | $ 30.19 | S/N 231147 Newer | |
| 24 | 65770-95540 Squeeze Pump (NLA)
SKU: 65770-95540 Weight: 0.130000 Brand: Price: $ 19.04 |
Squeeze Pump (NLA) | 1 | $ 19.04 | S/N 231147 Newer | |
| 25 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 | S/N 231147 Newer | |
| 26 | 65720-94403 Fuel Connector
SKU: 65720-94403 Weight: 0.060000 Brand: Price: $ 21.98 |
Fuel Connector | 1 | $ 21.98 | ||
| 27 | 08310-00107 Nut
SKU: 08310-00107 Weight: 0.060000 Brand: Price: $ 2.21 |
Nut | 1 | $ 2.21 | ||
| 28 | 08321-01107 Lock Washer
SKU: 08321-01107 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 29 | 65720-985L1 Fuel Connector (11mm)
SKU: 65720-985L1 Weight: 0.080000 Brand: Price: $ 31.82 |
Fuel Connector (11mm) | 1 | $ 31.82 | S/N 231147 Newer | |
| 30 | 09161-10007 Washer
SKU: 09161-10007 Weight: 0.060000 Brand: Price: $ 1.49 |
Washer | 1 | $ 1.49 | S/N 231147 Newer | |
| 31 | 08310-00107 Nut
SKU: 08310-00107 Weight: 0.060000 Brand: Price: $ 2.21 |
Nut | 1 | $ 2.21 | S/N 231147 Newer | |
| 32 | 65317-95260 Fuel Capacity Mark (NLA)
SKU: 65317-95260 Weight: 0.100000 Brand: Price: $ 3.37 |
Fuel Capacity Mark (NLA) | 1 | $ 3.37 | ||
| 33 | 65316-93331 Fuel Caution Mark (NLA)
SKU: 65316-93331 Weight: 0.100000 Brand: Price: $ 4.79 |
Fuel Caution Mark (NLA) | 1 | $ 4.79 | ||
| 34 | 09408-00056 Clip
SKU: 09408-00056 Weight: 0.100000 Brand: Price: $ 2.67 |
Clip | 1 | $ 2.67 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
