Suzuki DT 65 Parts Listings 1988 to 1997

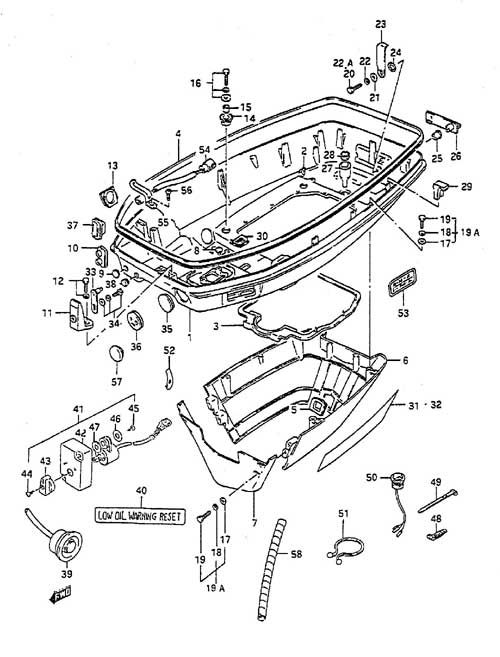

Fig. 34 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61110-96X54-0ED Lower Engine Cover
SKU: 61110-96X54-0ED Weight: 10.000000 Brand: Price: $ 473.17 |
Lower Engine Cover | 1 | $ 473.17 | ||
| 2 | 61155-94500 Water Inspection Tube
SKU: 61155-94500 Weight: 0.060000 Brand: Price: $ 3.47 |
Water Inspection Tube | 1 | $ 3.47 | ||
| 3 | 61113-95205 Under Cover Lower Seal
SKU: 61113-95205 Weight: 0.200000 Brand: Price: $ 22.97 |
Under Cover Lower Seal | 1 | $ 22.97 | ||
| 4 | 61112-95208 Under Cover Upper Seal (NLA)
SKU: 61112-95208 Weight: 0.100000 Brand: Price: $ 51.48 |
Under Cover Upper Seal (NLA) | 1 | $ 51.48 | ||
| 5 | 61142-95201 Under Cover Lower Grommet (NLA)
SKU: 61142-95201 Weight: 0.100000 Brand: Price: $ 1.96 |
Under Cover Lower Grommet (NLA) | 1 | $ 1.96 | ||
| 6 | 61141-95204-0ED Lower Rear Under Cover (NLA)
SKU: 61141-95204-0ED Weight: 50.000000 Brand: Price: $ 84.86 |
Lower Rear Under Cover (NLA) | 1 | $ 84.86 | ||
| 7 | 61131-95201-0ED Lower Front Under Cover (NLA)
SKU: 61131-95201-0ED Weight: 1.000000 Brand: Price: $ 57.92 |
Lower Front Under Cover (NLA) | 1 | $ 57.92 | ||
| 8 | 09250-05003 Cap (NLA)
SKU: 09250-05003 Weight: 0.100000 Brand: Price: $ 1.37 |
Cap (NLA) | 2 | $ 1.37 | ||
| 9 | 63725-95200 Grommet (NLA)
SKU: 63725-95200 Weight: 0.060000 Brand: Price: $ 2.84 |
Grommet (NLA) | 1 | $ 2.84 | ||
| 10 | 67331-95210 Grommet
SKU: 67331-95210 Weight: 0.060000 Brand: Price: $ 4.76 |
Grommet | 1 | $ 4.76 | ||
| 11 | 61116-94702 Engine Cover Bracket (NLA)
SKU: 61116-94702 Weight: 0.140000 Brand: Price: $ 25.32 |
Engine Cover Bracket (NLA) | 1 | $ 25.32 | ||
| 12 | 09117-06046 Bolt (6x20) (NLA)
SKU: 09117-06046 Weight: 0.100000 Brand: Price: $ 1.40 |
Bolt (6x20) (NLA) | 2 | $ 1.40 | ||
| 13 | 61124-95200 Lower Cover Grommet
SKU: 61124-95200 Weight: 0.060000 Brand: Price: $ 3.66 |
Lower Cover Grommet | 1 | $ 3.66 | ||
| 14 | 09320-10502 Cushion
SKU: 09320-10502 Weight: 0.060000 Brand: Price: $ 2.75 |
Cushion | 4 | $ 2.75 | ||
| 15 | 09180-06289 Spacer
SKU: 09180-06289 Weight: 0.100000 Brand: Price: $ 2.56 |
Spacer | 4 | $ 2.56 | ||
| 16 | 09118-06093 Bolt (6x25) (NLA)
SKU: 09118-06093 Weight: 0.200000 Brand: Price: $ 2.81 |
Bolt (6x25) (NLA) | 4 | $ 2.81 | ||
| 17 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 8 | $ 1.44 | ||
| 18 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 8 | $ 1.49 | ||
| 19 | 09138-06037 Bolt (6x20)
SKU: 09138-06037 Weight: 0.060000 Brand: Price: $ 3.60 |
Bolt (6x20) | 8 | $ 3.60 | ||
| 19A | 09138-06037 Bolt (6x20)
SKU: 09138-06037 Weight: 0.060000 Brand: Price: $ 3.60 |
Bolt (6x20) | 8 | $ 3.60 | 1997 | |
| 20 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 8 | $ 2.10 | 1988 to 1993 | |
| 21 | 09160-06036 Washer (6.5x18x1.5)
SKU: 09160-06036 Weight: 0.060000 Brand: Price: $ 1.97 |
Washer (6.5x18x1.5) | 1 | $ 1.97 | 1988 to 1993 | |
| 22 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 1 | $ 1.49 | 1988 to 1993 | |
| 22A | 09118-06095 Bolt (6x12)
SKU: 09118-06095 Weight: 0.200000 Brand: Price: $ 4.31 |
Bolt (6x12) | 1 | $ 4.31 | 1994 to 1997 | |
| 23 | 61631-95310 Lower Engine Cover Hook
SKU: 61631-95310 Weight: 0.100000 Brand: Price: $ 11.25 |
Lower Engine Cover Hook | 1 | $ 11.25 | ||
| 24 | 09164-13005 Wave Washer
SKU: 09164-13005 Weight: 0.060000 Brand: Price: $ 3.38 |
Wave Washer | 1 | $ 3.38 | ||
| 25 | 09306-13007 Bushing
SKU: 09306-13007 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 1 | $ 2.81 | ||
| 26 | 61645-90J01-0ED Front Hook Lever
SKU: 61645-90J01-0ED Weight: 0.200000 Brand: Price: $ 48.90 |
Front Hook Lever | 1 | $ 48.90 | ||
| 27-1 | 13873-20300 Drain Tube
SKU: 13873-20300 Weight: 0.200000 Brand: Price: $ 4.48 |
Drain Tube | 1 | $ 4.48 | 1988 to 1994 | |
| 27-2 | 61139-94511 Drain Tube
SKU: 61139-94511 Weight: 0.200000 Brand: Price: $ 7.89 |
Drain Tube | 1 | $ 7.89 | 1995 to 1997 | |
| 28 | 13979-37400 Drain Tube Retainer (NLA)
SKU: 13979-37400 Weight: 0.062500 Brand: Price: $ 8.62 |
Drain Tube Retainer (NLA) | 1 | $ 8.62 | ||
| 29 | 36641-94710 Cable Stopper (NLA)
SKU: 36641-94710 Weight: 0.100000 Brand: Price: $ 2.53 |
Cable Stopper (NLA) | 3 | $ 2.53 | ||
| 30 | 23131-95501 Clutch Rod Boot
SKU: 23131-95501 Weight: 0.060000 Brand: Price: $ 5.34 |
Clutch Rod Boot | 1 | $ 5.34 | ||
| 31 | 61240-95900-70G Lower Cover Decal Set (NLA)
SKU: 61240-95900-70G Weight: 0.100000 Brand: Price: $ 28.40 |
Lower Cover Decal Set (NLA) | 1 | $ 28.40 | ||
| 32 | 61231-95570-26G Port Lower Cover Decal (NLA)
SKU: 61231-95570-26G Weight: 0.100000 Brand: Price: $ 13.16 |
Port Lower Cover Decal (NLA) | 1 | $ 13.16 | 1988 | |
| 33 | 61610-95514 Fastener
SKU: 61610-95514 Weight: 0.060000 Brand: Price: $ 13.79 |
Fastener | 1 | $ 13.79 | ||
| 34 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 35 | 09250-30003 Cap
SKU: 09250-30003 Weight: 0.060000 Brand: Price: $ 3.96 |
Cap | 1 | $ 3.96 | ||
| 36 | 36658-94701 Cable Grommet (NLA)
SKU: 36658-94701 Weight: 0.100000 Brand: Price: $ 3.27 |
Cable Grommet (NLA) | 1 | $ 3.27 | ||
| 39 | 37930-95612 Oil Warning Reset Switch Assembly
SKU: 37930-95612 Weight: 0.200000 Brand: Price: $ 36.86 |
Oil Warning Reset Switch Assembly | 1 | $ 36.86 | ||
| 40 | 37935-95602 Low Oil Warning Reset Label (NLA)
SKU: 37935-95602 Weight: 0.062500 Brand: Price: $ 1.83 |
Low Oil Warning Reset Label (NLA) | 1 | $ 1.83 | ||
| 41 | 37920-95500 Ignition Timing Switch Assembly (NLA)
SKU: 37920-95500 Weight: 0.100000 Brand: Price: $ 53.66 |
Ignition Timing Switch Assembly (NLA) | 1 | $ 53.66 | 1989 to 1990 | |
| 42 | 37925-95D00 Ignition Timing Switch Cushion (NLA)
SKU: 37925-95D00 Weight: 0.100000 Brand: Price: $ 2.47 |
Ignition Timing Switch Cushion (NLA) | 1 | $ 2.47 | 1989 to 1990 | |
| 43 | 37922-94610 Knob
SKU: 37922-94610 Weight: 0.100000 Brand: Price: $ 7.10 |
Knob | 1 | $ 7.10 | 1989 to 1990 | |
| 44 | 02112-04087 SCREW 4X8
SKU: 02112-04087 Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW 4X8 | 1 | $ 1.11 | 1989 to 1990 | |
| 45 | 09132-05039 Screw (NLA)
SKU: 09132-05039 Weight: 0.100000 Brand: Price: $ 1.25 |
Screw (NLA) | 1 | $ 1.25 | 1989 to 1990 | |
| 46 | 09160-05024 Washer (5.5x16x1.5)
SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54 |
Washer (5.5x16x1.5) | 1 | $ 1.54 | 1989 to 1990 | |
| 47 | 08322-01107 Washer
SKU: 08322-01107 Weight: 0.060000 Brand: Price: $ 1.87 |
Washer | 1 | $ 1.87 | 1989 to 1990 | |
| 49 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | 1989 to 1994 | |
| 50 | 37850-95612 PTT Switch Assembly
SKU: 37850-95612 Weight: 0.120000 Brand: Price: $ 104.20 |
PTT Switch Assembly | 1 | $ 104.20 | 1989 to 1997 | |
| 51-1 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | 1989 to 1997 | |
| 51-2 | 09408-00021 Clamp (NLA)
SKU: 09408-00021 Weight: 0.100000 Brand: Price: $ 0.85 |
Clamp (NLA) | 1 | $ 0.85 | ||
| 52 | 61512-95600-064 Ignition Timing Mark (NLA)
SKU: 61512-95600-064 Weight: 0.100000 Brand: Price: $ 1.18 |
Ignition Timing Mark (NLA) | 1 | $ 1.18 | 1989 to 1992 | |
| 53 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 54 | 37940-94701 Ignition Timing Resistor (NLA)
SKU: 37940-94701 Weight: 0.060000 Brand: Price: $ 23.41 |
Ignition Timing Resistor (NLA) | 1 | $ 23.41 | 1991 to 1994 | |
| 56 | 03241-0510A SCREW
SKU: 03241-0510A Weight: 0.200000 Brand: Price: $ 1.27 |
SCREW | 1 | $ 1.27 | 1991 to 1993 | |
| 57 | 09250-21003 Plug
SKU: 09250-21003 Weight: 0.060000 Brand: Price: $ 4.39 |
Plug | 1 | $ 4.39 | 1991 to 1997 | |
| 58 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->50 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
