Suzuki DT 65 Parts Listings 1988 to 1997

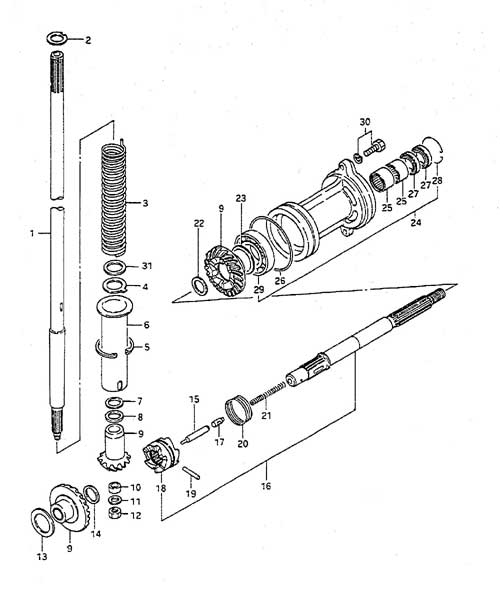

Fig. 33 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 57110-94741 Drive Shaft (L) (NLA)
SKU: 57110-94741 Weight: 10.000000 Brand: Price: $ 353.67 |
Drive Shaft (L) (NLA) | 1 | $ 353.67 | ||
| 2 | 09166-17004 Thrust Washer
SKU: 09166-17004 Weight: 0.060000 Brand: Price: $ 2.57 |
Thrust Washer | 1 | $ 2.57 | ||
| 3 | 09440-26002 Spring (NLA)
SKU: 09440-26002 Weight: 0.400000 Brand: Price: $ 5.98 |
Spring (NLA) | 1 | $ 5.98 | ||
| 4 | 09167-20017 Washer (NLA)
SKU: 09167-20017 Weight: 0.060000 Brand: Price: $ 2.46 |
Washer (NLA) | 1 | $ 2.46 | ||
| 5 | 08331-41479 Circlip
SKU: 08331-41479 Weight: 0.060000 Brand: Price: $ 2.40 |
Circlip | 1 | $ 2.40 | ||
| 6 | 57133-95200 Drive Shaft Spring Collar (NLA)
SKU: 57133-95200 Weight: 0.100000 Brand: Price: $ 12.23 |
Drive Shaft Spring Collar (NLA) | 1 | $ 12.23 | ||
| 7 | 09160-17029 Washer (NLA)
SKU: 09160-17029 Weight: 0.060000 Brand: Price: $ 4.29 |
Washer (NLA) | 1 | $ 4.29 | ||
| 8-1 | 08211-17251 Thrust Washer
SKU: 08211-17251 Weight: 0.060000 Brand: Price: $ 2.45 |
Thrust Washer | 1 | $ 2.45 | ||
| 8-2 | 09181-17144 Shim (1.10)
SKU: 09181-17144 Weight: 0.060000 Brand: Price: $ 2.54 |
Shim (1.10) | 1 | $ 2.54 | ||
| 8-3 | 09181-17144 Shim (1.10)
SKU: 09181-17144 Weight: 0.060000 Brand: Price: $ 2.54 |
Shim (1.10) | 1 | $ 2.54 | 1997 | |
| 8-4 | 09181-17148 Shim (1.20)
SKU: 09181-17148 Weight: 0.060000 Brand: Price: $ 3.15 |
Shim (1.20) | 1 | $ 3.15 | ||
| 8-5 | 09181-17148 Shim (1.20)
SKU: 09181-17148 Weight: 0.060000 Brand: Price: $ 3.15 |
Shim (1.20) | 1 | $ 3.15 | 1997 | |
| 8-6 | 09181-17153 Shim (1.30) (NLA)
SKU: 09181-17153 Weight: 0.060000 Brand: Price: $ 2.46 |
Shim (1.30) (NLA) | 1 | $ 2.46 | ||
| 8-7 | 09181-17153 Shim (1.30) (NLA)
SKU: 09181-17153 Weight: 0.060000 Brand: Price: $ 2.46 |
Shim (1.30) (NLA) | 1 | $ 2.46 | 1997 | |
| 8-8 | 09181-17154 Shim (1.40)
SKU: 09181-17154 Weight: 0.060000 Brand: Price: $ 3.24 |
Shim (1.40) | 1 | $ 3.24 | ||
| 8-9 | 09181-17154 Shim (1.40)
SKU: 09181-17154 Weight: 0.060000 Brand: Price: $ 3.24 |
Shim (1.40) | 1 | $ 3.24 | 1997 | |
| 8-10 | 08211-17252 Shim (1.50)
SKU: 08211-17252 Weight: 0.100000 Brand: Price: $ 2.45 |
Shim (1.50) | 1 | $ 2.45 | ||
| 8-11 | 09181-17012 Shim (1.60) (NLA)
SKU: 09181-17012 Weight: 0.100000 Brand: Price: $ 2.31 |
Shim (1.60) (NLA) | 1 | $ 2.31 | ||
| 9 | 57300-94843 Pinion & Gear Set
SKU: 57300-94843 Weight: 2.560000 Brand: Price: $ 500.17 |
Pinion & Gear Set | 1 | $ 500.17 | ||
| 10 | 09180-12087 Pinion Spacer
SKU: 09180-12087 Weight: 0.060000 Brand: Price: $ 4.82 |
Pinion Spacer | 1 | $ 4.82 | ||
| 11 | 09181-10156 Washer
SKU: 09181-10156 Weight: 0.100000 Brand: Price: $ 2.13 |
Washer | 1 | $ 2.13 | ||
| 12 | 09140-10022 Pinion Nut (NLA)
SKU: 09140-10022 Weight: 0.060000 Brand: Price: $ 3.18 |
Pinion Nut (NLA) | 1 | $ 3.18 | ||
| 13-1 | 08221-30455 Shim (0.50)
SKU: 08221-30455 Weight: 0.060000 Brand: Price: $ 2.36 |
Shim (0.50) | 1 | $ 2.36 | ||
| 13-2 | 09181-30007 Shim (0.60) (NLA)
SKU: 09181-30007 Weight: 0.100000 Brand: Price: $ 0.82 |
Shim (0.60) (NLA) | 1 | $ 0.82 | ||
| 13-3 | 09181-30215 Shim (0.60) (NLA)
SKU: 09181-30215 Weight: 0.100000 Brand: Price: $ 2.07 |
Shim (0.60) (NLA) | 1 | $ 2.07 | ||
| 13-4 | 09181-30216 Shim (0.70) (NLA)
SKU: 09181-30216 Weight: 0.060000 Brand: Price: $ 2.85 |
Shim (0.70) (NLA) | 1 | $ 2.85 | ||
| 13-5 | 09181-30216 Shim (0.70) (NLA)
SKU: 09181-30216 Weight: 0.060000 Brand: Price: $ 2.85 |
Shim (0.70) (NLA) | 1 | $ 2.85 | ||
| 13-6 | 09181-30218 Shim (0.80) (NLA)
SKU: 09181-30218 Weight: 0.100000 Brand: Price: $ 2.07 |
Shim (0.80) (NLA) | 1 | $ 2.07 | ||
| 13-7 | 09181-30216 Shim (0.70) (NLA)
SKU: 09181-30216 Weight: 0.060000 Brand: Price: $ 2.85 |
Shim (0.70) (NLA) | 1 | $ 2.85 | ||
| 13-8 | 09181-30220 Shim (0.90) (NLA)
SKU: 09181-30220 Weight: 0.100000 Brand: Price: $ 2.07 |
Shim (0.90) (NLA) | 1 | $ 2.07 | ||
| 13-9 | 09181-30220 Shim (0.90) (NLA)
SKU: 09181-30220 Weight: 0.100000 Brand: Price: $ 2.07 |
Shim (0.90) (NLA) | 1 | $ 2.07 | ||
| 13-10 | 08211-30451 Thrust Washer (1.00)
SKU: 08211-30451 Weight: 0.060000 Brand: Price: $ 2.95 |
Thrust Washer (1.00) | 1 | $ 2.95 | ||
| 14 | 08211-20263 Thrust Washer (2.00)
SKU: 08211-20263 Weight: 0.060000 Brand: Price: $ 2.45 |
Thrust Washer (2.00) | 1 | $ 2.45 | ||
| 15 | 57631-95303 Push Rod
SKU: 57631-95303 Weight: 0.060000 Brand: Price: $ 13.48 |
Push Rod | 1 | $ 13.48 | ||
| 16-1 | 57600-94701 Propeller Shaft Assembly (NLA)
SKU: 57600-94701 Weight: 10.000000 Brand: Price: $ 268.25 |
Propeller Shaft Assembly (NLA) | 1 | $ 268.25 | S/N 231519 Older Requires Ref# 32 | |
| 16-1 | 57600-94701 Propeller Shaft Assembly (NLA)
SKU: 57600-94701 Weight: 10.000000 Brand: Price: $ 268.25 |
Propeller Shaft Assembly (NLA) | 1 | $ 268.25 | S/N 231520 Newer | |
| 17 | 57622-94700 Push Pin
SKU: 57622-94700 Weight: 0.060000 Brand: Price: $ 6.35 |
Push Pin | 1 | $ 6.35 | ||
| 18 | 57621-94700 Clutch Dog Shifter (NLA)
SKU: 57621-94700 Weight: 0.400000 Brand: Price: $ 80.07 |
Clutch Dog Shifter (NLA) | 1 | $ 80.07 | ||
| 19 | 09202-06030 Discontinued
SKU: 09202-06030 Weight: 0.060000 Brand: Price: $ 2.35 |
Discontinued | 1 | $ 2.35 | ||
| 20 | 09440-40002 Clutch Dog Spring
SKU: 09440-40002 Weight: 0.060000 Brand: Price: $ 3.21 |
Clutch Dog Spring | 1 | $ 3.21 | ||
| 21 | 09440-09022 Spring
SKU: 09440-09022 Weight: 0.060000 Brand: Price: $ 1.73 |
Spring | 1 | $ 1.73 | ||
| 22-1 | 09160-22018 Washer (1.80)
SKU: 09160-22018 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (1.80) | 1 | $ 3.89 | ||
| 22-2 | 09160-22019 Washer (1.90)
SKU: 09160-22019 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (1.90) | 1 | $ 3.89 | ||
| 22-3 | 09160-22020 Washer (2.00)
SKU: 09160-22020 Weight: 0.060000 Brand: Price: $ 4.13 |
Washer (2.00) | 1 | $ 4.13 | ||
| 22-4 | 09160-22021 Washer (2.10)
SKU: 09160-22021 Weight: 0.060000 Brand: Price: $ 4.13 |
Washer (2.10) | 1 | $ 4.13 | ||
| 22-5 | 09160-22022 Washer (2.20)
SKU: 09160-22022 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (2.20) | 1 | $ 3.89 | ||
| 22-6 | 09160-22023 Washer (2.30)
SKU: 09160-22023 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (2.30) | 1 | $ 3.89 | ||
| 23-1 | 08221-35455 Shim (0.50)
SKU: 08221-35455 Weight: 0.060000 Brand: Price: $ 3.31 |
Shim (0.50) | 1 | $ 3.31 | ||
| 23-2 | 09181-35131 Shim (0.60)
SKU: 09181-35131 Weight: 0.060000 Brand: Price: $ 3.38 |
Shim (0.60) | 1 | $ 3.38 | ||
| 23-3 | 09181-35132 Shim (0.70)
SKU: 09181-35132 Weight: 0.060000 Brand: Price: $ 3.38 |
Shim (0.70) | 1 | $ 3.38 | ||
| 23-4 | 09181-35132 Shim (0.70)
SKU: 09181-35132 Weight: 0.060000 Brand: Price: $ 3.38 |
Shim (0.70) | 1 | $ 3.38 | 1997 | |
| 23-5 | 08221-35456 Shim (0.80)
SKU: 08221-35456 Weight: 0.100000 Brand: Price: $ 3.40 |
Shim (0.80) | 1 | $ 3.40 | ||
| 23-6 | 09181-35136 Shim (0.90)
SKU: 09181-35136 Weight: 0.060000 Brand: Price: $ 2.49 |
Shim (0.90) | 1 | $ 2.49 | ||
| 23-7 | 09181-35136 Shim (0.90)
SKU: 09181-35136 Weight: 0.060000 Brand: Price: $ 2.49 |
Shim (0.90) | 1 | $ 2.49 | 1997 | |
| 23-8 | 08211-35451 Shim (1.00)
SKU: 08211-35451 Weight: 0.100000 Brand: Price: $ 3.40 |
Shim (1.00) | 1 | $ 3.40 | ||
| 24 | 56120-95311-0ED Propeller Shaft Bearing Housing (NLA)
SKU: 56120-95311-0ED Weight: 2.250000 Brand: Price: $ 175.99 |
Propeller Shaft Bearing Housing (NLA) | 1 | $ 175.99 | ||
| 25 | 09263-22020 Bearing (22.225x28.575.19.05)
SKU: 09263-22020 Weight: 0.080000 Brand: Price: $ 19.54 |
Bearing (22.225x28.575.19.05) | 2 | $ 19.54 | ||
| 26 | 09280-76006 O-Ring (NLA)
SKU: 09280-76006 Weight: 0.060000 Brand: Price: $ 2.70 |
O-Ring (NLA) | 1 | $ 2.70 | ||
| 27 | 09289-22007 Oil Seal (21.2x35x5)
SKU: 09289-22007 Weight: 0.060000 Brand: Price: $ 5.22 |
Oil Seal (21.2x35x5) | 2 | $ 5.22 | ||
| 28 | 09387-37001 Set Ring (NLA)
SKU: 09387-37001 Weight: 0.060000 Brand: Price: $ 1.22 |
Set Ring (NLA) | 1 | $ 1.22 | ||
| 29 | 09262-35021-0A0 Bearing (35x62x14)
SKU: 09262-35021-0A0 Weight: 0.350000 Brand: Price: $ 36.35 |
Bearing (35x62x14) | 1 | $ 36.35 | ||
| 30 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 2 | $ 5.05 | ||
| 31 | 09160-22030 Washer (NLA)
SKU: 09160-22030 Weight: 0.100000 Brand: Price: $ 2.34 |
Washer (NLA) | 1 | $ 2.34 | ||
| 32 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
