Suzuki DT 65 Parts Listings 1991 to 1994

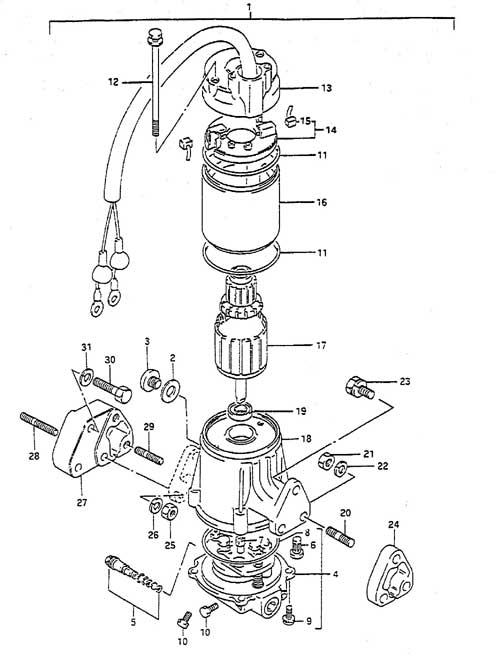

Fig. 26 - Power Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 48500-95220-0ED Power Unit Assembly (NLA)
SKU: 48500-95220-0ED Weight: 0.100000 Brand: Price: $ 871.63 |
Power Unit Assembly (NLA) | 1 | $ 871.63 | ||
| 1-2 | 48500-95290-0ED Power Unit Assembly (NLA)
SKU: 48500-95290-0ED Weight: 10.000000 Brand: Price: $ 1,113.72 |
Power Unit Assembly (NLA) | 1 | $ 1,113.72 | Opt: Port Side | |
| 2 | 09280-09005 O-Ring
SKU: 09280-09005 Weight: 0.060000 Brand: Price: $ 3.76 |
O-Ring | 1 | $ 3.76 | ||
| 3 | 48511-95500 Oil Filler Plug (NLA)
SKU: 48511-95500 Weight: 0.100000 Brand: Price: $ 11.46 |
Oil Filler Plug (NLA) | 1 | $ 11.46 | ||
| 4 | 48502-94530 Pump & Valve Body (NLA)
SKU: 48502-94530 Weight: 2.000000 Brand: Price: $ 1,043.54 |
Pump & Valve Body (NLA) | 1 | $ 1,043.54 | ||
| 5 | 48550-94600 Manual Valve Release
SKU: 48550-94600 Weight: 0.125000 Brand: Price: $ 52.95 |
Manual Valve Release | 1 | $ 52.95 | ||
| 6 | 48581-94500 PTT Pump Filter (NLA)
SKU: 48581-94500 Weight: 0.100000 Brand: Price: $ 4.01 |
PTT Pump Filter (NLA) | 1 | $ 4.01 | ||
| 7 | 48583-94520 Drive Joint
SKU: 48583-94520 Weight: 0.060000 Brand: Price: $ 16.56 |
Drive Joint | 1 | $ 16.56 | ||
| 8 | 48585-94520 Valve Body O-Ring
SKU: 48585-94520 Weight: 0.060000 Brand: Price: $ 5.34 |
Valve Body O-Ring | 1 | $ 5.34 | ||
| 9 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 4 | $ 1.97 | ||
| 10 | 48586-94500 Plug
SKU: 48586-94500 Weight: 0.060000 Brand: Price: $ 3.87 |
Plug | 1 | $ 3.87 | ||
| 11 | 09280-70005 O-Ring
SKU: 09280-70005 Weight: 0.060000 Brand: Price: $ 6.34 |
O-Ring | 2 | $ 6.34 | ||
| 12 | 31281-94610 Through Bolt (NLA)
SKU: 31281-94610 Weight: 0.100000 Brand: Price: $ 6.32 |
Through Bolt (NLA) | 2 | $ 6.32 | ||
| 13 | 31170-94610-0ED PTT Motor Cover (NLA)
SKU: 31170-94610-0ED Weight: 1.000000 Brand: Price: $ 152.71 |
PTT Motor Cover (NLA) | 1 | $ 152.71 | ||
| 14 | 31173-94620 Brush Holder
SKU: 31173-94620 Weight: 0.960000 Brand: Price: $ 264.32 |
Brush Holder | 1 | $ 264.32 | ||
| 15 | 31133-94610 Brush
SKU: 31133-94610 Weight: 0.060000 Brand: Price: $ 14.37 |
Brush | 2 | $ 14.37 | ||
| 16 | 31110-94610-0ED Yoke Assembly (NLA)
SKU: 31110-94610-0ED Weight: 1.000000 Brand: Price: $ 329.68 |
Yoke Assembly (NLA) | 1 | $ 329.68 | ||
| 17 | 31311-94610 Armature (NLA)
SKU: 31311-94610 Weight: 2.000000 Brand: Price: $ 489.02 |
Armature (NLA) | 1 | $ 489.02 | ||
| 18 | 48570-94610-0ED Reservoir Assembly (NLA)
SKU: 48570-94610-0ED Weight: 0.100000 Brand: Price: $ 199.05 |
Reservoir Assembly (NLA) | 1 | $ 199.05 | ||
| 19 | 33799-94610 Oil Seal
SKU: 33799-94610 Weight: 0.060000 Brand: Price: $ 29.71 |
Oil Seal | 1 | $ 29.71 | ||
| 20 | 09108-08137 Stud Bolt (8x40)
SKU: 09108-08137 Weight: 0.200000 Brand: Price: $ 5.23 |
Stud Bolt (8x40) | 3 | $ 5.23 | ||
| 21 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 3 | $ 2.52 | ||
| 22 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 3 | $ 1.49 | ||
| 23 | 09117-08046 Bolt (NLA)
SKU: 09117-08046 Weight: 0.100000 Brand: Price: $ 2.40 |
Bolt (NLA) | 1 | $ 2.40 | ||
| 24 | 48131-95200 Power Unit Spacer (NLA)
SKU: 48131-95200 Weight: 0.100000 Brand: Price: $ 3.95 |
Power Unit Spacer (NLA) | 1 | $ 3.95 | ||
| 25 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 3 | $ 2.52 | Opt: Port Side | |
| 26 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 3 | $ 1.49 | ||
| 27 | 48131-95281-0ED Power Unit Spacer (NLA)
SKU: 48131-95281-0ED Weight: 0.100000 Brand: Price: $ 17.82 |
Power Unit Spacer (NLA) | 1 | $ 17.82 | Opt: Port Side | |
| 28 | 09108-08063 Stud Bolt (8x45) (NLA)
SKU: 09108-08063 Weight: 0.100000 Brand: Price: $ 4.63 |
Stud Bolt (8x45) (NLA) | 1 | $ 4.63 | Opt: Port Side | |
| 29 | 09108-08130 Stud Bolt (8x20)
SKU: 09108-08130 Weight: 0.200000 Brand: Price: $ 5.67 |
Stud Bolt (8x20) | 2 | $ 5.67 | Opt: Port Side | |
| 30 | 09117-08056-XC0 Bolt (8x40)
SKU: 09117-08056-XC0 Weight: 0.060000 Brand: Price: $ 7.86 |
Bolt (8x40) | 2 | $ 7.86 | Opt: Port Side |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
