Suzuki DT 65 Parts Listings 1988 to 1990

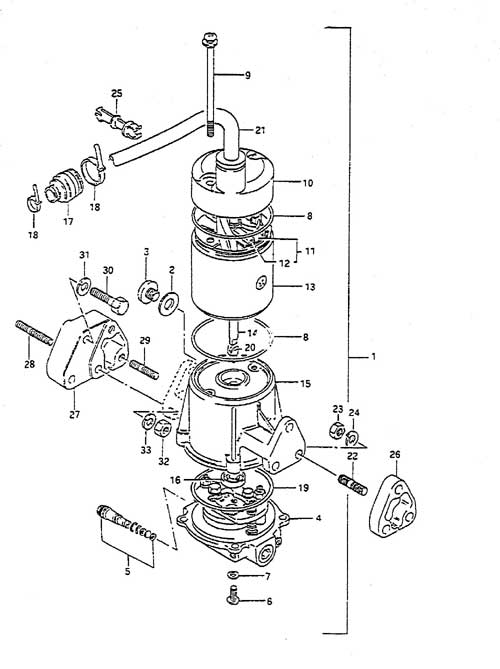

Fig. 25 - Power Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-2 | 48500-94711-02M Power Tilt Assembly (NLA)
SKU: 48500-94711-02M Weight: 0.100000 Brand: Price: $ 542.50 |
Power Tilt Assembly (NLA) | 1 | $ 542.50 | ||
| 1-2 | 48500-94783-02M Power Tilt Assembly (NLA)
SKU: 48500-94783-02M Weight: 0.100000 Brand: Price: $ 575.68 |
Power Tilt Assembly (NLA) | 1 | $ 575.68 | Opt: Port Side | |
| 2 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 1 | $ 1.60 | ||
| 3 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 1 | $ 6.59 | ||
| 4 | 48502-94530 Pump & Valve Body (NLA)
SKU: 48502-94530 Weight: 2.000000 Brand: Price: $ 1,043.54 |
Pump & Valve Body (NLA) | 1 | $ 1,043.54 | ||
| 5 | 48550-94600 Manual Valve Release
SKU: 48550-94600 Weight: 0.125000 Brand: Price: $ 52.95 |
Manual Valve Release | 1 | $ 52.95 | ||
| 6 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 4 | $ 1.97 | ||
| 7 | 09160-05032 Washer (NLA)
SKU: 09160-05032 Weight: 0.100000 Brand: Price: $ 0.94 |
Washer (NLA) | 4 | $ 0.94 | ||
| 8 | 09280-70005 O-Ring
SKU: 09280-70005 Weight: 0.060000 Brand: Price: $ 6.34 |
O-Ring | 2 | $ 6.34 | ||
| 9 | 31281-94510 Through Bolt
SKU: 31281-94510 Weight: 0.200000 Brand: Price: $ 15.49 |
Through Bolt | 2 | $ 15.49 | ||
| 10 | 31170-94520-0ED Upper Cover (NLA)
SKU: 31170-94520-0ED Weight: 0.100000 Brand: Price: $ 92.83 |
Upper Cover (NLA) | 1 | $ 92.83 | ||
| 11 | 31173-94521 Brush Holder Assembly (NLA)
SKU: 31173-94521 Weight: 0.100000 Brand: Price: $ 91.06 |
Brush Holder Assembly (NLA) | 1 | $ 91.06 | ||
| 12 | 31133-94521 Brush (NLA)
SKU: 31133-94521 Weight: 0.060000 Brand: Price: $ 12.52 |
Brush (NLA) | 2 | $ 12.52 | ||
| 13 | 31110-94520-0ED Yoke Assembly (NLA)
SKU: 31110-94520-0ED Weight: 0.100000 Brand: Price: $ 190.13 |
Yoke Assembly (NLA) | 1 | $ 190.13 | ||
| 14 | 31311-94600 Armature (NLA)
SKU: 31311-94600 Weight: 1.100000 Brand: Price: $ 319.74 |
Armature (NLA) | 1 | $ 319.74 | ||
| 15 | 48570-94600-0ED Reservoir Assembly (NLA)
SKU: 48570-94600-0ED Weight: 0.100000 Brand: Price: $ 133.59 |
Reservoir Assembly (NLA) | 1 | $ 133.59 | ||
| 16 | 09282-08003 Oil Seal (NLA)
SKU: 09282-08003 Weight: 0.060000 Brand: Price: $ 36.47 |
Oil Seal (NLA) | 1 | $ 36.47 | ||
| 17 | 33899-95500 PTT Cable Seal (NLA)
SKU: 33899-95500 Weight: 0.100000 Brand: Price: $ 7.29 |
PTT Cable Seal (NLA) | 1 | $ 7.29 | ||
| 18 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 2 | $ 4.73 | ||
| 19 | 48585-94520 Valve Body O-Ring
SKU: 48585-94520 Weight: 0.060000 Brand: Price: $ 5.34 |
Valve Body O-Ring | 1 | $ 5.34 | ||
| 20 | 48583-94520 Drive Joint
SKU: 48583-94520 Weight: 0.060000 Brand: Price: $ 16.56 |
Drive Joint | 1 | $ 16.56 | ||
| 21 | 33861-95600 PTT Cable (NLA)
SKU: 33861-95600 Weight: 0.100000 Brand: Price: $ 98.29 |
PTT Cable (NLA) | 1 | $ 98.29 | ||
| 22 | 09108-08137 Stud Bolt (8x40)
SKU: 09108-08137 Weight: 0.200000 Brand: Price: $ 5.23 |
Stud Bolt (8x40) | 3 | $ 5.23 | ||
| 23 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 3 | $ 2.52 | ||
| 24 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 3 | $ 1.49 | ||
| 25 | 33835-95500 PTT Motor Cable Clamp (NLA)
SKU: 33835-95500 Weight: 0.100000 Brand: Price: $ 2.06 |
PTT Motor Cable Clamp (NLA) | 1 | $ 2.06 | ||
| 26 | 48131-95200 Power Unit Spacer (NLA)
SKU: 48131-95200 Weight: 0.100000 Brand: Price: $ 3.95 |
Power Unit Spacer (NLA) | 1 | $ 3.95 | ||
| 27 | 48131-95281-0ED Power Unit Spacer (NLA)
SKU: 48131-95281-0ED Weight: 0.100000 Brand: Price: $ 17.82 |
Power Unit Spacer (NLA) | 1 | $ 17.82 | Opt: Port Side | |
| 28 | 09108-08063 Stud Bolt (8x45) (NLA)
SKU: 09108-08063 Weight: 0.100000 Brand: Price: $ 4.63 |
Stud Bolt (8x45) (NLA) | 1 | $ 4.63 | Opt: Port Side | |
| 29 | 09108-08130 Stud Bolt (8x20)
SKU: 09108-08130 Weight: 0.200000 Brand: Price: $ 5.67 |
Stud Bolt (8x20) | 2 | $ 5.67 | Opt: Port Side | |
| 30 | 09117-08056-XC0 Bolt (8x40)
SKU: 09117-08056-XC0 Weight: 0.060000 Brand: Price: $ 7.86 |
Bolt (8x40) | 2 | $ 7.86 | Opt: Port Side | |
| 32 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 3 | $ 2.52 | Opt: Port Side | |
| 33 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 3 | $ 1.49 | Opt: Port Side |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
