Suzuki DT 65 Parts Listings 1995

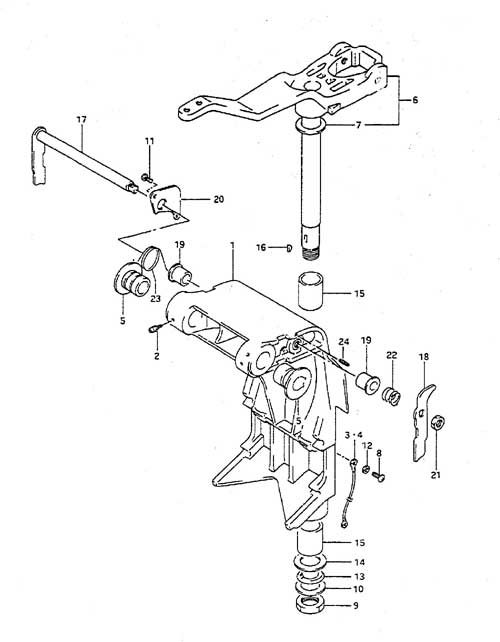

Fig. 23 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-95E01-0ED Swivel Bracket (NLA)
SKU: 43111-95E01-0ED Weight: 10.000000 Brand: Price: $ 316.77 |
Swivel Bracket (NLA) | 1 | $ 316.77 | ||
| 2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 4 | 36894-94401 Wire Lead (L:195)
SKU: 36894-94401 Weight: 0.060000 Brand: Price: $ 12.53 |
Wire Lead (L:195) | 1 | $ 12.53 | ||
| 5 | 43211-95510 Bushing (NLA)
SKU: 43211-95510 Weight: 0.060000 Brand: Price: $ 7.24 |
Bushing (NLA) | 2 | $ 7.24 | ||
| 6 | 43750-95253-0ED Steering Bracket (L) (NLA)
SKU: 43750-95253-0ED Weight: 0.100000 Brand: Price: $ 147.27 |
Steering Bracket (L) (NLA) | 1 | $ 147.27 | ||
| 7 | 09160-25052 Washer (NLA)
SKU: 09160-25052 Weight: 0.100000 Brand: Price: $ 2.21 |
Washer (NLA) | 1 | $ 2.21 | ||
| 8 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 9 | 09140-24010 Nut
SKU: 09140-24010 Weight: 0.100000 Brand: Price: $ 4.50 |
Nut | 1 | $ 4.50 | ||
| 10 | 09160-25052 Washer (NLA)
SKU: 09160-25052 Weight: 0.100000 Brand: Price: $ 2.21 |
Washer (NLA) | 1 | $ 2.21 | ||
| 11 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 12 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 | ||
| 13 | 09166-25007 Washer (NLA)
SKU: 09166-25007 Weight: 0.100000 Brand: Price: $ 1.01 |
Washer (NLA) | 1 | $ 1.01 | ||
| 14-1 | 09181-26006 Shim (0.3) (NLA)
SKU: 09181-26006 Weight: 0.100000 Brand: Price: $ 2.03 |
Shim (0.3) (NLA) | 2 | $ 2.03 | ||
| 14-2 | 09181-26007 Shim (0.5) (NLA)
SKU: 09181-26007 Weight: 0.100000 Brand: Price: $ 1.81 |
Shim (0.5) (NLA) | 2 | $ 1.81 | ||
| 15 | 09306-26005 Bushing (NLA)
SKU: 09306-26005 Weight: 0.100000 Brand: Price: $ 2.56 |
Bushing (NLA) | 2 | $ 2.56 | ||
| 16 | 09420-05003 Key (NLA)
SKU: 09420-05003 Weight: 0.100000 Brand: Price: $ 2.00 |
Key (NLA) | 1 | $ 2.00 | ||
| 17 | 41220-95E00 Starboard Tilt Lock Lever (NLA)
SKU: 41220-95E00 Weight: 0.100000 Brand: Price: $ 78.11 |
Starboard Tilt Lock Lever (NLA) | 1 | $ 78.11 | ||
| 18 | 41221-95E30 Port Tilt Lock Lever (NLA)
SKU: 41221-95E30 Weight: 0.100000 Brand: Price: $ 14.97 |
Port Tilt Lock Lever (NLA) | 1 | $ 14.97 | ||
| 19 | 41224-95E01 Tilt Stopper Rod Bushing
SKU: 41224-95E01 Weight: 0.060000 Brand: Price: $ 4.62 |
Tilt Stopper Rod Bushing | 1 | $ 4.62 | ||
| 20 | 41227-95E00 Spring Stopper (NLA)
SKU: 41227-95E00 Weight: 0.100000 Brand: Price: $ 4.91 |
Spring Stopper (NLA) | 1 | $ 4.91 | ||
| 21 | 09140-10032 Nut
SKU: 09140-10032 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut | 2 | $ 2.04 | ||
| 22 | 09440-19028 Spring
SKU: 09440-19028 Weight: 0.060000 Brand: Price: $ 3.46 |
Spring | 1 | $ 3.46 | ||
| 23 | 09444-34001 Spring (NLA)
SKU: 09444-34001 Weight: 0.100000 Brand: Price: $ 3.89 |
Spring (NLA) | 1 | $ 3.89 | ||
| 24 | 09205-06013 Pin
SKU: 09205-06013 Weight: 0.060000 Brand: Price: $ 1.57 |
Pin | 1 | $ 1.57 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
