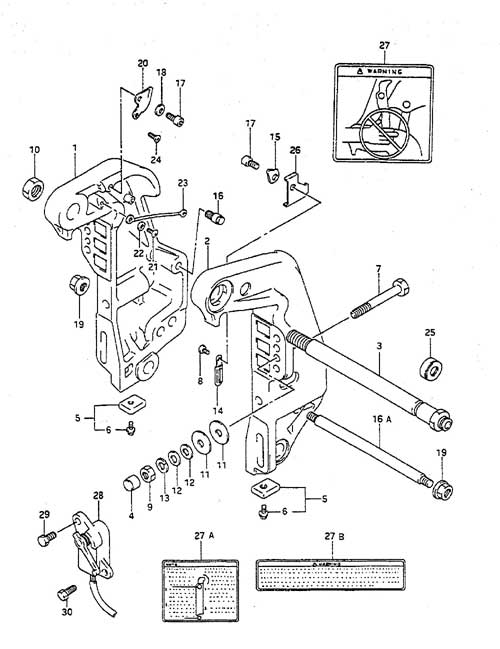

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
13 | 09162-12005 Lock Washer SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 4 | $ 2.06 | ||
1 | 41111-95E03-0ED Starboard Clamp Bracket SKU: 41111-95E03-0ED Weight: 10.000000 Brand: Price: $ 310.94 |
Starboard Clamp Bracket | 1 | $ 310.94 | ||
2 | 41121-95E05-0ED Port Clamp Bracket (NLA) SKU: 41121-95E05-0ED Weight: 0.100000 Brand: Price: $ 170.65 |
Port Clamp Bracket (NLA) | 1 | $ 170.65 | ||
3 | 41130-95541 Clamp Bracket Shaft SKU: 41130-95541 Weight: 2.000000 Brand: Price: $ 408.05 |
Clamp Bracket Shaft | 1 | $ 408.05 | ||
4 | 41153-94500 Transom Bolt Cap SKU: 41153-94500 Weight: 0.060000 Brand: Price: $ 2.96 |
Transom Bolt Cap | 4 | $ 2.96 | ||
5 | 55320-95311 Zinc Anode SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 2 | $ 8.74 | ||
6 | 09116-06094 Bolt (6x15) SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | ||
7 | 09100-12093 Transom Bolt (12x100) SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | Requires Ref# 31 | |
8 | 09125-06063 Screw (6x10) SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
9 | 09140-12028 Nut SKU: 09140-12028 Weight: 0.060000 Brand: Price: $ 3.60 |
Nut | 4 | $ 3.60 | ||
10 | 09159-22006 Nut SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
11 | 09160-12044 Washer (12.5x35x3.2) SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
12 | 09160-12066 Washer (12.5x22x2.5) SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 4 | $ 1.80 | ||
15 | 41225-95E00 Tilt Stopper Plate (NLA) SKU: 41225-95E00 Weight: 0.100000 Brand: Price: $ 3.69 |
Tilt Stopper Plate (NLA) | 1 | $ 3.69 | ||
16A | 45421-87D03 Tilt Lock Pin SKU: 45421-87D03 Weight: 0.750000 Brand: Price: $ 23.88 |
Tilt Lock Pin | 1 | $ 23.88 | ||
17 | 09106-10065 Bolt (10x20) SKU: 09106-10065 Weight: 0.050000 Brand: Price: $ 6.19 |
Bolt (10x20) | 2 | $ 6.19 | ||
18 | 09160-10082 Washer (10.5x19x2.0) SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 1 | $ 1.63 | ||
19 | 09159-14020 Nut (14mm) SKU: 09159-14020 Weight: 0.060000 Brand: Price: $ 4.73 |
Nut (14mm) | 2 | $ 4.73 | ||
20 | 41241-95E00 Tilt Lock Lever Guide (NLA) SKU: 41241-95E00 Weight: 0.100000 Brand: Price: $ 6.07 |
Tilt Lock Lever Guide (NLA) | 1 | $ 6.07 | ||
21 | 09125-06063 Screw (6x10) SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
22 | 09161-06120 Washer (6.3x12.5x1.0) (NLA) SKU: 09161-06120 Weight: 0.060000 Brand: Price: $ 1.41 |
Washer (6.3x12.5x1.0) (NLA) | 1 | $ 1.41 | ||
23 | 36894-87D00 Wire Lead (L:195) SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | ||
24 | 09126-05007 Screw (5x12) SKU: 09126-05007 Weight: 0.060000 Brand: Price: $ 2.02 |
Screw (5x12) | 1 | $ 2.02 | ||
25 | 41161-94400 Steering Cable Seal SKU: 41161-94400 Weight: 0.060000 Brand: Price: $ 12.60 |
Steering Cable Seal | 1 | $ 12.60 | ||
26 | 41242-95E00 Tilt Lock Arm Guide (NLA) SKU: 41242-95E00 Weight: 0.100000 Brand: Price: $ 8.03 |
Tilt Lock Arm Guide (NLA) | 1 | $ 8.03 | ||
27 | 41337-95E00 Tilt Lock Warning Mark (NLA) SKU: 41337-95E00 Weight: 0.100000 Brand: Price: $ 3.84 |
Tilt Lock Warning Mark (NLA) | 1 | $ 3.84 | ||
27A | 41336-95E01 Tilt Lock Mark (NLA) SKU: 41336-95E01 Weight: 0.100000 Brand: Price: $ 3.48 |
Tilt Lock Mark (NLA) | 1 | $ 3.48 | ||
27B | 48171-95E00 PTT Mark (NLA) SKU: 48171-95E00 Weight: 0.100000 Brand: Price: $ 3.25 |
PTT Mark (NLA) | 1 | $ 3.25 | ||
28 | 34801-94710 Trim Sender SKU: 34801-94710 Weight: 1.000000 Brand: Price: $ 284.37 |
Trim Sender | 1 | $ 284.37 | ||
29 | 01550-06167 BOLT SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | Upper | |
30 | 09100-06131 Bolt (6x12) SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 1 | $ 2.10 | Lower | |
31 | 09159-12014 Nut (12x17) SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
