Suzuki DT 65 Parts Listings 1988 to 1997

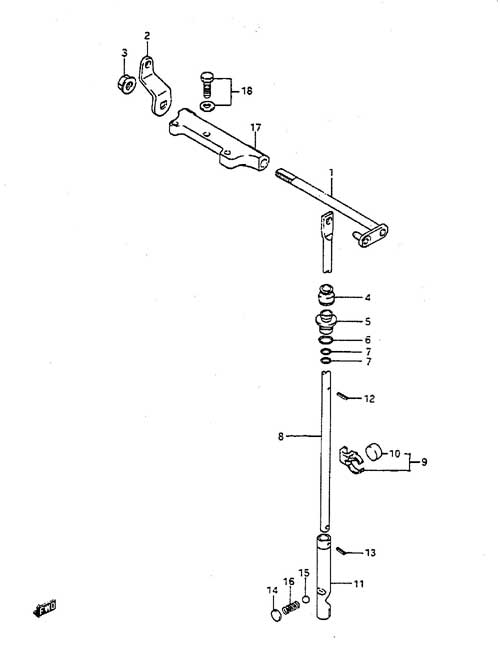

Fig. 18 - Clutch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21210-94703 Clutch Shaft
SKU: 21210-94703 Weight: 0.140000 Brand: Price: $ 46.11 |
Clutch Shaft | 1 | $ 46.11 | ||
| 2 | 21213-94700 Clutch Shaft Side Arm
SKU: 21213-94700 Weight: 0.060000 Brand: Price: $ 5.54 |
Clutch Shaft Side Arm | 1 | $ 5.54 | ||
| 3 | 08319-31087 Nut
SKU: 08319-31087 Weight: 0.060000 Brand: Price: $ 2.33 |
Nut | 1 | $ 2.33 | ||
| 4-1 | 25223-95200 Shift Rod Dust Seal (NLA)
SKU: 25223-95200 Weight: 0.060000 Brand: Price: $ 4.89 |
Shift Rod Dust Seal (NLA) | 1 | $ 4.89 | S/N 462111 Older | |
| 4-2 | 25222-96301 Shift Rod Boot
SKU: 25222-96301 Weight: 0.060000 Brand: Price: $ 6.28 |
Shift Rod Boot | 1 | $ 6.28 | S/N 462112 Newer | |
| 5-1 | 25211-94401 Shift Rod Guide
SKU: 25211-94401 Weight: 0.060000 Brand: Price: $ 19.86 |
Shift Rod Guide | 1 | $ 19.86 | S/N 462111 Older Requires Ref# 4-2 | |
| 5-2 | 25211-94401 Shift Rod Guide
SKU: 25211-94401 Weight: 0.060000 Brand: Price: $ 19.86 |
Shift Rod Guide | 1 | $ 19.86 | S/N 462112 Newer | |
| 6 | 09280-11005 Shift Rod O-Ring
SKU: 09280-11005 Weight: 0.060000 Brand: Price: $ 4.43 |
Shift Rod O-Ring | 1 | $ 4.43 | ||
| 7 | 09280-08005 O-Ring
SKU: 09280-08005 Weight: 0.060000 Brand: Price: $ 1.78 |
O-Ring | 2 | $ 1.78 | ||
| 8 | 25111-95204 Shift Rod (L)
SKU: 25111-95204 Weight: 6.000000 Brand: Price: $ 52.95 |
Shift Rod (L) | 1 | $ 52.95 | Type: L | |
| 9 | 25230-94300 Gear Case Magnet Set
SKU: 25230-94300 Weight: 0.060000 Brand: Price: $ 17.66 |
Gear Case Magnet Set | 1 | $ 17.66 | ||
| 10 | 25232-94300 Gear Case Magnet
SKU: 25232-94300 Weight: 0.125000 Brand: Price: $ 3.25 |
Gear Case Magnet | 1 | $ 3.25 | ||
| 11 | 25311-947V0 Shift Cam
SKU: 25311-947V0 Weight: 0.160000 Brand: Price: $ 138.15 |
Shift Cam | 1 | $ 138.15 | ||
| 12 | 09205-02004 Spring Pin (2.5x12)
SKU: 09205-02004 Weight: 0.060000 Brand: Price: $ 0.92 |
Spring Pin (2.5x12) | 1 | $ 0.92 | ||
| 13 | 09205-03021 Spring Pin (3.5x12)
SKU: 09205-03021 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (3.5x12) | 1 | $ 1.07 | ||
| 14 | 21121-93300 Clutch Notch Plate
SKU: 21121-93300 Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Notch Plate | 1 | $ 1.46 | ||
| 15 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
| 16 | 09440-07033 Cam Notch Spring
SKU: 09440-07033 Weight: 0.060000 Brand: Price: $ 1.51 |
Cam Notch Spring | 1 | $ 1.51 | ||
| 17 | 21311-94702 Clutch Shaft Holder (NLA)
SKU: 21311-94702 Weight: 0.060000 Brand: Price: $ 10.14 |
Clutch Shaft Holder (NLA) | 1 | $ 10.14 | ||
| 18 | 09116-06204 Bolt (6x20)
SKU: 09116-06204 Weight: 0.060000 Brand: Price: $ 3.10 |
Bolt (6x20) | 3 | $ 3.10 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
