Suzuki DT 65 Parts Listings 1988 to 1997

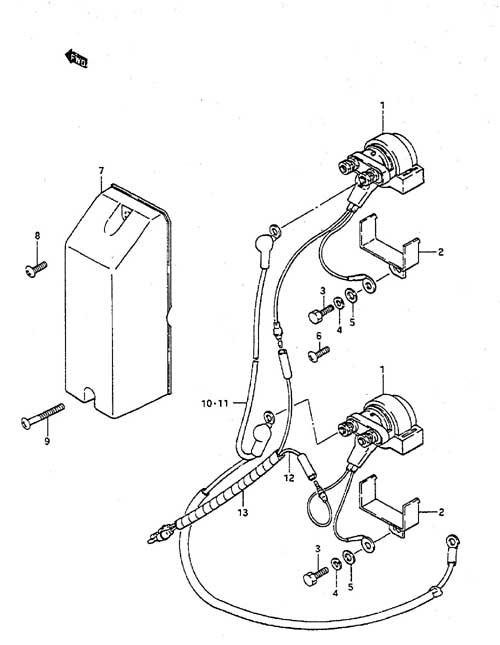

Fig. 14 - Trim Relay
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 38410-94540 PTT Relay Assembly (NLA)
SKU: 38410-94540 Weight: 0.380000 Brand: Price: $ 131.56 |
PTT Relay Assembly (NLA) | 2 | $ 131.56 | 1988 to 1990 | |
| 1-2 | 38410-94552 PTT Relay Assembly
SKU: 38410-94552 Weight: 0.500000 Brand: Price: $ 140.10 |
PTT Relay Assembly | 2 | $ 140.10 | 1991 to 1997 | |
| 2-1 | 38412-94500 PTT Bracket (NLA)
SKU: 38412-94500 Weight: 0.100000 Brand: Price: $ 3.06 |
PTT Bracket (NLA) | 2 | $ 3.06 | 1988 to 1990 | |
| 2-2 | 38412-94700 Relay Bracket (NLA)
SKU: 38412-94700 Weight: 0.100000 Brand: Price: $ 4.18 |
Relay Bracket (NLA) | 2 | $ 4.18 | 1991 to 1997 | |
| 3 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | 1988 to 1990 | |
| 4 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | 1988 to 1990 | |
| 5 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | 1988 to 1990 | |
| 6 | 02112-36167 SCREW
SKU: 02112-36167 Weight: 0.060000 Brand: Price: $ 2.34 |
SCREW | 2 | $ 2.34 | 1991 to 1997 | |
| 7 | 38425-94701 Trim Relay Cover (NLA)
SKU: 38425-94701 Weight: 0.100000 Brand: Price: $ 9.16 |
Trim Relay Cover (NLA) | 1 | $ 9.16 | ||
| 8-1 | 02112-0616A SCREW
SKU: 02112-0616A Weight: 0.200000 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | 1988 to 1993 | |
| 8-2 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 1 | $ 1.44 | 1994 to 1997 | |
| 9-1 | 02112-0640A SCREW
SKU: 02112-0640A Weight: 0.200000 Brand: Price: $ 1.96 |
SCREW | 1 | $ 1.96 | 1988 to 1993 | |
| 9-2 | 02112-06407 SCREW
SKU: 02112-06407 Weight: 0.200000 Brand: Price: $ 1.78 |
SCREW | 1 | $ 1.78 | 1994 to 1997 | |
| 10 | 33831-94702 PTT Relay Cable Assembly
SKU: 33831-94702 Weight: 0.100000 Brand: Price: $ 14.59 |
PTT Relay Cable Assembly | 1 | $ 14.59 | L:680 | |
| 11-1 | 33832-95510 PTT Cable Assembly (NLA)
SKU: 33832-95510 Weight: 0.100000 Brand: Price: $ 10.88 |
PTT Cable Assembly (NLA) | 1 | $ 10.88 | 1988 to 1996 | |
| 11-2 | 33832-95511 PTT Cable Assembly (NLA)
SKU: 33832-95511 Weight: 0.100000 Brand: Price: $ 12.36 |
PTT Cable Assembly (NLA) | 1 | $ 12.36 | 1997 | |
| 12-1 | 36645-94701 Relay Control Lead (NLA)
SKU: 36645-94701 Weight: 0.100000 Brand: Price: $ 5.87 |
Relay Control Lead (NLA) | 1 | $ 5.87 | 1988 | |
| 12-2 | 36645-94712 Relay Control Lead (NLA)
SKU: 36645-94712 Weight: 0.100000 Brand: Price: $ 8.06 |
Relay Control Lead (NLA) | 1 | $ 8.06 | 1989 to 1997 | |
| 13 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
