Suzuki DT 65 Parts Listings 1988 to 1997

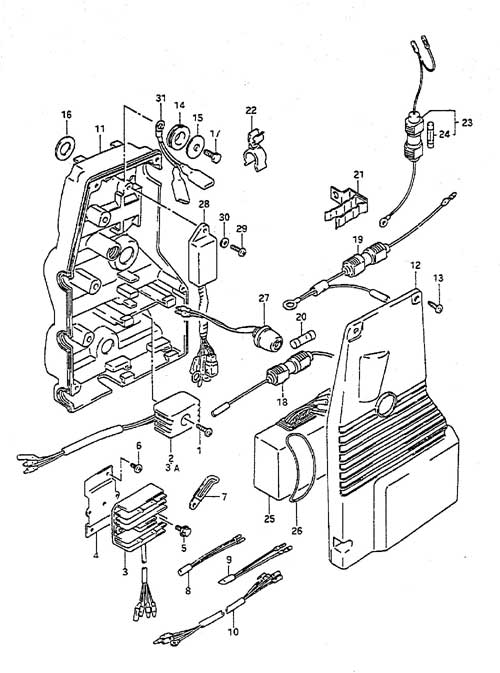

Fig. 13 - Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 02142-05257 SCREW 5 X 20
SKU: 02142-05257 Weight: 0.062500 Brand: Price: $ 1.48 |
SCREW 5 X 20 | 1 | $ 1.48 | 1994 to 1997 | |
| 2 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | 1988 to 1990 | |
| 3 | 32800-94620 Rectifier & Regulator
SKU: 32800-94620 Weight: 0.500000 Brand: Price: $ 133.77 |
Rectifier & Regulator | 1 | $ 133.77 | 1991 to 1993 | |
| 3A | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | 1994 to 1997 | |
| 4 | 32801-94702 Rectifier & Regulator Bracket (NLA)
SKU: 32801-94702 Weight: 0.100000 Brand: Price: $ 11.19 |
Rectifier & Regulator Bracket (NLA) | 1 | $ 11.19 | ||
| 5 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | 1991 to 1993 | |
| 6 | 02112-05107 5 X 10 CROSS SC
SKU: 02112-05107 Weight: 0.060000 Brand: Price: $ 1.44 |
5 X 10 CROSS SC | 2 | $ 1.44 | 1991 to 1997 | |
| 7 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | 1991 to 1997 | |
| 9 | 36840-95D00 Tachometer Lead
SKU: 36840-95D00 Weight: 0.100000 Brand: Price: $ 11.58 |
Tachometer Lead | 1 | $ 11.58 | 1991 to 1997 | |
| 10 | 36810-94601 Rectifier Extension Lead (NLA)
SKU: 36810-94601 Weight: 0.100000 Brand: Price: $ 12.20 |
Rectifier Extension Lead (NLA) | 1 | $ 12.20 | ||
| 11-1 | 32890-94710 Electric Parts Holder (NLA)
SKU: 32890-94710 Weight: 0.100000 Brand: Price: $ 14.46 |
Electric Parts Holder (NLA) | 1 | $ 14.46 | 1988 | |
| 11-2 | 32890-94720 Electric Parts Holder (NLA)
SKU: 32890-94720 Weight: 0.100000 Brand: Price: $ 20.42 |
Electric Parts Holder (NLA) | 1 | $ 20.42 | 1989 to 1997 | |
| 12-1 | 32891-94700 Electric Parts Holder Cover (NLA)
SKU: 32891-94700 Weight: 0.100000 Brand: Price: $ 9.91 |
Electric Parts Holder Cover (NLA) | 1 | $ 9.91 | 1988 | |
| 12-2 | 32891-94711 Electric Parts Holder Cover (NLA)
SKU: 32891-94711 Weight: 1.000000 Brand: Price: $ 13.49 |
Electric Parts Holder Cover (NLA) | 1 | $ 13.49 | 1989 to 1997 | |
| 13 | 03212-0516B SCREW
SKU: 03212-0516B Weight: 0.060000 Brand: Price: $ 2.49 |
SCREW | 4 | $ 2.49 | ||
| 14 | 09320-12090 Cushion
SKU: 09320-12090 Weight: 0.060000 Brand: Price: $ 1.91 |
Cushion | 3 | $ 1.91 | ||
| 15 | 09160-12089 Washer
SKU: 09160-12089 Weight: 0.200000 Brand: Price: $ 1.97 |
Washer | 3 | $ 1.97 | ||
| 16 | 09160-06054 Washer (6.5x22.1.6)
SKU: 09160-06054 Weight: 0.062500 Brand: Price: $ 1.63 |
Washer (6.5x22.1.6) | 3 | $ 1.63 | ||
| 17 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 18 | 36740-94720 Fuse Case Assembly (NLA)
SKU: 36740-94720 Weight: 0.100000 Brand: Price: $ 9.64 |
Fuse Case Assembly (NLA) | 1 | $ 9.64 | 1988 | |
| 19 | 36740-87D00 Fuse Case Assembly (NLA)
SKU: 36740-87D00 Weight: 0.100000 Brand: Price: $ 10.49 |
Fuse Case Assembly (NLA) | 1 | $ 10.49 | 1988 | |
| 20 | 09481-20001 20 Amp Fuse
SKU: 09481-20001 Weight: 0.060000 Brand: Price: $ 2.54 |
20 Amp Fuse | 1 | $ 2.54 | ||
| 21 | 36791-87E00 Fuse Case Holder (NLA)
SKU: 36791-87E00 Weight: 0.100000 Brand: Price: $ 3.94 |
Fuse Case Holder (NLA) | 1 | $ 3.94 | 1988 to 1993 | |
| 22 | 09408-00045 Clamp
SKU: 09408-00045 Weight: 0.100000 Brand: Price: $ 3.38 |
Clamp | 1 | $ 3.38 | 1994 to 1997 | |
| 23 | 36740-94771 Fuse Case Assembly (NLA)
SKU: 36740-94771 Weight: 0.100000 Brand: Price: $ 25.52 |
Fuse Case Assembly (NLA) | 1 | $ 25.52 | 1989 to 1997 | |
| 24 | 09481-25001 25 Amp Fuse
SKU: 09481-25001 Weight: 0.060000 Brand: Price: $ 2.06 |
25 Amp Fuse | 1 | $ 2.06 | ||
| 25-1 | 32900-94711 CDI Unit Assembly (NLA)
SKU: 32900-94711 Weight: 5.000000 Brand: Price: $ 951.85 |
CDI Unit Assembly (NLA) | 1 | $ 951.85 | 1988 | |
| 25-2 | 32900-94750 CDI Unit Assembly (NLA)
SKU: 32900-94750 Weight: 5.000000 Brand: Price: $ 995.91 |
CDI Unit Assembly (NLA) | 1 | $ 995.91 | 1989 to 1997 | |
| 26-1 | 09280-70004 O-Ring
SKU: 09280-70004 Weight: 0.100000 Brand: Price: $ 3.91 |
O-Ring | 2 | $ 3.91 | 1988 | |
| 26-2 | 09280-70005 O-Ring
SKU: 09280-70005 Weight: 0.060000 Brand: Price: $ 6.34 |
O-Ring | 1 | $ 6.34 | 1989 to 1997 | |
| 27 | 37930-94706 Oil Warning Reset Switch Assembly (NLA)
SKU: 37930-94706 Weight: 0.100000 Brand: Price: $ 17.10 |
Oil Warning Reset Switch Assembly (NLA) | 1 | $ 17.10 | 1988 | |
| 28-1 | 37875-94630 Low Oil Warning Unit (NLA)
SKU: 37875-94630 Weight: 0.100000 Brand: Price: $ 133.28 |
Low Oil Warning Unit (NLA) | 1 | $ 133.28 | 1988 | |
| 28-2 | 37875-94641 Low Oil Warning Unit
SKU: 37875-94641 Weight: 0.500000 Brand: Price: $ 175.62 |
Low Oil Warning Unit | 1 | $ 175.62 | 1989 to 1997 | |
| 29 | 03212-0516B SCREW
SKU: 03212-0516B Weight: 0.060000 Brand: Price: $ 2.49 |
SCREW | 1 | $ 2.49 | ||
| 30 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | ||
| 31 | 33445-94710 Lead (NLA)
SKU: 33445-94710 Weight: 0.100000 Brand: Price: $ 4.30 |
Lead (NLA) | 1 | $ 4.30 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
