Suzuki DT 65 Parts Listings 1988 to 1997

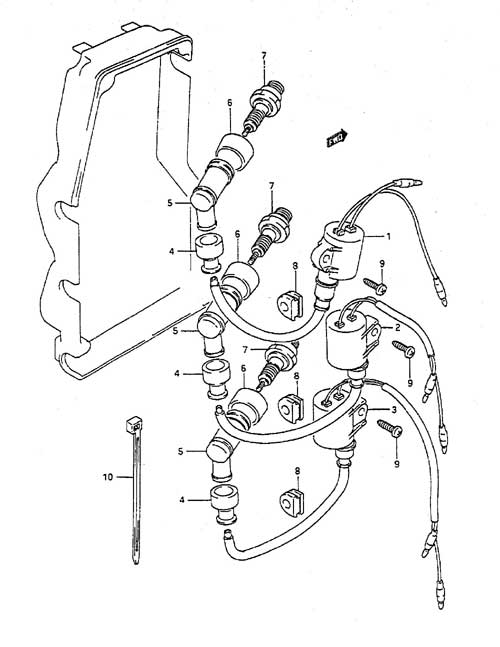

Fig. 12 - Ignition
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33410-95D11 Ignition Coil Assembly
SKU: 33410-95D11 Weight: 0.260000 Brand: Price: $ 65.91 |
Ignition Coil Assembly | 1 | $ 65.91 | ||
| 2 | 33410-95D11 Ignition Coil Assembly
SKU: 33410-95D11 Weight: 0.260000 Brand: Price: $ 65.91 |
Ignition Coil Assembly | 1 | $ 65.91 | ||
| 3 | 33410-95D11 Ignition Coil Assembly
SKU: 33410-95D11 Weight: 0.260000 Brand: Price: $ 65.91 |
Ignition Coil Assembly | 1 | $ 65.91 | ||
| 4 | 33542-38B00 Spark Plug Cap Seal
SKU: 33542-38B00 Weight: 0.060000 Brand: Price: $ 4.58 |
Spark Plug Cap Seal | 3 | $ 4.58 | 1988 to 1993 | |
| 5-1 | 33510-95520 Spark Plug Cap
SKU: 33510-95520 Weight: 0.060000 Brand: Price: $ 18.63 |
Spark Plug Cap | 3 | $ 18.63 | 1988 | |
| 5-2 | 33510-87D20 Spark Plug Cap
SKU: 33510-87D20 Weight: 0.060000 Brand: Price: $ 35.00 |
Spark Plug Cap | 3 | $ 35.00 | 1989 to 1997 | |
| 5-3 | 33510-97313 Spark Plug Cap
SKU: 33510-97313 Weight: 0.060000 Brand: Price: $ 15.55 |
Spark Plug Cap | 3 | $ 15.55 | Opt: 1988 to 1993 | |
| 5-4 | 33510-98601 Spark Plug Cap
SKU: 33510-98601 Weight: 0.060000 Brand: Price: $ 23.22 |
Spark Plug Cap | 3 | $ 23.22 | Opt: 1994 to 1996 | |
| 6 | 33541-93950 Spark Plug Seal
SKU: 33541-93950 Weight: 0.060000 Brand: Price: $ 9.53 |
Spark Plug Seal | 3 | $ 9.53 | 1988 to 1993 | |
| 7-1 | 09482-00198 NGK B8HS Spark Plug
SKU: 09482-00198 Weight: 0.187500 Brand: Price: $ 3.27 |
NGK B8HS Spark Plug | 3 | $ 3.27 | 1988 to 1992 | |
| 7-2 | 09482-00370 NGK BR8HS Spark Plug
SKU: 09482-00370 Weight: 0.187500 Brand: Price: $ 3.57 |
NGK BR8HS Spark Plug | 3 | $ 3.57 | 1993 to 1997 | |
| 8 | 09309-06007 Grommet (NLA)
SKU: 09309-06007 Weight: 0.060000 Brand: Price: $ 2.06 |
Grommet (NLA) | 3 | $ 2.06 | ||
| 9-1 | 03212-15259 Screw (NLA)
SKU: 03212-15259 Weight: 0.100000 Brand: Price: $ 0.97 |
Screw (NLA) | 3 | $ 0.97 | 1988 to 1993 | |
| 9-2 | 03242-05253 Screw (NLA)
SKU: 03242-05253 Weight: 0.100000 Brand: Price: $ 1.17 |
Screw (NLA) | 3 | $ 1.17 | 1994 to 1997 | |
| 10 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 3 | $ 2.52 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
