Suzuki DT 65 Parts Listings 1988 to 1997

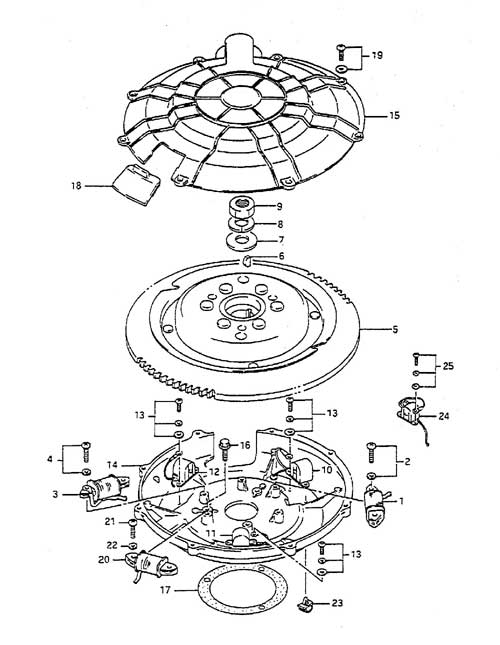

Fig. 11 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 32120-94700 Battery Charge Coil (NLA)
SKU: 32120-94700 Weight: 0.320000 Brand: Price: $ 140.57 |
Battery Charge Coil (NLA) | 1 | $ 140.57 | 1988 to 1993 | |
| 1-2 | 32120-94720 Battery Charge Coil
SKU: 32120-94720 Weight: 0.400000 Brand: Price: $ 92.66 |
Battery Charge Coil | 1 | $ 92.66 | 1994 to 1997 | |
| 2 | 02112-36257 SCREW
SKU: 02112-36257 Weight: 0.060000 Brand: Price: $ 2.72 |
SCREW | 2 | $ 2.72 | ||
| 3-1 | 32140-94700 Primary Ignition Coil
SKU: 32140-94700 Weight: 0.300000 Brand: Price: $ 168.12 |
Primary Ignition Coil | 1 | $ 168.12 | 1988 to 1993 | |
| 3-2 | 32140-94710 Capacitor Charge Coil
SKU: 32140-94710 Weight: 0.320000 Brand: Price: $ 110.79 |
Capacitor Charge Coil | 1 | $ 110.79 | 1994 to 1997 | |
| 4 | 02112-36207 Screw (NLA)
SKU: 02112-36207 Weight: 0.060000 Brand: Price: $ 1.35 |
Screw (NLA) | 2 | $ 1.35 | ||
| 5-1 | 32102-94700 Flywheel (NLA)
SKU: 32102-94700 Weight: 0.100000 Brand: Price: $ 367.20 |
Flywheel (NLA) | 1 | $ 367.20 | 1988 | |
| 5-2 | 32102-94711 Flywheel (NLA)
SKU: 32102-94711 Weight: 0.100000 Brand: Price: $ 474.28 |
Flywheel (NLA) | 1 | $ 474.28 | 1989 to 1993 | |
| 5-3 | 32102-94720 Flywheel (NLA)
SKU: 32102-94720 Weight: 10.000000 Brand: Price: $ 746.63 |
Flywheel (NLA) | 1 | $ 746.63 | 1994 to 1997 | |
| 6 | 08341-31059 Woodruff Key 5mm
SKU: 08341-31059 Weight: 0.060000 Brand: Price: $ 2.52 |
Woodruff Key 5mm | 1 | $ 2.52 | ||
| 7 | 09160-18011 Washer
SKU: 09160-18011 Weight: 0.062500 Brand: Price: $ 5.96 |
Washer | 1 | $ 5.96 | ||
| 8 | 09164-18001 Washer
SKU: 09164-18001 Weight: 0.200000 Brand: Price: $ 3.30 |
Washer | 1 | $ 3.30 | ||
| 9 | 09140-18014 Nut
SKU: 09140-18014 Weight: 0.060000 Brand: Price: $ 4.13 |
Nut | 1 | $ 4.13 | ||
| 10 | 32160-94710 Ignition Timing Coil #1 (NLA)
SKU: 32160-94710 Weight: 0.250000 Brand: Price: $ 131.61 |
Ignition Timing Coil #1 (NLA) | 1 | $ 131.61 | ||
| 11 | 32140-94710 Capacitor Charge Coil
SKU: 32140-94710 Weight: 0.320000 Brand: Price: $ 110.79 |
Capacitor Charge Coil | 1 | $ 110.79 | ||
| 12 | 32180-94710 #3 Ignition Timing Coil (NLA)
SKU: 32180-94710 Weight: 0.100000 Brand: Price: $ 131.61 |
#3 Ignition Timing Coil (NLA) | 1 | $ 131.61 | ||
| 13 | 02112-75107 Screw (NLA)
SKU: 02112-75107 Weight: 0.100000 Brand: Price: $ 1.94 |
Screw (NLA) | 6 | $ 1.94 | ||
| 14-1 | 11411-94711-0ED Magneto Case (NLA)
SKU: 11411-94711-0ED Weight: 0.100000 Brand: Price: $ 46.43 |
Magneto Case (NLA) | 1 | $ 46.43 | 1988 to 1994 | |
| 14-2 | 11411-94712-0ED Magneto Case (NLA)
SKU: 11411-94712-0ED Weight: 0.100000 Brand: Price: $ 67.85 |
Magneto Case (NLA) | 1 | $ 67.85 | 1995 to 1997 | |
| 15 | 11421-94710 Magneto Cover (NLA)
SKU: 11421-94710 Weight: 1.000000 Brand: Price: $ 19.12 |
Magneto Cover (NLA) | 1 | $ 19.12 | ||
| 16 | 02162-06257 SCREW
SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW | 3 | $ 1.49 | ||
| 17 | 11413-94710 Upper Oil Seal Hsg Gasket
SKU: 11413-94710 Weight: 0.060000 Brand: Price: $ 6.01 |
Upper Oil Seal Hsg Gasket | 1 | $ 6.01 | ||
| 18 | 11422-94700 Cap (NLA)
SKU: 11422-94700 Weight: 0.100000 Brand: Price: $ 3.00 |
Cap (NLA) | 1 | $ 3.00 | ||
| 19-1 | 09125-06022 Screw (NLA)
SKU: 09125-06022 Weight: 0.100000 Brand: Price: $ 1.09 |
Screw (NLA) | 9 | $ 1.09 | 1988 to 1996 | |
| 19-2 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 9 | $ 1.38 | 1997 | |
| 20-1 | 32120-94710 Battery Charge Coil (NLA)
SKU: 32120-94710 Weight: 0.100000 Brand: Price: $ 109.69 |
Battery Charge Coil (NLA) | 1 | $ 109.69 | Opt: 1988 to 1993 | |
| 20-2 | 32120-94730 Battery Charge Coil (NLA)
SKU: 32120-94730 Weight: 0.500000 Brand: Price: $ 135.28 |
Battery Charge Coil (NLA) | 1 | $ 135.28 | Opt: 1994 to 1997 | |
| 21 | 02112-06257 6X25CROSS SCREW
SKU: 02112-06257 Weight: 0.060000 Brand: Price: $ 1.78 |
6X25CROSS SCREW | 2 | $ 1.78 | Optional | |
| 22 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | Optional | |
| 23 | 09403-10313 Clamp (NLA)
SKU: 09403-10313 Weight: 0.100000 Brand: Price: $ 4.45 |
Clamp (NLA) | 1 | $ 4.45 | ||
| 24 | 32150-87E20 Gear Counter Coil (NLA)
SKU: 32150-87E20 Weight: 0.200000 Brand: Price: $ 140.57 |
Gear Counter Coil (NLA) | 1 | $ 140.57 | ||
| 25 | 02112-35127 SCREW 5X12
SKU: 02112-35127 Weight: 0.060000 Brand: Price: $ 1.54 |
SCREW 5X12 | 2 | $ 1.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
