Suzuki DT 65 Parts Listings 1993 to 1997

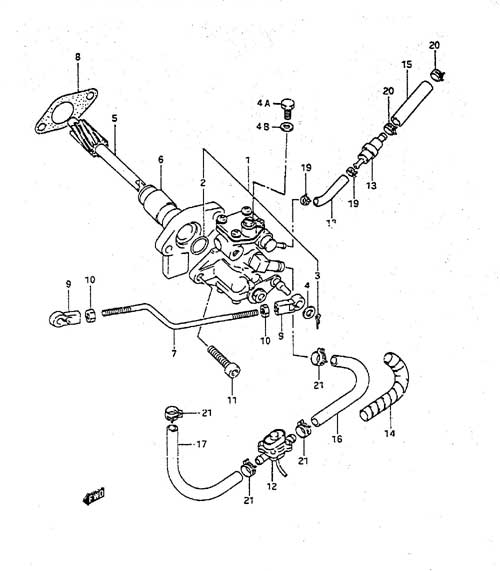

Fig. 7A - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 16100-94740 Oil Pump Assembly (NLA)
SKU: 16100-94740 Weight: 0.100000 Brand: Price: $ 124.31 |
Oil Pump Assembly (NLA) | 1 | $ 124.31 | ||
| 1-2 | 16100-94741 Oil Pump Assembly (NLA)
SKU: 16100-94741 Weight: 0.100000 Brand: Price: $ 138.35 |
Oil Pump Assembly (NLA) | 1 | $ 138.35 | 1996 to 1997 | |
| 2 | 16198-87D00 Oil Pump O-Ring
SKU: 16198-87D00 Weight: 0.060000 Brand: Price: $ 1.65 |
Oil Pump O-Ring | 1 | $ 1.65 | ||
| 3 | 16195-87D00 Snap Pin
SKU: 16195-87D00 Weight: 0.060000 Brand: Price: $ 2.37 |
Snap Pin | 1 | $ 2.37 | ||
| 4 | 13432-33100 Washer
SKU: 13432-33100 Weight: 0.060000 Brand: Price: $ 3.04 |
Washer | 1 | $ 3.04 | ||
| 4A | 16091-94900 Bolt (NLA)
SKU: 16091-94900 Weight: 0.100000 Brand: Price: $ 2.27 |
Bolt (NLA) | 1 | $ 2.27 | ||
| 4B | 16092-92440 Gasket (NLA)
SKU: 16092-92440 Weight: 0.100000 Brand: Price: $ 1.28 |
Gasket (NLA) | 1 | $ 1.28 | ||
| 5 | 16331-95304 Oil Pump Driven Gear (NLA)
SKU: 16331-95304 Weight: 0.100000 Brand: Price: $ 31.47 |
Oil Pump Driven Gear (NLA) | 1 | $ 31.47 | ||
| 6 | 16340-94710 Oil Pump Retainer (NLA)
SKU: 16340-94710 Weight: 0.100000 Brand: Price: $ 20.29 |
Oil Pump Retainer (NLA) | 1 | $ 20.29 | ||
| 7 | 16411-94710 Oil Pump Control Rod (NLA)
SKU: 16411-94710 Weight: 0.100000 Brand: Price: $ 5.98 |
Oil Pump Control Rod (NLA) | 1 | $ 5.98 | ||
| 8 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 9 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 10-1 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 10-2 | 08310-00057 Nut
SKU: 08310-00057 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 2 | $ 1.85 | 1997 | |
| 11 | 07130-06307 BOLT
SKU: 07130-06307 Weight: 0.100000 Brand: Price: $ 3.74 |
BOLT | 2 | $ 3.74 | ||
| 12 | 16250-94710 Oil Filter/Flow Sensor
SKU: 16250-94710 Weight: 0.080000 Brand: Price: $ 32.05 |
Oil Filter/Flow Sensor | 1 | $ 32.05 | ||
| 13 | 16710-94641 Oil Check Valve (Double)
SKU: 16710-94641 Weight: 0.060000 Brand: Price: $ 27.53 |
Oil Check Valve (Double) | 1 | $ 27.53 | ||
| 14 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->90 | |
| 15 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | L:2000->40 | |
| 16 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->125 | |
| 17 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->150 | |
| 18 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | L:600->60 | |
| 19 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 2 | $ 2.12 | ||
| 20 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 2 | $ 2.02 | ||
| 21 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
