Suzuki DT 65 Parts Listings 1988 to 1992

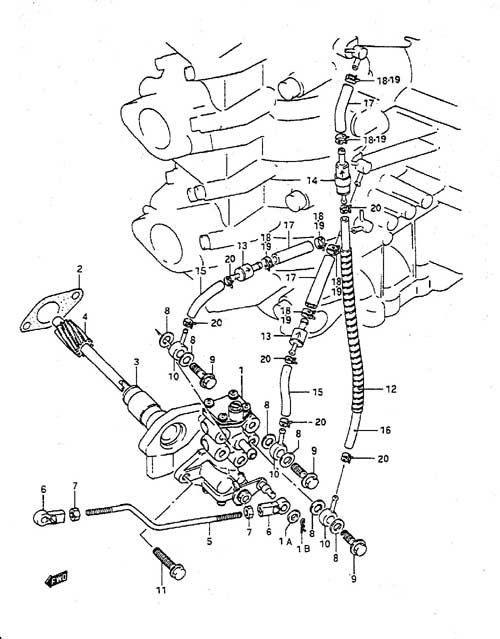

Fig. 7 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16100-94731 Oil Pump Assembly (NLA)
SKU: 16100-94731 Weight: 0.100000 Brand: Price: $ 254.49 |
Oil Pump Assembly (NLA) | 1 | $ 254.49 | ||
| 1A | 13432-33100 Washer
SKU: 13432-33100 Weight: 0.060000 Brand: Price: $ 3.04 |
Washer | 1 | $ 3.04 | ||
| 1B | 16195-87D00 Snap Pin
SKU: 16195-87D00 Weight: 0.060000 Brand: Price: $ 2.37 |
Snap Pin | 1 | $ 2.37 | ||
| 2 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 3 | 16340-94710 Oil Pump Retainer (NLA)
SKU: 16340-94710 Weight: 0.100000 Brand: Price: $ 20.29 |
Oil Pump Retainer (NLA) | 1 | $ 20.29 | ||
| 4 | 16331-95304 Oil Pump Driven Gear (NLA)
SKU: 16331-95304 Weight: 0.100000 Brand: Price: $ 31.47 |
Oil Pump Driven Gear (NLA) | 1 | $ 31.47 | ||
| 5 | 16411-94701 Oil Pump Control Rod (NLA)
SKU: 16411-94701 Weight: 0.100000 Brand: Price: $ 6.43 |
Oil Pump Control Rod (NLA) | 1 | $ 6.43 | ||
| 6 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 7 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 8 | 09168-06023 Gasket
SKU: 09168-06023 Weight: 0.060000 Brand: Price: $ 2.04 |
Gasket | 6 | $ 2.04 | 1988 to 1989 | |
| 9 | 09360-06012 Union Bolt
SKU: 09360-06012 Weight: 0.100000 Brand: Price: $ 3.62 |
Union Bolt | 3 | $ 3.62 | 1988 to 1989 | |
| 10 | 09363-02002 Union
SKU: 09363-02002 Weight: 0.060000 Brand: Price: $ 8.37 |
Union | 3 | $ 8.37 | 1988 to 1989 | |
| 11 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 12 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 5 | $ 8.45 | L:540->90 L:540->130 | |
| 13 | 16710-92E01 Oil Check Valve (Single)
SKU: 16710-92E01 Weight: 0.060000 Brand: Price: $ 19.39 |
Oil Check Valve (Single) | 2 | $ 19.39 | ||
| 14 | 16710-94641 Oil Check Valve (Double)
SKU: 16710-94641 Weight: 0.060000 Brand: Price: $ 27.53 |
Oil Check Valve (Double) | 1 | $ 27.53 | ||
| 15-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 2 | $ 6.08 | L:220->50 | |
| 15-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 2 | $ 7.06 | 1991 to 1994 L:600->50 | |
| 16-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | 1988 to 1990 L:600->160 | |
| 16-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | 1991 to 1994 L:600->160 | |
| 17 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 3 | $ 7.60 | L:600->25 | |
| 18 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 6 | $ 2.02 | 1988 to 1990 | |
| 19 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 6 | $ 1.78 | 1991 to 1994 | |
| 20 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 6 | $ 2.12 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
