Suzuki DT 65 Parts Listings 1988 to 1997

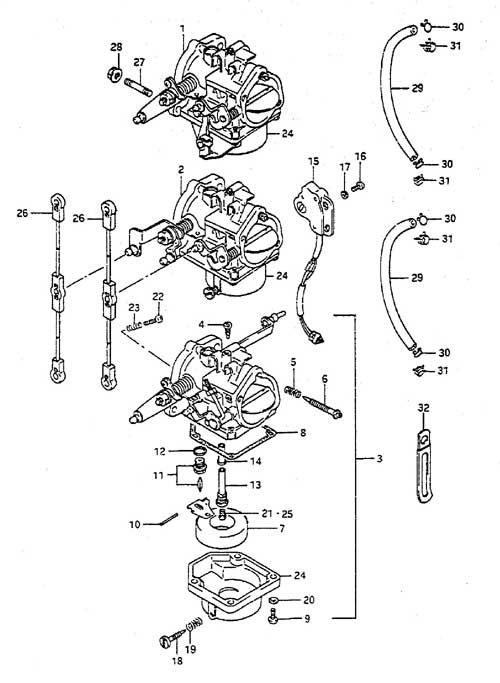

Fig. 5 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 13201-947B0 Top Carburetor Assembly (NLA)
SKU: 13201-947B0 Weight: 0.100000 Brand: Price: $ 308.45 |
Top Carburetor Assembly (NLA) | 1 | $ 308.45 | 1988 | |
| 1-2 | 13201-947E0 Top Carburetor Assembly (NLA)
SKU: 13201-947E0 Weight: 1.000000 Brand: Price: $ 307.59 |
Top Carburetor Assembly (NLA) | 1 | $ 307.59 | 1989 to 1990 | |
| 1-3 | 13201-947G0 Top Carburetor Assembly (NLA)
SKU: 13201-947G0 Weight: 1.000000 Brand: Price: $ 480.29 |
Top Carburetor Assembly (NLA) | 1 | $ 480.29 | 1991 to 1997 | |
| 2-1 | 13202-947B0 2nd Carburetor Assembly (NLA)
SKU: 13202-947B0 Weight: 0.100000 Brand: Price: $ 389.85 |
2nd Carburetor Assembly (NLA) | 1 | $ 389.85 | 1988 | |
| 2-2 | 13202-947D0 2nd Carburetor Assembly (NLA)
SKU: 13202-947D0 Weight: 0.100000 Brand: Price: $ 467.87 |
2nd Carburetor Assembly (NLA) | 1 | $ 467.87 | 1989 S/N 908874 to 909989 | |
| 2-3 | 13202-947E0 2nd Carburetor Assembly (NLA)
SKU: 13202-947E0 Weight: 0.100000 Brand: Price: $ 406.55 |
2nd Carburetor Assembly (NLA) | 1 | $ 406.55 | 1989 to 1990 S/N 909990 Newer | |
| 2-4 | 13202-947G1 2nd Carburetor Assembly (NLA)
SKU: 13202-947G1 Weight: 0.100000 Brand: Price: $ 409.75 |
2nd Carburetor Assembly (NLA) | 1 | $ 409.75 | 1991 to 1997 | |
| 3-1 | 13203-947B0 3rd Carburetor Assembly (NLA)
SKU: 13203-947B0 Weight: 0.100000 Brand: Price: $ 374.26 |
3rd Carburetor Assembly (NLA) | 1 | $ 374.26 | 1988 | |
| 3-2 | 13203-94761 3rd Carburetor Assembly (NLA)
SKU: 13203-94761 Weight: 0.100000 Brand: Price: $ 267.36 |
3rd Carburetor Assembly (NLA) | 1 | $ 267.36 | 1989 S/N 908874 to 909989 | |
| 3-3 | 13203-947E0 3rd Carburetor Assembly (NLA)
SKU: 13203-947E0 Weight: 1.000000 Brand: Price: $ 300.32 |
3rd Carburetor Assembly (NLA) | 1 | $ 300.32 | 1989 to 1990 S/N 909990 Newer | |
| 3-4 | 13203-947G0 3rd Carburetor Assembly (NLA)
SKU: 13203-947G0 Weight: 0.100000 Brand: Price: $ 301.70 |
3rd Carburetor Assembly (NLA) | 1 | $ 301.70 | 1991 to 1997 | |
| 4-1 | 09492-77001 Pilot Jet #77.5
SKU: 09492-77001 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #77.5 | 3 | $ 10.00 | 1988 | |
| 4-2 | 09492-80005 Pilot Jet #80
SKU: 09492-80005 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #80 | 3 | $ 10.00 | 1989 to 1997 | |
| 5 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 3 | $ 4.90 | ||
| 6 | 13269-95210 Pilot Air Screw
SKU: 13269-95210 Weight: 0.060000 Brand: Price: $ 8.28 |
Pilot Air Screw | 3 | $ 8.28 | ||
| 7 | 13250-93012 Carburetor Float
SKU: 13250-93012 Weight: 0.060000 Brand: Price: $ 20.17 |
Carburetor Float | 3 | $ 20.17 | ||
| 8 | 13251-95220 Float Chamber Gasket
SKU: 13251-95220 Weight: 0.060000 Brand: Price: $ 8.56 |
Float Chamber Gasket | 3 | $ 8.56 | ||
| 9 | 13249-95520 Screw (NLA)
SKU: 13249-95520 Weight: 0.060000 Brand: Price: $ 2.35 |
Screw (NLA) | 12 | $ 2.35 | ||
| 10 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 3 | $ 3.28 | ||
| 11 | 13370-28110 Needle Valve Assembly
SKU: 13370-28110 Weight: 0.060000 Brand: Price: $ 49.35 |
Needle Valve Assembly | 3 | $ 49.35 | ||
| 12 | 13392-58600 Valve Seat Gasket
SKU: 13392-58600 Weight: 0.060000 Brand: Price: $ 1.91 |
Valve Seat Gasket | 3 | $ 1.91 | ||
| 13-1 | 13236-94740 Main Nozzle (NLA)
SKU: 13236-94740 Weight: 0.100000 Brand: Price: $ 15.17 |
Main Nozzle (NLA) | 3 | $ 15.17 | 1988 | |
| 13-2 | 13236-94760 Main Nozzle (NLA)
SKU: 13236-94760 Weight: 0.100000 Brand: Price: $ 14.31 |
Main Nozzle (NLA) | 3 | $ 14.31 | 1989 to 1997 | |
| 14-1 | 13237-94400 Upper Nozzle
SKU: 13237-94400 Weight: 0.060000 Brand: Price: $ 3.47 |
Upper Nozzle | 3 | $ 3.47 | 1988 | |
| 14-2 | 13237-94760 Upper Nozzle
SKU: 13237-94760 Weight: 0.200000 Brand: Price: $ 3.60 |
Upper Nozzle | 3 | $ 3.60 | 1989 to 1997 | |
| 15-1 | 37810-94601 Throttle Valve Sensor Assembly (NLA)
SKU: 37810-94601 Weight: 0.180000 Brand: Price: $ 77.16 |
Throttle Valve Sensor Assembly (NLA) | 1 | $ 77.16 | 1988 | |
| 15-2 | 37810-95606 Throttle Valve Sensor Assembly
SKU: 37810-95606 Weight: 0.180000 Brand: Price: $ 232.07 |
Throttle Valve Sensor Assembly | 1 | $ 232.07 | 1989 to 1997 | |
| 16 | 02112-04087 SCREW 4X8
SKU: 02112-04087 Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW 4X8 | 2 | $ 1.11 | ||
| 17 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 18 | 13616-94500 Drain Bolt
SKU: 13616-94500 Weight: 0.060000 Brand: Price: $ 7.95 |
Drain Bolt | 3 | $ 7.95 | ||
| 19 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 3 | $ 4.90 | ||
| 20 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 12 | $ 1.85 | ||
| 21-1 | 09491-30010 Main Jet #150
SKU: 09491-30010 Weight: 0.062500 Brand: Price: $ 7.82 |
Main Jet #150 | 3 | $ 7.82 | 1988 | |
| 21-2 | 09491-30017 Main Jet #150
SKU: 09491-30017 Weight: 0.060000 Brand: Price: $ 14.20 |
Main Jet #150 | 3 | $ 14.20 | 1989 S/N 908891 to 909776 | |
| 21-3 | 09491-32012 Main Jet #160
SKU: 09491-32012 Weight: 0.060000 Brand: Price: $ 12.00 |
Main Jet #160 | 3 | $ 12.00 | 1989 to 1997 | |
| 22 | 13534-95D00 Screw
SKU: 13534-95D00 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 23 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 1 | $ 4.61 | ||
| 24 | 13245-95210 Float Chamber (NLA)
SKU: 13245-95210 Weight: 0.100000 Brand: Price: $ 48.93 |
Float Chamber (NLA) | 3 | $ 48.93 | ||
| 25-1 | 09491-28011 Main Jet #140
SKU: 09491-28011 Weight: 0.100000 Brand: Price: $ 16.18 |
Main Jet #140 | 3 | $ 16.18 | Optional | |
| 25-2 | 09491-29006 Main Jet #145 (NLA)
SKU: 09491-29006 Weight: 0.100000 Brand: Price: $ 5.38 |
Main Jet #145 (NLA) | 3 | $ 5.38 | Optional | |
| 25-3 | 09491-32012 Main Jet #160
SKU: 09491-32012 Weight: 0.060000 Brand: Price: $ 12.00 |
Main Jet #160 | 3 | $ 12.00 | Optional | |
| 26 | 13510-94700 Throttle Rod Assembly (NLA)
SKU: 13510-94700 Weight: 0.060000 Brand: Price: $ 9.73 |
Throttle Rod Assembly (NLA) | 2 | $ 9.73 | ||
| 27 | 01411-08207 Stud Bolt (NLA)
SKU: 01411-08207 Weight: 0.100000 Brand: Price: $ 2.03 |
Stud Bolt (NLA) | 3 | $ 2.03 | ||
| 28 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 6 | $ 2.27 | ||
| 29 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | Carb to Carb L:600->135 | |
| 30 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 4 | $ 1.86 | 1988 to 1990 | |
| 31 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | 1991 to 1997 | |
| 33 | 13910-94400 Carburetor Repair Kit
SKU: 13910-94400 Weight: 0.080000 Brand: Price: $ 34.42 |
Carburetor Repair Kit | 3 | $ 34.42 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
