Suzuki DT 65 Parts Listings 1988 to 1997

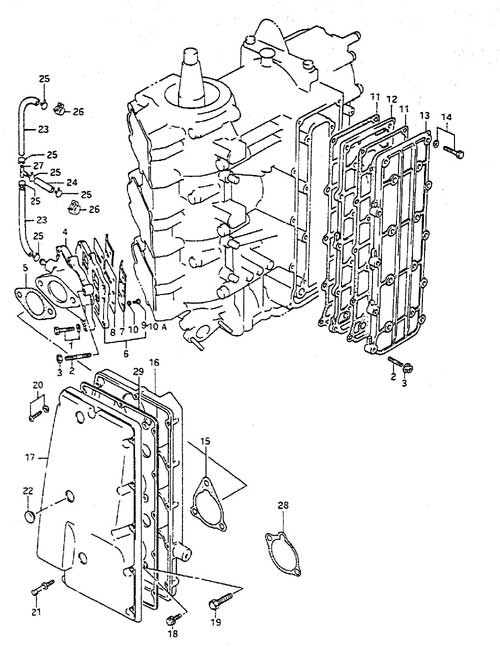

Fig. 3 - Inlet Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.88 |
BOLT | 12 | $ 2.88 | ||
| 2 | 01421-06257 BOLT, STUD
SKU: 01421-06257 Weight: 0.125000 Brand: Price: $ 2.77 |
BOLT, STUD | 6 | $ 2.77 | ||
| 3 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.37 |
Nut | 6 | $ 2.37 | ||
| 4 | 13110-94700-0ED Inlet Case (NLA)
SKU: 13110-94700-0ED Weight: 0.100000 Brand: Price: $ 41.89 |
Inlet Case (NLA) | 3 | $ 41.89 | ||
| 5 | 13125-95210 Carburetor Gasket
SKU: 13125-95210 Weight: 0.060000 Brand: Price: $ 4.48 |
Carburetor Gasket | 3 | $ 4.48 | ||
| 6 | 13150-94720 Reed Valve Assembly
SKU: 13150-94720 Weight: 0.500000 Brand: Price: $ 104.10 |
Reed Valve Assembly | 3 | $ 104.10 | ||
| 7 | 13152-94720 Reed Valve Stopper (NLA)
SKU: 13152-94720 Weight: 0.100000 Brand: Price: $ 5.21 |
Reed Valve Stopper (NLA) | 6 | $ 5.21 | ||
| 8 | 13153-94700 Reed Valve
SKU: 13153-94700 Weight: 0.060000 Brand: Price: $ 11.80 |
Reed Valve | 6 | $ 11.80 | ||
| 9 | 02112-0306B SCREW
SKU: 02112-0306B Weight: 0.060000 Brand: Price: $ 1.68 |
SCREW | 18 | $ 1.68 | 1988 to 1993 | |
| 10 | 08321-2103B Lock Washer
SKU: 08321-2103B Weight: 0.100000 Brand: Price: $ 1.50 |
Lock Washer | 18 | $ 1.50 | 1988 to 1993 | |
| 10A | 02112-3306A SCREW
SKU: 02112-3306A Weight: 0.200000 Brand: Price: $ 2.10 |
SCREW | 18 | $ 2.10 | 1994 to 1997 | |
| 11 | 14151-94712 Exhaust Cover Gasket (NLA)
SKU: 14151-94712 Weight: 0.250000 Brand: Price: $ 19.48 |
Exhaust Cover Gasket (NLA) | 2 | $ 19.48 | ||
| 12 | 14131-94701 Exhaust Plate
SKU: 14131-94701 Weight: 0.860000 Brand: Price: $ 40.54 |
Exhaust Plate | 1 | $ 40.54 | ||
| 13 | 14141-94700-0ED Exhaust Cover
SKU: 14141-94700-0ED Weight: 1.000000 Brand: Price: $ 113.53 |
Exhaust Cover | 1 | $ 113.53 | ||
| 14 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.88 |
BOLT | 18 | $ 2.88 | ||
| 16 | 13811-94700 Silencer Case (NLA)
SKU: 13811-94700 Weight: 0.800000 Brand: Price: $ 45.65 |
Silencer Case (NLA) | 1 | $ 45.65 | ||
| 17 | 13812-94700 Silencer Cover (NLA)
SKU: 13812-94700 Weight: 0.340000 Brand: Price: $ 48.73 |
Silencer Cover (NLA) | 1 | $ 48.73 | ||
| 18 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 8 | $ 2.45 | ||
| 19 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 6 | $ 2.45 | ||
| 20 | 02142-05207 SCREW
SKU: 02142-05207 Weight: 0.060000 Brand: Price: $ 1.50 |
SCREW | 10 | $ 1.50 | ||
| 21 | 09139-05041 Screw (NLA)
SKU: 09139-05041 Weight: 0.100000 Brand: Price: $ 5.83 |
Screw (NLA) | 1 | $ 5.83 | ||
| 22 | 09250-15010 Plug
SKU: 09250-15010 Weight: 0.060000 Brand: Price: $ 1.94 |
Plug | 3 | $ 1.94 | ||
| 23 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 8.00 |
Hose (5x9x600) | 2 | $ 8.00 | L:600->125 | |
| 24 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 8.00 |
Hose (5x9x600) | 1 | $ 8.00 | L:600->45 | |
| 25 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.97 |
Clip | 6 | $ 1.97 | 1988 to 1990 | |
| 26 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.88 |
Clip | 6 | $ 1.88 | 1991 to 1997 | |
| 27 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.74 |
3 Way | 1 | $ 2.74 | ||
| 28 | 13855-95210 Silencer Gasket
SKU: 13855-95210 Weight: 0.060000 Brand: Price: $ 4.13 |
Silencer Gasket | 3 | $ 4.13 | ||
| 29 | 13853-94710 Silencer Cover Gasket (NLA)
SKU: 13853-94710 Weight: 0.200000 Brand: Price: $ 9.45 |
Silencer Cover Gasket (NLA) | 1 | $ 9.45 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
