Suzuki DT 55 Parts Listings 1988 to 1997

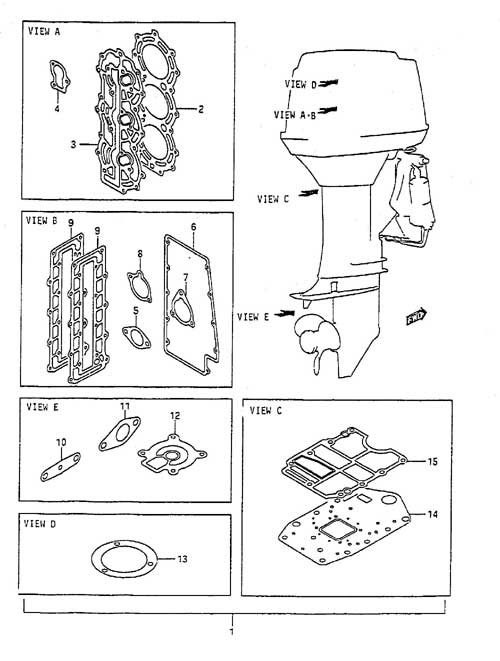

Fig. 50 - Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11400-94802 Engine Gasket Set
SKU: 11400-94802 Weight: 0.860000 Brand: Price: $ 248.45 |
Engine Gasket Set | 1 | $ 248.45 | ||
| 2 | 11162-94730 Cylinder Head Cover Gasket
SKU: 11162-94730 Weight: 0.150000 Brand: Price: $ 21.92 |
Cylinder Head Cover Gasket | 1 | $ 21.92 | ||
| 3 | 11141-94720 Cylinder Head Gasket
SKU: 11141-94720 Weight: 0.250000 Brand: Price: $ 53.40 |
Cylinder Head Gasket | 1 | $ 53.40 | ||
| 4 | 17685-94410 Thermostat Gasket
SKU: 17685-94410 Weight: 0.060000 Brand: Price: $ 4.12 |
Thermostat Gasket | 1 | $ 4.12 | ||
| 5 | 13125-93010 Carburetor Gasket
SKU: 13125-93010 Weight: 0.060000 Brand: Price: $ 4.91 |
Carburetor Gasket | 3 | $ 4.91 | ||
| 6 | 13853-94710 Silencer Cover Gasket (NLA)
SKU: 13853-94710 Weight: 0.200000 Brand: Price: $ 9.45 |
Silencer Cover Gasket (NLA) | 1 | $ 9.45 | ||
| 7 | 13855-93310 Silencer Gasket (NLA)
SKU: 13855-93310 Weight: 0.060000 Brand: Price: $ 3.82 |
Silencer Gasket (NLA) | 3 | $ 3.82 | ||
| 9 | 14151-94712 Exhaust Cover Gasket (NLA)
SKU: 14151-94712 Weight: 0.250000 Brand: Price: $ 19.48 |
Exhaust Cover Gasket (NLA) | 2 | $ 19.48 | ||
| 10 | 15321-99710 Fuel Pump Gasket
SKU: 15321-99710 Weight: 0.060000 Brand: Price: $ 3.70 |
Fuel Pump Gasket | 1 | $ 3.70 | ||
| 11 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 12 | 17472-95310 Water Pump Plate Gasket
SKU: 17472-95310 Weight: 0.250000 Brand: Price: $ 2.39 |
Water Pump Plate Gasket | 1 | $ 2.39 | ||
| 13 | 11413-94710 Upper Oil Seal Hsg Gasket
SKU: 11413-94710 Weight: 0.060000 Brand: Price: $ 6.01 |
Upper Oil Seal Hsg Gasket | 1 | $ 6.01 | ||
| 14 | 51211-94750 Engine Holder Gasket (NLA)
SKU: 51211-94750 Weight: 0.200000 Brand: Price: $ 32.94 |
Engine Holder Gasket (NLA) | 1 | $ 32.94 | ||
| 15 | 52113-94731 Drive Shaft Housing Gasket (NLA)
SKU: 52113-94731 Weight: 0.300000 Brand: Price: $ 45.65 |
Drive Shaft Housing Gasket (NLA) | 1 | $ 45.65 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
