Suzuki DT 55 Parts Listings 1988 to 1997

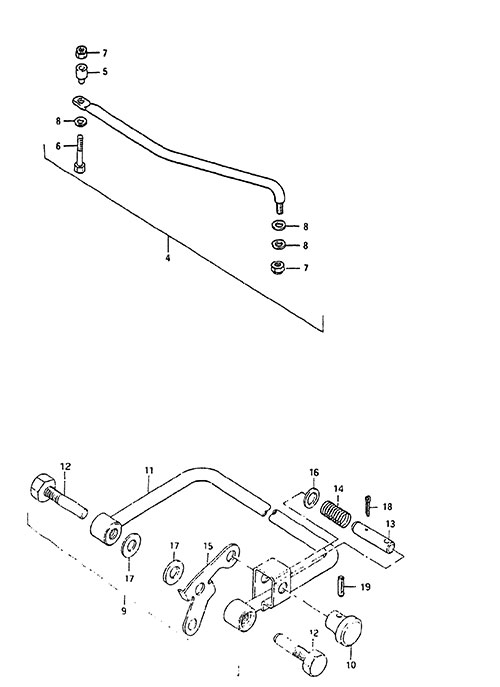

Fig. 49 - Tie Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 4 | 67701-95520 Drag Link Assembly (NLA)
SKU: 67701-95520 Weight: 1.500000 Brand: Price: $ 113.05 |
Drag Link Assembly (NLA) | 1 | $ 113.05 | ||
| 5 | 67721-99E00 Drag Link Spacer
SKU: 67721-99E00 Weight: 0.125000 Brand: Price: $ 11.89 |
Drag Link Spacer | 1 | $ 11.89 | ||
| 6 | 67725-99E10 Replaced by 67725-99E20
SKU: 67725-99E10 Weight: 0.060000 Brand: Price: $ 7.19 |
Replaced by 67725-99E20 | 1 | $ 7.19 | ||
| 7 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Lock Nut | 2 | $ 8.24 | ||
| 8 | 67728-99E00 Washer
SKU: 67728-99E00 Weight: 0.060000 Brand: Price: $ 2.65 |
Washer | 3 | $ 2.65 | ||
| 9 | 45600-95250 Trailer Arm Assembly (NLA)
SKU: 45600-95250 Weight: 2.000000 Brand: Price: $ 81.06 |
Trailer Arm Assembly (NLA) | 1 | $ 81.06 | ||
| 10 | 41221-98400 Tilt Stopper Knob
SKU: 41221-98400 Weight: 0.250000 Brand: Price: $ 4.84 |
Tilt Stopper Knob | 1 | $ 4.84 | ||
| 11 | 45610-95250 Trailering Arm (NLA)
SKU: 45610-95250 Weight: 0.100000 Brand: Price: $ 64.69 |
Trailering Arm (NLA) | 1 | $ 64.69 | ||
| 12 | 45615-95250 Bolt (NLA)
SKU: 45615-95250 Weight: 0.100000 Brand: Price: $ 19.71 |
Bolt (NLA) | 2 | $ 19.71 | ||
| 13 | 45621-95250 Pin (NLA)
SKU: 45621-95250 Weight: 0.100000 Brand: Price: $ 8.36 |
Pin (NLA) | 1 | $ 8.36 | ||
| 14 | 45622-95250 Spring (NLA)
SKU: 45622-95250 Weight: 0.100000 Brand: Price: $ 4.47 |
Spring (NLA) | 1 | $ 4.47 | ||
| 15 | 45631-95250 Lock Arm Plate (NLA)
SKU: 45631-95250 Weight: 0.100000 Brand: Price: $ 22.27 |
Lock Arm Plate (NLA) | 1 | $ 22.27 | ||
| 16 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 1 | $ 1.63 | ||
| 17 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 2 | $ 1.80 | ||
| 18 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 19 | 09205-03012 Spring Pin (3x16)
SKU: 09205-03012 Weight: 0.060000 Brand: Price: $ 1.99 |
Spring Pin (3x16) | 1 | $ 1.99 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
