Suzuki DT 55 Parts Listings 1988 to 1997

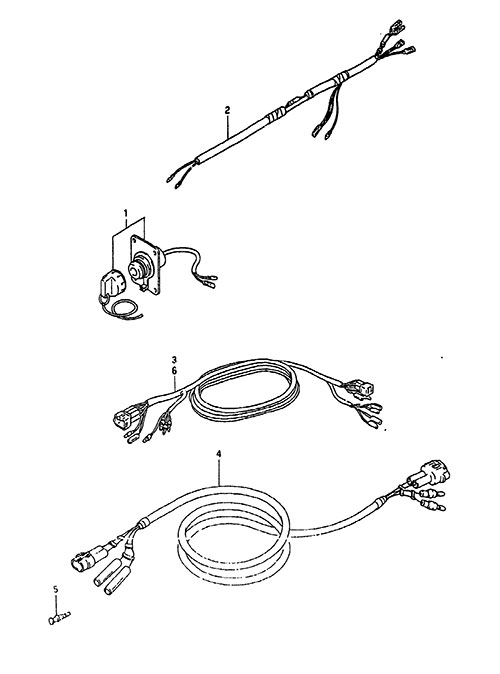

Fig. 48 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34108-94510 Meter Switch Assembly (NLA)
SKU: 34108-94510 Weight: 2.000000 Brand: Price: $ 46.59 |
Meter Switch Assembly (NLA) | 1 | $ 46.59 | 1988 to 1992 | |
| 2 | 34109-94500 Extension Lead (NLA)
SKU: 34109-94500 Weight: 2.000000 Brand: Price: $ 30.86 |
Extension Lead (NLA) | 1 | $ 30.86 | ||
| 3-1 | 36660-87D80 Wiring Harness Extension (NLA)
SKU: 36660-87D80 Weight: 0.100000 Brand: Price: $ 59.98 |
Wiring Harness Extension (NLA) | 1 | $ 59.98 | L:2000 | |
| 3-2 | 36660-87D90 Wiring Harness Extension (NLA)
SKU: 36660-87D90 Weight: 0.100000 Brand: Price: $ 117.07 |
Wiring Harness Extension (NLA) | 1 | $ 117.07 | L:5000 | |
| 3-3 | 36660-87E80 Wiring Harness Extension (NLA)
SKU: 36660-87E80 Weight: 0.100000 Brand: Price: $ 66.26 |
Wiring Harness Extension (NLA) | 1 | $ 66.26 | L:1570 | |
| 3-4 | 36660-87E90 Wiring Harness Extension (NLA)
SKU: 36660-87E90 Weight: 0.100000 Brand: Price: $ 108.33 |
Wiring Harness Extension (NLA) | 1 | $ 108.33 | L:4570 | |
| 3-5 | 36660-92E90 Monitor Gauge Harness (6 ft) (NLA)
SKU: 36660-92E90 Weight: 0.100000 Brand: Price: $ 69.95 |
Monitor Gauge Harness (6 ft) (NLA) | 1 | $ 69.95 | 1993 to 1997 | |
| 4 | 36670-94700 Wire Harness Extension (NLA)
SKU: 36670-94700 Weight: 0.100000 Brand: Price: $ 39.88 |
Wire Harness Extension (NLA) | 1 | $ 39.88 | 1988 to 1992 | |
| 5 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 6 | 36630-87D00 Meter Ext. Harness Assembly (NLA)
SKU: 36630-87D00 Weight: 0.100000 Brand: Price: $ 35.17 |
Meter Ext. Harness Assembly (NLA) | 1 | $ 35.17 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
