Suzuki DT 55 Parts Listings 1988 to 1994

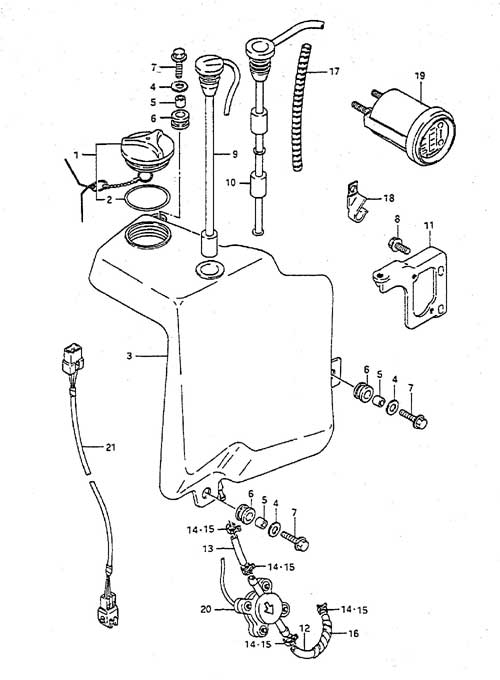

Fig. 40 - Oil Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 69201-95500 Suzuki Oil Tank Cap (NLA)
SKU: 69201-95500 Weight: 0.120000 Brand: Price: $ 33.71 |
Suzuki Oil Tank Cap (NLA) | 1 | $ 33.71 | ||
| 2 | 09280-41006 O-Ring
SKU: 09280-41006 Weight: 0.060000 Brand: Price: $ 3.43 |
O-Ring | 1 | $ 3.43 | ||
| 3 | 69101-94700 Oil Tank Set
SKU: 69101-94700 Weight: 5.000000 Brand: Price: $ 104.64 |
Oil Tank Set | 1 | $ 104.64 | ||
| 4 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 3 | $ 1.78 | ||
| 5 | 09180-06310 Spacer (6.5x10x10)
SKU: 09180-06310 Weight: 0.060000 Brand: Price: $ 1.91 |
Spacer (6.5x10x10) | 3 | $ 1.91 | ||
| 6 | 09320-10075 Cushion
SKU: 09320-10075 Weight: 0.060000 Brand: Price: $ 1.92 |
Cushion | 3 | $ 1.92 | ||
| 7 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 8 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 9 | 34860-94700 Oil Level Switch Assembly (NLA)
SKU: 34860-94700 Weight: 0.100000 Brand: Price: $ 17.00 |
Oil Level Switch Assembly (NLA) | 1 | $ 17.00 | DT55HTC | |
| 10 | 34860-94741 Oil Level Switch Assembly
SKU: 34860-94741 Weight: 0.200000 Brand: Price: $ 115.02 |
Oil Level Switch Assembly | 1 | $ 115.02 | ||
| 11 | 69311-94700 Oil Tank Support (NLA)
SKU: 69311-94700 Weight: 0.100000 Brand: Price: $ 13.49 |
Oil Tank Support (NLA) | 1 | $ 13.49 | ||
| 12-1 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | L:2000->600 1988 to 1990 | |
| 12-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->110 1991 to 1994 | |
| 13-1 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | L:2000->150 1988 to 1990 | |
| 13-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->150 1991 to 1994 | |
| 14 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 4 | $ 2.02 | 1988 to 1990 | |
| 15 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | 1991 to 1994 | |
| 16 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->90 | |
| 17 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 18 | 09403-12308 Clamp (NLA)
SKU: 09403-12308 Weight: 0.100000 Brand: Price: $ 2.03 |
Clamp (NLA) | 1 | $ 2.03 | ||
| 19-1 | 34701-92X50 Monitor Gauge Assembly (NLA)
SKU: 34701-92X50 Weight: 1.060000 Brand: Price: $ 239.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 239.95 | 1988 to 1993 | |
| 19-2 | 34700-92E11 Monitor Gauge Assembly (NLA)
SKU: 34700-92E11 Weight: 7.000000 Brand: Price: $ 229.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 229.95 | 1994 | |
| 20 | 16250-94710 Oil Filter/Flow Sensor
SKU: 16250-94710 Weight: 0.080000 Brand: Price: $ 32.05 |
Oil Filter/Flow Sensor | 1 | $ 32.05 | ||
| 21-1 | 36660-94690 Monitor Wiring Harness (NLA)
SKU: 36660-94690 Weight: 0.100000 Brand: Price: $ 55.72 |
Monitor Wiring Harness (NLA) | 1 | $ 55.72 | Opt: L:2000 | |
| 21-2 | 36660-92E90 Monitor Gauge Harness (6 ft) (NLA)
SKU: 36660-92E90 Weight: 0.100000 Brand: Price: $ 69.95 |
Monitor Gauge Harness (6 ft) (NLA) | 1 | $ 69.95 | Opt: 1993 to 1996 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
