Suzuki DT 55 Parts Listings 1988 to 1991

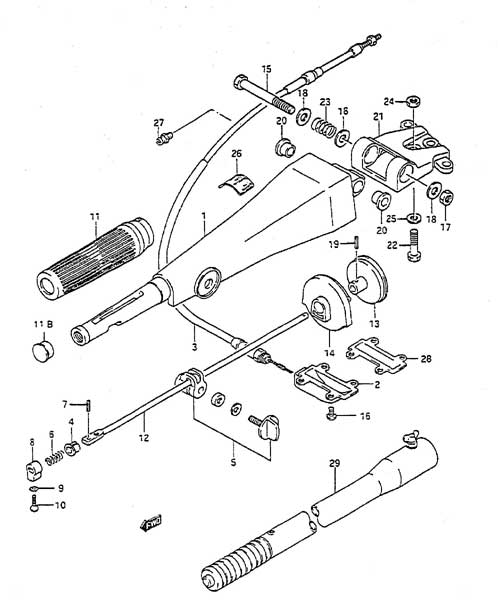

Fig. 38 - Handle - DT55HTC
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63111-95503-0ED Tiller Handle (NLA)
SKU: 63111-95503-0ED Weight: 1.000000 Brand: Price: $ 152.32 |
Tiller Handle (NLA) | 1 | $ 152.32 | ||
| 2 | 63121-95501-0ED Tiller Handle Cover (NLA)
SKU: 63121-95501-0ED Weight: 0.100000 Brand: Price: $ 32.67 |
Tiller Handle Cover (NLA) | 1 | $ 32.67 | ||
| 3 | 63610-95511 Throttle Cable Assembly
SKU: 63610-95511 Weight: 0.350000 Brand: Price: $ 144.24 |
Throttle Cable Assembly | 1 | $ 144.24 | ||
| 4 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 5 | 63240-96300 Handle Grip Adjuster
SKU: 63240-96300 Weight: 0.060000 Brand: Price: $ 13.03 |
Handle Grip Adjuster | 1 | $ 13.03 | ||
| 6 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 7 | 63227-93200 Handle Rod Pin
SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
| 8 | 63223-92D00 Handle Rod Stopper
SKU: 63223-92D00 Weight: 0.060000 Brand: Price: $ 4.49 |
Handle Rod Stopper | 1 | $ 4.49 | ||
| 9 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 10 | 09126-06006 Screw (6x20)
SKU: 09126-06006 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (6x20) | 1 | $ 1.88 | ||
| 11 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 11B | 63213-94400 Stop Switch Cap
SKU: 63213-94400 Weight: 0.060000 Brand: Price: $ 7.13 |
Stop Switch Cap | 1 | $ 7.13 | ||
| 12 | 63221-95500 Handle Rod (NLA)
SKU: 63221-95500 Weight: 0.100000 Brand: Price: $ 16.90 |
Handle Rod (NLA) | 1 | $ 16.90 | ||
| 13 | 63230-95501 Throttle Cable Gear
SKU: 63230-95501 Weight: 0.100000 Brand: Price: $ 60.88 |
Throttle Cable Gear | 1 | $ 60.88 | ||
| 14 | 63410-95500 Gear Housing (NLA)
SKU: 63410-95500 Weight: 0.100000 Brand: Price: $ 16.69 |
Gear Housing (NLA) | 1 | $ 16.69 | ||
| 15 | 09100-10264 Bolt (10x80)
SKU: 09100-10264 Weight: 0.120000 Brand: Price: $ 8.05 |
Bolt (10x80) | 1 | $ 8.05 | ||
| 16 | 09125-06053 Screw (6x16)
SKU: 09125-06053 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw (6x16) | 4 | $ 2.20 | ||
| 17 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
| 18 | 09160-10097 Washer (10.5x22x2.5)
SKU: 09160-10097 Weight: 0.060000 Brand: Price: $ 2.36 |
Washer (10.5x22x2.5) | 3 | $ 2.36 | ||
| 19 | 09205-03012 Spring Pin (3x16)
SKU: 09205-03012 Weight: 0.060000 Brand: Price: $ 1.99 |
Spring Pin (3x16) | 1 | $ 1.99 | ||
| 20 | 09306-10007 Handle Bushing (NLA)
SKU: 09306-10007 Weight: 0.060000 Brand: Price: $ 1.08 |
Handle Bushing (NLA) | 2 | $ 1.08 | ||
| 21 | 43761-95501-0ED Steering Handle Bracket (NLA)
SKU: 43761-95501-0ED Weight: 0.100000 Brand: Price: $ 53.32 |
Steering Handle Bracket (NLA) | 1 | $ 53.32 | ||
| 22 | 43762-95500 Bolt (NLA)
SKU: 43762-95500 Weight: 0.100000 Brand: Price: $ 8.06 |
Bolt (NLA) | 1 | $ 8.06 | ||
| 23 | 09440-22008 Spring
SKU: 09440-22008 Weight: 0.060000 Brand: Price: $ 11.89 |
Spring | 1 | $ 11.89 | ||
| 24 | 43764-95500 Nut (NLA)
SKU: 43764-95500 Weight: 0.100000 Brand: Price: $ 2.86 |
Nut (NLA) | 2 | $ 2.86 | ||
| 25 | 09160-10098 Washer (10x18x1.0)
SKU: 09160-10098 Weight: 0.100000 Brand: Price: $ 1.42 |
Washer (10x18x1.0) | 2 | $ 1.42 | ||
| 26 | 63215-93110 Handle Grip Mark
SKU: 63215-93110 Weight: 0.060000 Brand: Price: $ 3.19 |
Handle Grip Mark | 1 | $ 3.19 | ||
| 27 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
| 28 | 63119-95500 Tiller Handle Cover Gasket (NLA)
SKU: 63119-95500 Weight: 0.100000 Brand: Price: $ 3.33 |
Tiller Handle Cover Gasket (NLA) | 1 | $ 3.33 | ||
| 29 | 63300-93900 Extension Bar Assembly (NLA)
SKU: 63300-93900 Weight: 0.100000 Brand: Price: $ 122.61 |
Extension Bar Assembly (NLA) | 1 | $ 122.61 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
