Suzuki DT 55 Parts Listings 1989 to 1994

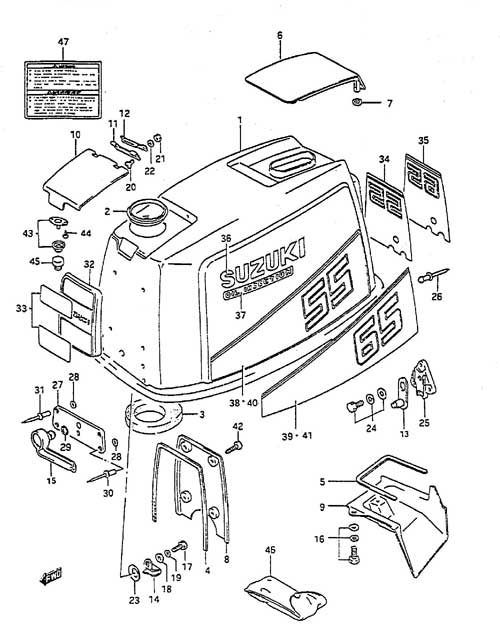

Fig. 36 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-94720-0ED Engine Cover (NLA)
SKU: 61400-94720-0ED Weight: 30.000000 Brand: Price: $ 807.76 |
Engine Cover (NLA) | 1 | $ 807.76 | ||
| 2 | 61414-95501 Oil Filler Gasket (NLA)
SKU: 61414-95501 Weight: 0.060000 Brand: Price: $ 6.45 |
Oil Filler Gasket (NLA) | 1 | $ 6.45 | ||
| 3 | 61417-94701 Oil Tank Lid Insulator (NLA)
SKU: 61417-94701 Weight: 0.100000 Brand: Price: $ 10.07 |
Oil Tank Lid Insulator (NLA) | 1 | $ 10.07 | ||
| 4 | 61415-94700 Air Intake Insulator
SKU: 61415-94700 Weight: 0.100000 Brand: Price: $ 3.17 |
Air Intake Insulator | 1 | $ 3.17 | Front | |
| 5 | 61415-94700 Air Intake Insulator
SKU: 61415-94700 Weight: 0.100000 Brand: Price: $ 3.17 |
Air Intake Insulator | 1 | $ 3.17 | Rear | |
| 6 | 61431-95202-0ED Tilt Up Handle (NLA)
SKU: 61431-95202-0ED Weight: 2.000000 Brand: Price: $ 84.37 |
Tilt Up Handle (NLA) | 1 | $ 84.37 | ||
| 7 | 09161-06008 Washer (NLA)
SKU: 09161-06008 Weight: 0.100000 Brand: Price: $ 0.85 |
Washer (NLA) | 2 | $ 0.85 | ||
| 8 | 61432-94700 Air Intake Front Cover (NLA)
SKU: 61432-94700 Weight: 0.100000 Brand: Price: $ 11.26 |
Air Intake Front Cover (NLA) | 1 | $ 11.26 | ||
| 9 | 61433-94701 Air Intake Inner Cover (NLA)
SKU: 61433-94701 Weight: 0.100000 Brand: Price: $ 11.63 |
Air Intake Inner Cover (NLA) | 1 | $ 11.63 | ||
| 10 | 61481-95503-0ED Oil Tank Filler Lid (NLA)
SKU: 61481-95503-0ED Weight: 0.220000 Brand: Price: $ 30.98 |
Oil Tank Filler Lid (NLA) | 1 | $ 30.98 | ||
| 11 | 61482-94510 Oil Filler Lid Hinge
SKU: 61482-94510 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Hinge | 1 | $ 4.67 | ||
| 12 | 61485-95500 Oil Filler Lid Spring
SKU: 61485-95500 Weight: 0.060000 Brand: Price: $ 4.84 |
Oil Filler Lid Spring | 1 | $ 4.84 | ||
| 13 | 61610-94420 Fastener
SKU: 61610-94420 Weight: 0.080000 Brand: Price: $ 16.13 |
Fastener | 1 | $ 16.13 | ||
| 14 | 61641-94700 Front Hook (NLA)
SKU: 61641-94700 Weight: 0.100000 Brand: Price: $ 5.55 |
Front Hook (NLA) | 1 | $ 5.55 | ||
| 15 | 61645-94701-0ED Front Hook Lever (NLA)
SKU: 61645-94701-0ED Weight: 0.120000 Brand: Price: $ 25.71 |
Front Hook Lever (NLA) | 1 | $ 25.71 | ||
| 16-1 | 09118-06083 Bolt (6x20) (NLA)
SKU: 09118-06083 Weight: 0.100000 Brand: Price: $ 1.55 |
Bolt (6x20) (NLA) | 3 | $ 1.55 | 1989 to 1993 | |
| 16-2 | 01580-06207 Bolt (NLA)
SKU: 01580-06207 Weight: 0.100000 Brand: Price: $ 1.47 |
Bolt (NLA) | 3 | $ 1.47 | 1994 | |
| 17 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 1 | $ 2.10 | ||
| 18 | 09160-06036 Washer (6.5x18x1.5)
SKU: 09160-06036 Weight: 0.060000 Brand: Price: $ 1.97 |
Washer (6.5x18x1.5) | 1 | $ 1.97 | ||
| 19 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 1 | $ 1.49 | 1989 to 1993 | |
| 19A | 09118-06095 Bolt (6x12)
SKU: 09118-06095 Weight: 0.200000 Brand: Price: $ 4.31 |
Bolt (6x12) | 1 | $ 4.31 | 1994 | |
| 20 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 2 | $ 2.06 | ||
| 21 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 22 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | ||
| 23 | 09164-13005 Wave Washer
SKU: 09164-13005 Weight: 0.060000 Brand: Price: $ 3.38 |
Wave Washer | 1 | $ 3.38 | ||
| 24 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 25 | 61621-96303 Fastener Bracket (NLA)
SKU: 61621-96303 Weight: 0.060000 Brand: Price: $ 15.26 |
Fastener Bracket (NLA) | 1 | $ 15.26 | ||
| 26 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.82 |
Rivet | 3 | $ 2.82 | ||
| 27 | 61651-94701 Front Hook Holder (NLA)
SKU: 61651-94701 Weight: 0.100000 Brand: Price: $ 12.91 |
Front Hook Holder (NLA) | 1 | $ 12.91 | ||
| 28 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 5 | $ 1.85 | ||
| 29 | 09280-18004 O-Ring
SKU: 09280-18004 Weight: 0.100000 Brand: Price: $ 5.26 |
O-Ring | 1 | $ 5.26 | ||
| 30 | 09229-04026 Rivet (NLA)
SKU: 09229-04026 Weight: 0.100000 Brand: Price: $ 0.98 |
Rivet (NLA) | 3 | $ 0.98 | ||
| 31 | 09229-04027 Rivet (NLA)
SKU: 09229-04027 Weight: 0.100000 Brand: Price: $ 1.19 |
Rivet (NLA) | 2 | $ 1.19 | ||
| 32 | 61421-94421-019 Front Emblem
SKU: 61421-94421-019 Weight: 0.200000 Brand: Price: $ 45.77 |
Front Emblem | 1 | $ 45.77 | ||
| 33 | 61422-95570-12R Front Emblem Mark (NLA)
SKU: 61422-95570-12R Weight: 0.060000 Brand: Price: $ 6.24 |
Front Emblem Mark (NLA) | 1 | $ 6.24 | ||
| 34 | 61435-94780-70G Rear Emblem Mark (NLA)
SKU: 61435-94780-70G Weight: 0.060000 Brand: Price: $ 9.31 |
Rear Emblem Mark (NLA) | 1 | $ 9.31 | ||
| 36 | 61441-95560-764 Suzuki Mark
SKU: 61441-95560-764 Weight: 0.060000 Brand: Price: $ 12.16 |
Suzuki Mark | 2 | $ 12.16 | ||
| 37 | 61442-94600-764 Oil Injection Mark
SKU: 61442-94600-764 Weight: 0.060000 Brand: Price: $ 4.06 |
Oil Injection Mark | 2 | $ 4.06 | ||
| 38 | 61443-94760-70G Starboard Engine Cover Decal (NLA)
SKU: 61443-94760-70G Weight: 0.200000 Brand: Price: $ 39.86 |
Starboard Engine Cover Decal (NLA) | 1 | $ 39.86 | ||
| 40 | 61453-94760-70G Port Engine Cover Decal (NLA)
SKU: 61453-94760-70G Weight: 0.060000 Brand: Price: $ 31.60 |
Port Engine Cover Decal (NLA) | 1 | $ 31.60 | ||
| 42 | 03241-0516A SCREW
SKU: 03241-0516A Weight: 0.060000 Brand: Price: $ 1.21 |
SCREW | 4 | $ 1.21 | ||
| 43 | 61670-95300 Oil Lid Striker Assy (NLA)
SKU: 61670-95300 Weight: 0.100000 Brand: Price: $ 4.27 |
Oil Lid Striker Assy (NLA) | 1 | $ 4.27 | ||
| 44 | 09131-03007 Striker Screw (NLA)
SKU: 09131-03007 Weight: 0.100000 Brand: Price: $ 1.31 |
Striker Screw (NLA) | 2 | $ 1.31 | ||
| 45 | 09250-12012 Cap (NLA)
SKU: 09250-12012 Weight: 0.060000 Brand: Price: $ 5.52 |
Cap (NLA) | 1 | $ 5.52 | ||
| 46 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 | ||
| 47 | 61581-98620 Engine Cover Label
SKU: 61581-98620 Weight: 0.060000 Brand: Price: $ 9.56 |
Engine Cover Label | 1 | $ 9.56 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
