Suzuki DT 55 Parts Listings 1988 to 1997

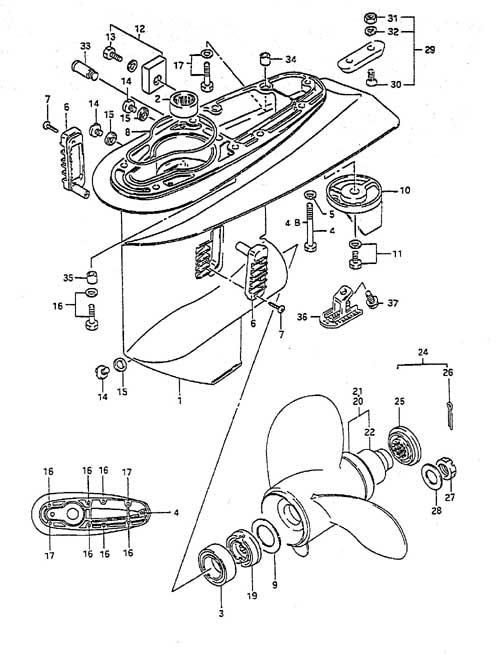

Fig. 32 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 55100-95330-0ED Gear Case Housing
SKU: 55100-95330-0ED Weight: 20.000000 Brand: Price: $ 779.60 |
Gear Case Housing | 1 | $ 779.60 | 1988 to 1990 Requires Ref# 4-2, 5 , 36 37 | |
| 1-2 | 55100-95330-0ED Gear Case Housing
SKU: 55100-95330-0ED Weight: 20.000000 Brand: Price: $ 779.60 |
Gear Case Housing | 1 | $ 779.60 | 1991 to 1997 | |
| 2 | 09263-26023 Bearing (26x34x30)
SKU: 09263-26023 Weight: 0.125000 Brand: Price: $ 84.31 |
Bearing (26x34x30) | 1 | $ 84.31 | ||
| 3 | 09265-30004 Bearing (30x62x17.25)
SKU: 09265-30004 Weight: 0.540000 Brand: Price: $ 59.58 |
Bearing (30x62x17.25) | 1 | $ 59.58 | ||
| 4-1 | 09100-10159 Bolt (10x130) (NLA)
SKU: 09100-10159 Weight: 0.180000 Brand: Price: $ 8.02 |
Bolt (10x130) (NLA) | 1 | $ 8.02 | 1988 to 1990 | |
| 4-2 | 09117-10024-XC0 Bolt (10x100) (NLA)
SKU: 09117-10024-XC0 Weight: 0.150000 Brand: Price: $ 18.02 |
Bolt (10x100) (NLA) | 1 | $ 18.02 | 1991 to 1996 | |
| 4B | 09117-10024-XC0 Bolt (10x100) (NLA)
SKU: 09117-10024-XC0 Weight: 0.150000 Brand: Price: $ 18.02 |
Bolt (10x100) (NLA) | 1 | $ 18.02 | 1997 | |
| 5 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 1 | $ 1.86 | 1988 to 1996 | |
| 6 | 17631-94600 Water Filter
SKU: 17631-94600 Weight: 0.060000 Brand: Price: $ 13.29 |
Water Filter | 2 | $ 13.29 | ||
| 7 | 03142-04259 SCREW
SKU: 03142-04259 Weight: 0.060000 Brand: Price: $ 2.20 |
SCREW | 2 | $ 2.20 | ||
| 8 | 55122-95202 Gear Case Seal Ring (NLA)
SKU: 55122-95202 Weight: 0.060000 Brand: Price: $ 5.52 |
Gear Case Seal Ring (NLA) | 1 | $ 5.52 | ||
| 10 | 55125-95500 Trim Tab Zinc Anode
SKU: 55125-95500 Weight: 0.400000 Brand: Price: $ 19.74 |
Trim Tab Zinc Anode | 1 | $ 19.74 | ||
| 11 | 09117-08109 Bolt (8x16)
SKU: 09117-08109 Weight: 0.060000 Brand: Price: $ 3.09 |
Bolt (8x16) | 1 | $ 3.09 | ||
| 12 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 13 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 14 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 3 | $ 6.59 | ||
| 15 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 3 | $ 1.60 | ||
| 16 | 09117-08038 Bolt (8x45)
SKU: 09117-08038 Weight: 0.060000 Brand: Price: $ 5.64 |
Bolt (8x45) | 6 | $ 5.64 | ||
| 17 | 09117-08063-XC0 Bolt (8x50)
SKU: 09117-08063-XC0 Weight: 0.125000 Brand: Price: $ 5.80 |
Bolt (8x50) | 2 | $ 5.80 | ||
| 19 | 57632-95320 Propeller Stopper
SKU: 57632-95320 Weight: 0.440000 Brand: Price: $ 56.14 |
Propeller Stopper | 1 | $ 56.14 | ||
| 20-1 | 58100-88LD0-019 S1000 Propeller 3x11-1/2x10
SKU: 58100-88LD0-019 Weight: 5.000000 Brand: Price: $ 182.95 |
S1000 Propeller 3x11-1/2x10 | 1 | $ 182.95 | ||
| 20-2 | 58100-88LE0-019 S1100 Propeller 3x11-1/2x11
SKU: 58100-88LE0-019 Weight: 5.000000 Brand: Price: $ 188.66 |
S1100 Propeller 3x11-1/2x11 | 1 | $ 188.66 | ||
| 20-3 | 58100-88LA0-019 S1200 Propeller 3x11-5/8x12
SKU: 58100-88LA0-019 Weight: 5.000000 Brand: Price: $ 201.26 |
S1200 Propeller 3x11-5/8x12 | 1 | $ 201.26 | ||
| 20-4 | 58100-88LB0-019 S1301 Propeller 3x11-1/2x13
SKU: 58100-88LB0-019 Weight: 5.000000 Brand: Price: $ 188.27 |
S1301 Propeller 3x11-1/2x13 | 1 | $ 188.27 | ||
| 20-5 | 58100-88LQ0-019 14P Propeller 3X11-3/8X14
SKU: 58100-88LQ0-019 Weight: 0.000000 Brand: Price: $ 171.14 |
14P Propeller 3X11-3/8X14 | 1 | $ 171.14 | ||
| 20-6 | 58100-88LR0-019 15P DF40A/50A/6
SKU: 58100-88LR0-019 Weight: 0.000000 Brand: Price: $ 166.16 |
15P DF40A/50A/6 | 1 | $ 166.16 | ||
| 20-7 | 58100-88L72-019 S1600 Propeller 3x11-1/8x16
SKU: 58100-88L72-019 Weight: 5.000000 Brand: Price: $ 171.14 |
S1600 Propeller 3x11-1/8x16 | 1 | $ 171.14 | ||
| 20-8 | 58100-88LF0-019 S1700 Propeller 3x11x17
SKU: 58100-88LF0-019 Weight: 5.000000 Brand: Price: $ 171.14 |
S1700 Propeller 3x11x17 | 1 | $ 171.14 | ||
| 22 | 58120-88L01 Propeller Bushing
SKU: 58120-88L01 Weight: 0.500000 Brand: Price: $ 36.45 |
Propeller Bushing | 1 | $ 36.45 | ||
| 24 | 57630-94301 Propeller Hardware Kit DT40/DT55/DT65/
DF40/DF50/DF60A
SKU: 57630-94301 Weight: 0.540000 Brand: Price: $ 28.34 |
Propeller Hardware Kit DT40/DT55/DT65/ DF40/DF50/DF60A | 1 | $ 28.34 | Optional | |
| 24 | 57633-94301 Propeller Nut Spacer
SKU: 57633-94301 Weight: 0.380000 Brand: Price: $ 16.59 |
Propeller Nut Spacer | 1 | $ 16.59 | ||
| 26 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 27 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 28 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | ||
| 29 | 55300-95500 Zinc Anode
SKU: 55300-95500 Weight: 0.240000 Brand: Price: $ 16.96 |
Zinc Anode | 1 | $ 16.96 | Optional | |
| 30 | 09126-06006 Screw (6x20)
SKU: 09126-06006 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (6x20) | 2 | $ 1.88 | ||
| 31 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 32 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 33 | 55181-95200 Flush Hose Attachment
SKU: 55181-95200 Weight: 0.080000 Brand: Price: $ 7.16 |
Flush Hose Attachment | 1 | $ 7.16 | Optional | |
| 34 | 09206-11017 Pin (11x20)
SKU: 09206-11017 Weight: 0.200000 Brand: Price: $ 5.46 |
Pin (11x20) | 1 | $ 5.46 | ||
| 35 | 09206-11016 Pin (11x12) (NLA)
SKU: 09206-11016 Weight: 0.060000 Brand: Price: $ 3.33 |
Pin (11x12) (NLA) | 1 | $ 3.33 | ||
| 36 | 17635-95301 Sub Water Filter
SKU: 17635-95301 Weight: 0.060000 Brand: Price: $ 5.70 |
Sub Water Filter | 1 | $ 5.70 | 1991 to 1997 | |
| 37 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | 1991 to 1997 | |
| 38 | 25700-94700 Gear Case Seal Kit DT55 / DT65 (NLA)
SKU: 25700-94700 Weight: 0.120000 Brand: Price: $ 22.27 |
Gear Case Seal Kit DT55 / DT65 (NLA) | 1 | $ 22.27 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
