Suzuki DT 55 Parts Listings 1988 to 1997

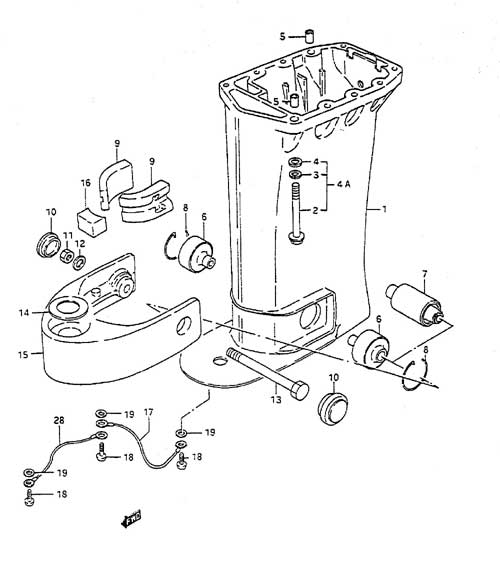

Fig. 31 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 52111-94741-0ED Driveshaft Housing (L) (NLA)
SKU: 52111-94741-0ED Weight: 10.000000 Brand: Price: $ 356.92 |
Driveshaft Housing (L) (NLA) | 1 | $ 356.92 | ||
| 2 | 09100-08213 Bolt (8x100)
SKU: 09100-08213 Weight: 0.100000 Brand: Price: $ 5.17 |
Bolt (8x100) | 8 | $ 5.17 | ||
| 3 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 8 | $ 1.49 | ||
| 4 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 8 | $ 1.63 | ||
| 4A | 09118-08102-XC0 Bolt (8x100)
SKU: 09118-08102-XC0 Weight: 0.080000 Brand: Price: $ 10.93 |
Bolt (8x100) | 8 | $ 10.93 | 1997 | |
| 5 | 09206-11004 Pin (11x14)
SKU: 09206-11004 Weight: 0.200000 Brand: Price: $ 5.45 |
Pin (11x14) | 2 | $ 5.45 | ||
| 6 | 54160-95200 Lower Mount (NLA)
SKU: 54160-95200 Weight: 3.500000 Brand: Price: $ 30.94 |
Lower Mount (NLA) | 2 | $ 30.94 | ||
| 8 | 09387-46001 Set Ring (NLA)
SKU: 09387-46001 Weight: 0.100000 Brand: Price: $ 1.01 |
Set Ring (NLA) | 2 | $ 1.01 | ||
| 9 | 54167-95500 Lower Side Mount (NLA)
SKU: 54167-95500 Weight: 0.100000 Brand: Price: $ 8.95 |
Lower Side Mount (NLA) | 2 | $ 8.95 | ||
| 10 | 54311-95210-0ED Cap (NLA)
SKU: 54311-95210-0ED Weight: 0.100000 Brand: Price: $ 2.24 |
Cap (NLA) | 2 | $ 2.24 | ||
| 11 | 09140-12029 Nut
SKU: 09140-12029 Weight: 0.060000 Brand: Price: $ 3.08 |
Nut | 1 | $ 3.08 | ||
| 12 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 1 | $ 1.80 | ||
| 13 | 09116-12008 Bolt (12x145) (NLA)
SKU: 09116-12008 Weight: 0.100000 Brand: Price: $ 11.51 |
Bolt (12x145) (NLA) | 1 | $ 11.51 | ||
| 14 | 09160-25052 Washer (NLA)
SKU: 09160-25052 Weight: 0.100000 Brand: Price: $ 2.21 |
Washer (NLA) | 1 | $ 2.21 | ||
| 15 | 54210-95210-0ED Lower Mount Bracket (NLA)
SKU: 54210-95210-0ED Weight: 3.000000 Brand: Price: $ 79.28 |
Lower Mount Bracket (NLA) | 1 | $ 79.28 | ||
| 16 | 54165-95200 Lower Thrust Mount
SKU: 54165-95200 Weight: 0.100000 Brand: Price: $ 7.02 |
Lower Thrust Mount | 1 | $ 7.02 | ||
| 17 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 18 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 3 | $ 1.88 | ||
| 19 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 3 | $ 2.90 | ||
| 28 | 36894-94401 Wire Lead (L:195)
SKU: 36894-94401 Weight: 0.060000 Brand: Price: $ 12.53 |
Wire Lead (L:195) | 1 | $ 12.53 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
