Suzuki DT 55 Parts Listings 1988 to 1997

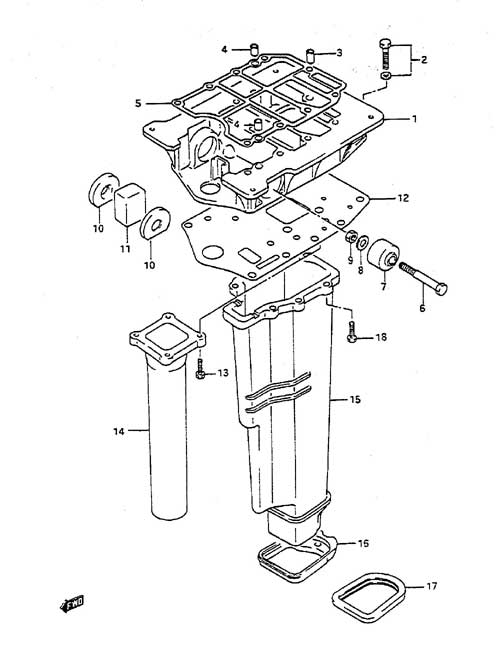

Fig. 30 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 51111-94711-0ED Engine Holder (NLA)
SKU: 51111-94711-0ED Weight: 10.000000 Brand: Price: $ 300.34 |
Engine Holder (NLA) | 1 | $ 300.34 | ||
| 2 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 2 | $ 5.05 | ||
| 3 | 09206-11017 Pin (11x20)
SKU: 09206-11017 Weight: 0.200000 Brand: Price: $ 5.46 |
Pin (11x20) | 1 | $ 5.46 | ||
| 4 | 09206-11004 Pin (11x14)
SKU: 09206-11004 Weight: 0.200000 Brand: Price: $ 5.45 |
Pin (11x14) | 2 | $ 5.45 | ||
| 5 | 51211-94750 Engine Holder Gasket (NLA)
SKU: 51211-94750 Weight: 0.200000 Brand: Price: $ 32.94 |
Engine Holder Gasket (NLA) | 1 | $ 32.94 | ||
| 6 | 09100-10208 Bolt (10x70)
SKU: 09100-10208 Weight: 0.200000 Brand: Price: $ 11.13 |
Bolt (10x70) | 2 | $ 11.13 | ||
| 7 | 54130-95500 Upper Mount
SKU: 54130-95500 Weight: 1.000000 Brand: Price: $ 43.79 |
Upper Mount | 2 | $ 43.79 | ||
| 8 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 9 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 10 | 54136-95501 Upper Mount Stopper (NLA)
SKU: 54136-95501 Weight: 0.250000 Brand: Price: $ 7.86 |
Upper Mount Stopper (NLA) | 2 | $ 7.86 | ||
| 11 | 54135-95200 Upper Thrust Mount (NLA)
SKU: 54135-95200 Weight: 0.100000 Brand: Price: $ 7.86 |
Upper Thrust Mount (NLA) | 1 | $ 7.86 | ||
| 12 | 52113-94731 Drive Shaft Housing Gasket (NLA)
SKU: 52113-94731 Weight: 0.300000 Brand: Price: $ 45.65 |
Drive Shaft Housing Gasket (NLA) | 1 | $ 45.65 | ||
| 13 | 09100-06122 Bolt (6x20)
SKU: 09100-06122 Weight: 0.060000 Brand: Price: $ 1.31 |
Bolt (6x20) | 4 | $ 1.31 | ||
| 14 | 14211-94701 Exhaust Tube (L) (NLA)
SKU: 14211-94701 Weight: 0.100000 Brand: Price: $ 64.39 |
Exhaust Tube (L) (NLA) | 1 | $ 64.39 | ||
| 15 | 52311-94701 Exhaust Tube Housing (L) (NLA)
SKU: 52311-94701 Weight: 5.000000 Brand: Price: $ 231.57 |
Exhaust Tube Housing (L) (NLA) | 1 | $ 231.57 | ||
| 17 | 52332-94711 Exhaust Tube Seal
SKU: 52332-94711 Weight: 0.200000 Brand: Price: $ 10.35 |
Exhaust Tube Seal | 1 | $ 10.35 | ||
| 18 | 09100-06122 Bolt (6x20)
SKU: 09100-06122 Weight: 0.060000 Brand: Price: $ 1.31 |
Bolt (6x20) | 7 | $ 1.31 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
