Suzuki DT 55 Parts Listings 1988 to 1997

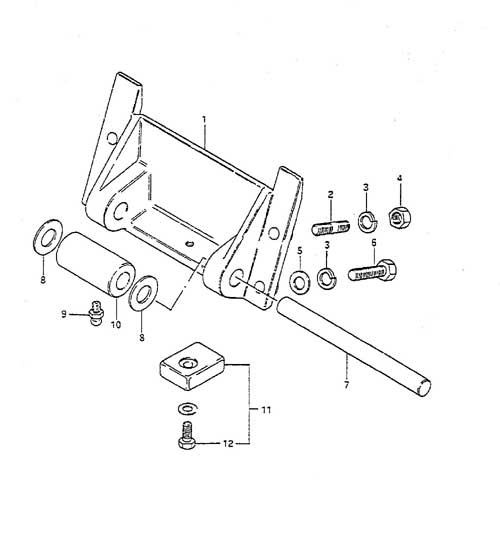

Fig. 24 - Cylinder Support
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48111-95201-0ED Oil Cylinder Support Bracket (NLA)
SKU: 48111-95201-0ED Weight: 0.100000 Brand: Price: $ 91.74 |
Oil Cylinder Support Bracket (NLA) | 1 | $ 91.74 | ||
| 2 | 09108-10061 Stud Bolt
SKU: 09108-10061 Weight: 0.060000 Brand: Price: $ 7.48 |
Stud Bolt | 2 | $ 7.48 | ||
| 3 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 4 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 5 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 6 | 09100-10220 Bolt (10x35)
SKU: 09100-10220 Weight: 0.250000 Brand: Price: $ 8.40 |
Bolt (10x35) | 2 | $ 8.40 | ||
| 7 | 48121-95200 Oil Cylinder Shaft (NLA)
SKU: 48121-95200 Weight: 0.100000 Brand: Price: $ 11.63 |
Oil Cylinder Shaft (NLA) | 1 | $ 11.63 | ||
| 8 | 09160-15036 Washer (NLA)
SKU: 09160-15036 Weight: 0.100000 Brand: Price: $ 2.50 |
Washer (NLA) | 2 | $ 2.50 | ||
| 9 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
| 10 | 48163-95200-0ED Oil Cylinder Spacer (NLA)
SKU: 48163-95200-0ED Weight: 0.100000 Brand: Price: $ 23.23 |
Oil Cylinder Spacer (NLA) | 1 | $ 23.23 | ||
| 11 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 12 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
- Prices and Part Numbers subject to change without notice.
