Suzuki DT 55 Parts Listings 1988 to 1994

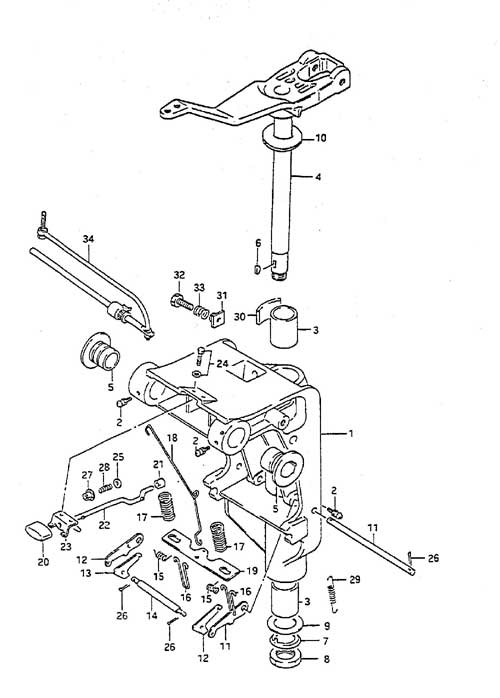

Fig. 22 - Swivel Bracket

Ref#	Part Number	Description	Req Qty*	Price Each	Order	Remarks
1-1	43111-95252-0ED Swivel Bracket (L) (NLA) SKU: 43111-95252-0ED Weight: 0.100000 Brand: Price: $ 271.04	Swivel Bracket (L) (NLA)	1	$ 271.04	Not Available	Type: L
1-2	43111-95220-0ED Swivel Bracket (L) (NLA) SKU: 43111-95220-0ED Weight: 10.000000 Brand: Price: $ 310.65	Swivel Bracket (L) (NLA)	1	$ 310.65	Not Available	DT55HTC Type: L
2	22511-99011 Grease Nipple SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36	Grease Nipple	4	$ 3.36
3-1	09306-26005 Bushing (NLA) SKU: 09306-26005 Weight: 0.100000 Brand: Price: $ 2.56	Bushing (NLA)	2	$ 2.56	Not Available
3-2	09306-26005 Bushing (NLA) SKU: 09306-26005 Weight: 0.100000 Brand: Price: $ 2.56	Bushing (NLA)	1	$ 2.56	Not Available	DT55HTC
3-3	09306-26006 Bushing (NLA) SKU: 09306-26006 Weight: 0.100000 Brand: Price: $ 2.84	Bushing (NLA)	1	$ 2.84	Not Available	DT55HTC
4	43750-95253-0ED Steering Bracket (L) (NLA) SKU: 43750-95253-0ED Weight: 0.100000 Brand: Price: $ 147.27	Steering Bracket (L) (NLA)	1	$ 147.27	Not Available
5	43211-95250 Bushing (NLA) SKU: 43211-95250 Weight: 0.060000 Brand: Price: $ 4.82	Bushing (NLA)	2	$ 4.82	Not Available
6	09420-05003 Key (NLA) SKU: 09420-05003 Weight: 0.100000 Brand: Price: $ 2.00	Key (NLA)	1	$ 2.00	Not Available
7	09166-25007 Washer (NLA) SKU: 09166-25007 Weight: 0.100000 Brand: Price: $ 1.01	Washer (NLA)	1	$ 1.01	Not Available
8	09140-24010 Nut SKU: 09140-24010 Weight: 0.100000 Brand: Price: $ 4.50	Nut	1	$ 4.50	Not Available
9-1	09181-26006 Shim (0.3) (NLA) SKU: 09181-26006 Weight: 0.100000 Brand: Price: $ 2.03	Shim (0.3) (NLA)	1	$ 2.03	Not Available
9-2	09181-26007 Shim (0.5) (NLA) SKU: 09181-26007 Weight: 0.100000 Brand: Price: $ 1.81	Shim (0.5) (NLA)	1	$ 1.81	Not Available
10	09160-25052 Washer (NLA) SKU: 09160-25052 Weight: 0.100000 Brand: Price: $ 2.21	Washer (NLA)	2	$ 2.21	Not Available
11	45245-95202 Reverse Lock Arm Shaft SKU: 45245-95202 Weight: 0.250000 Brand: Price: $ 11.73	Reverse Lock Arm Shaft	1	$ 11.73	Not Available
12	45241-95202 Reverse Lock Arm Link (NLA) SKU: 45241-95202 Weight: 0.300000 Brand: Price: $ 3.99	Reverse Lock Arm Link (NLA)	2	$ 3.99	Not Available
13	45231-95201 Reverse Lock Arm (NLA) SKU: 45231-95201 Weight: 0.060000 Brand: Price: $ 7.25	Reverse Lock Arm (NLA)	2	$ 7.25
14	45243-95201 Pin (NLA) SKU: 45243-95201 Weight: 0.100000 Brand: Price: $ 7.26	Pin (NLA)	1	$ 7.26	Not Available
15	09448-12018 Spring (NLA) SKU: 09448-12018 Weight: 0.100000 Brand: Price: $ 1.29	Spring (NLA)	2	$ 1.29	Not Available
16	45244-95200 Reverse Lock Stopper (NLA) SKU: 45244-95200 Weight: 0.100000 Brand: Price: $ 2.64	Reverse Lock Stopper (NLA)	2	$ 2.64	Not Available
17	09440-21005 Spring (NLA) SKU: 09440-21005 Weight: 0.100000 Brand: Price: $ 2.28	Spring (NLA)	2	$ 2.28	Not Available
15	45252-96303 Release Lever Link SKU: 45252-96303 Weight: 0.200000 Brand: Price: $ 7.45	Release Lever Link	1	$ 7.45
19	45242-95251 Reverse Lock Arm Plate (NLA) SKU: 45242-95251 Weight: 0.100000 Brand: Price: $ 6.60	Reverse Lock Arm Plate (NLA)	1	$ 6.60	Not Available
20	45255-96302 Release Lever Knob SKU: 45255-96302 Weight: 0.060000 Brand: Price: $ 6.38	Release Lever Knob	1	$ 6.38
21	45257-93900 Bushing SKU: 45257-93900 Weight: 0.100000 Brand: Price: $ 1.72	Bushing	1	$ 1.72	Not Available
22	45260-95250 Release Lever (NLA) SKU: 45260-95250 Weight: 0.100000 Brand: Price: $ 3.33	Release Lever (NLA)	1	$ 3.33	Not Available
23	45311-93900-0ED Release Lever Bracket (NLA) SKU: 45311-93900-0ED Weight: 0.100000 Brand: Price: $ 13.59	Release Lever Bracket (NLA)	1	$ 13.59	Not Available
24	09116-05010 Bolt (5x12) SKU: 09116-05010 Weight: 0.060000 Brand: Price: $ 2.14	Bolt (5x12)	2	$ 2.14
25	09160-04012 Washer (4.2x10x1) SKU: 09160-04012 Weight: 0.100000 Brand: Price: $ 1.47	Washer (4.2x10x1)	1	$ 1.47	Not Available
26	09204-01002 Cotter Pin SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70	Cotter Pin	3	$ 1.70
27	09319-04001 Bushing SKU: 09319-04001 Weight: 0.100000 Brand: Price: $ 1.26	Bushing	1	$ 1.26	Not Available
28	09440-04021 Release Spring (NLA) SKU: 09440-04021 Weight: 0.060000 Brand: Price: $ 0.88	Release Spring (NLA)	1	$ 0.88	Not Available
29	09443-05013 Spring SKU: 09443-05013 Weight: 0.060000 Brand: Price: $ 3.71	Spring	1	$ 3.71
30	43411-94300 Steering Adjuster (NLA) SKU: 43411-94300 Weight: 0.100000 Brand: Price: $ 3.33	Steering Adjuster (NLA)	1	$ 3.33	Not Available	DT55HTC
31	43421-96302 Adjuster Bushing SKU: 43421-96302 Weight: 0.100000 Brand: Price: $ 7.82	Adjuster Bushing	1	$ 7.82	Not Available	DT55HTC
32	09119-08044 Bolt (8x23) (NLA) SKU: 09119-08044 Weight: 0.100000 Brand: Price: $ 1.98	Bolt (8x23) (NLA)	1	$ 1.98	Not Available	DT55HTC
33	09440-13045 Spring (NLA) SKU: 09440-13045 Weight: 0.100000 Brand: Price: $ 1.26	Spring (NLA)	1	$ 1.26	Not Available	DT55HTC

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
