Suzuki DT 55 Parts Listings 1988 to 1994

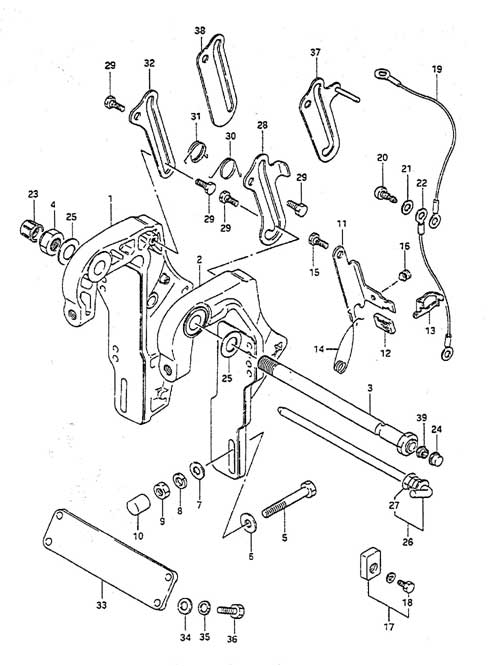

Fig. 20 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-95272-0ED Starboard Clamp Bracket
SKU: 41111-95272-0ED Weight: 5.000000 Brand: Price: $ 262.66 |
Starboard Clamp Bracket | 1 | $ 262.66 | S/N 461580 Older Requires Ref# 29, 36 40 | |
| 1-2 | 41111-95272-0ED Starboard Clamp Bracket
SKU: 41111-95272-0ED Weight: 5.000000 Brand: Price: $ 262.66 |
Starboard Clamp Bracket | 1 | $ 262.66 | S/N 461581 Newer | |
| 2 | 41121-95281-0ED Port Clamp Bracket (NLA)
SKU: 41121-95281-0ED Weight: 5.000000 Brand: Price: $ 254.49 |
Port Clamp Bracket (NLA) | 1 | $ 254.49 | ||
| 3 | 41130-95292 Clamp Bracket Shaft
SKU: 41130-95292 Weight: 1.500000 Brand: Price: $ 283.97 |
Clamp Bracket Shaft | 1 | $ 283.97 | ||
| 4 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 5 | 09100-12093 Transom Bolt (12x100)
SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | Requires Ref# 41 | |
| 6 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 7 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 4 | $ 1.80 | ||
| 8 | 09162-12005 Lock Washer
SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 4 | $ 2.06 | ||
| 9 | 09140-12028 Nut
SKU: 09140-12028 Weight: 0.060000 Brand: Price: $ 3.60 |
Nut | 4 | $ 3.60 | ||
| 10 | 41153-94500 Transom Bolt Cap
SKU: 41153-94500 Weight: 0.060000 Brand: Price: $ 2.96 |
Transom Bolt Cap | 4 | $ 2.96 | ||
| 11 | 41222-95260-0ED Tilt Lock Arm (NLA)
SKU: 41222-95260-0ED Weight: 0.100000 Brand: Price: $ 23.82 |
Tilt Lock Arm (NLA) | 1 | $ 23.82 | w/PTT | |
| 12 | 41225-94400 Tilt Lock Arm Rubber
SKU: 41225-94400 Weight: 0.060000 Brand: Price: $ 2.88 |
Tilt Lock Arm Rubber | 1 | $ 2.88 | w/PTT | |
| 13 | 41227-95250 Tilt Lock Bracket (NLA)
SKU: 41227-95250 Weight: 0.060000 Brand: Price: $ 2.32 |
Tilt Lock Bracket (NLA) | 1 | $ 2.32 | w/PTT | |
| 14 | 41228-95250 Tilt Lock Spring (NLA)
SKU: 41228-95250 Weight: 0.100000 Brand: Price: $ 3.24 |
Tilt Lock Spring (NLA) | 1 | $ 3.24 | w/PTT | |
| 15 | 09111-12008 Bolt (NLA)
SKU: 09111-12008 Weight: 0.200000 Brand: Price: $ 4.50 |
Bolt (NLA) | 2 | $ 4.50 | w/PTT | |
| 16 | 09321-06024 Cushion (NLA)
SKU: 09321-06024 Weight: 0.060000 Brand: Price: $ 1.15 |
Cushion (NLA) | 1 | $ 1.15 | w/PTT | |
| 17 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 18 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 19 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 20 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 21 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 | ||
| 22 | 36894-94401 Wire Lead (L:195)
SKU: 36894-94401 Weight: 0.060000 Brand: Price: $ 12.53 |
Wire Lead (L:195) | 1 | $ 12.53 | ||
| 23 | 41151-94500 Clamp Bracket Shaft Cap
SKU: 41151-94500 Weight: 0.060000 Brand: Price: $ 2.85 |
Clamp Bracket Shaft Cap | 1 | $ 2.85 | ||
| 24 | 41152-94500 Clamp Bracket Shaft Plug
SKU: 41152-94500 Weight: 0.125000 Brand: Price: $ 2.22 |
Clamp Bracket Shaft Plug | 1 | $ 2.22 | ||
| 25 | 09160-22046 Washer (NLA)
SKU: 09160-22046 Weight: 0.060000 Brand: Price: $ 4.68 |
Washer (NLA) | 1 | $ 4.68 | ||
| 26 | 45420-95250 Tilt Lock Pin (NLA)
SKU: 45420-95250 Weight: 0.650000 Brand: Price: $ 35.73 |
Tilt Lock Pin (NLA) | 1 | $ 35.73 | No PTT | |
| 27 | 09441-21002 Spring (NLA)
SKU: 09441-21002 Weight: 0.100000 Brand: Price: $ 1.21 |
Spring (NLA) | 1 | $ 1.21 | No PTT | |
| 28 | 41200-95200 Tilt Arm Assembly (NLA)
SKU: 41200-95200 Weight: 0.100000 Brand: Price: $ 55.29 |
Tilt Arm Assembly (NLA) | 1 | $ 55.29 | No PTT | |
| 29 | 09111-12008 Bolt (NLA)
SKU: 09111-12008 Weight: 0.200000 Brand: Price: $ 4.50 |
Bolt (NLA) | 4 | $ 4.50 | No PTT | |
| 30 | 09448-27010 Spring (NLA)
SKU: 09448-27010 Weight: 0.060000 Brand: Price: $ 3.11 |
Spring (NLA) | 1 | $ 3.11 | No PTT | |
| 31 | 09448-27011 Spring (NLA)
SKU: 09448-27011 Weight: 0.060000 Brand: Price: $ 2.02 |
Spring (NLA) | 1 | $ 2.02 | No PTT | |
| 32 | 41223-95210-0ED Tilt Stop Arm (NLA)
SKU: 41223-95210-0ED Weight: 0.100000 Brand: Price: $ 24.45 |
Tilt Stop Arm (NLA) | 1 | $ 24.45 | No PTT | |
| 33 | 41311-95250-0ED Clamp Bracket Plate (NLA)
SKU: 41311-95250-0ED Weight: 0.100000 Brand: Price: $ 36.11 |
Clamp Bracket Plate (NLA) | 1 | $ 36.11 | No PTT | |
| 34 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 4 | $ 1.63 | No PTT | |
| 35 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 4 | $ 1.86 | No PTT | |
| 36 | 09100-10220 Bolt (10x35)
SKU: 09100-10220 Weight: 0.250000 Brand: Price: $ 8.40 |
Bolt (10x35) | 4 | $ 8.40 | No PTT | |
| 37 | 41222-95251-0ED Tilt Lock Arm (NLA)
SKU: 41222-95251-0ED Weight: 0.100000 Brand: Price: $ 17.34 |
Tilt Lock Arm (NLA) | 1 | $ 17.34 | Opt: DT55HTC | |
| 38 | 41223-95251-0ED Tilt Stop Arm (NLA)
SKU: 41223-95251-0ED Weight: 0.100000 Brand: Price: $ 22.09 |
Tilt Stop Arm (NLA) | 1 | $ 22.09 | Opt: DT55HTC | |
| 39 | 41161-94400 Steering Cable Seal
SKU: 41161-94400 Weight: 0.060000 Brand: Price: $ 12.60 |
Steering Cable Seal | 1 | $ 12.60 | ||
| 40 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 4 | $ 2.04 | Not Shown | |
| 41 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
