Suzuki DT 55 Parts Listings 1988 to 1991

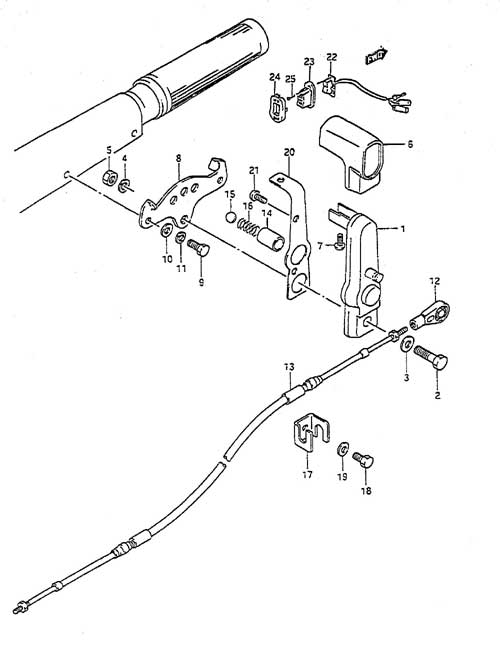

Fig. 19 - Clutch Lever - DT55HTC
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21111-95512 Clutch Lever (NLA)
SKU: 21111-95512 Weight: 0.120000 Brand: Price: $ 12.68 |
Clutch Lever (NLA) | 1 | $ 12.68 | ||
| 2 | 09111-08073 Bolt (NLA)
SKU: 09111-08073 Weight: 0.060000 Brand: Price: $ 6.24 |
Bolt (NLA) | 1 | $ 6.24 | ||
| 3 | 09160-10097 Washer (10.5x22x2.5)
SKU: 09160-10097 Weight: 0.060000 Brand: Price: $ 2.36 |
Washer (10.5x22x2.5) | 1 | $ 2.36 | ||
| 4 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 1 | $ 1.49 | ||
| 5 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 1 | $ 2.52 | ||
| 6 | 67261-95600 Handle Grip for PTT
SKU: 67261-95600 Weight: 0.250000 Brand: Price: $ 14.78 |
Handle Grip for PTT | 1 | $ 14.78 | ||
| 7 | 09125-05042 Screw (5x10)
SKU: 09125-05042 Weight: 0.060000 Brand: Price: $ 1.99 |
Screw (5x10) | 1 | $ 1.99 | ||
| 8 | 21112-95501 Clutch Lever Plate (NLA)
SKU: 21112-95501 Weight: 0.100000 Brand: Price: $ 12.93 |
Clutch Lever Plate (NLA) | 1 | $ 12.93 | ||
| 9 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 10 | 09160-06036 Washer (6.5x18x1.5)
SKU: 09160-06036 Weight: 0.060000 Brand: Price: $ 1.97 |
Washer (6.5x18x1.5) | 2 | $ 1.97 | ||
| 11 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 12 | 67467-94404 Cable Connector
SKU: 67467-94404 Weight: 0.060000 Brand: Price: $ 9.56 |
Cable Connector | 1 | $ 9.56 | ||
| 13 | 23230-95500 Clutch Cable Assembly
SKU: 23230-95500 Weight: 1.000000 Brand: Price: $ 143.70 |
Clutch Cable Assembly | 1 | $ 143.70 | ||
| 14 | 09180-11006 Spacer (NLA)
SKU: 09180-11006 Weight: 0.060000 Brand: Price: $ 5.39 |
Spacer (NLA) | 1 | $ 5.39 | ||
| 15 | 09260-14001 Clutch Notch Ball (NLA)
SKU: 09260-14001 Weight: 0.060000 Brand: Price: $ 2.55 |
Clutch Notch Ball (NLA) | 1 | $ 2.55 | ||
| 16 | 09440-09021 Spring
SKU: 09440-09021 Weight: 0.060000 Brand: Price: $ 2.20 |
Spring | 1 | $ 2.20 | ||
| 17 | 67341-94302 Remocon Cable Holder
SKU: 67341-94302 Weight: 0.100000 Brand: Price: $ 17.83 |
Remocon Cable Holder | 1 | $ 17.83 | ||
| 18 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 19 | 09160-06085 Washer (6.5x15x1.0)
SKU: 09160-06085 Weight: 0.060000 Brand: Price: $ 1.36 |
Washer (6.5x15x1.0) | 1 | $ 1.36 | ||
| 20 | 21121-95502 Clutch Lever Panel
SKU: 21121-95502 Weight: 0.080000 Brand: Price: $ 8.12 |
Clutch Lever Panel | 1 | $ 8.12 | ||
| 21 | 03211-0410B SCREW
SKU: 03211-0410B Weight: 0.200000 Brand: Price: $ 1.93 |
SCREW | 2 | $ 1.93 | ||
| 22 | 37860-95590 Trim Switch
SKU: 37860-95590 Weight: 0.080000 Brand: Price: $ 104.61 |
Trim Switch | 1 | $ 104.61 | ||
| 23 | 37869-95590 Trim Switch Cap
SKU: 37869-95590 Weight: 0.060000 Brand: Price: $ 9.04 |
Trim Switch Cap | 1 | $ 9.04 | ||
| 24 | 67263-95600 Grip Cap
SKU: 67263-95600 Weight: 0.200000 Brand: Price: $ 5.83 |
Grip Cap | 1 | $ 5.83 | ||
| 25 | 09139-02003 Screw (2x6)
SKU: 09139-02003 Weight: 0.060000 Brand: Price: $ 1.43 |
Screw (2x6) | 1 | $ 1.43 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
