Suzuki DT 55 Parts Listings 1988 to 1991

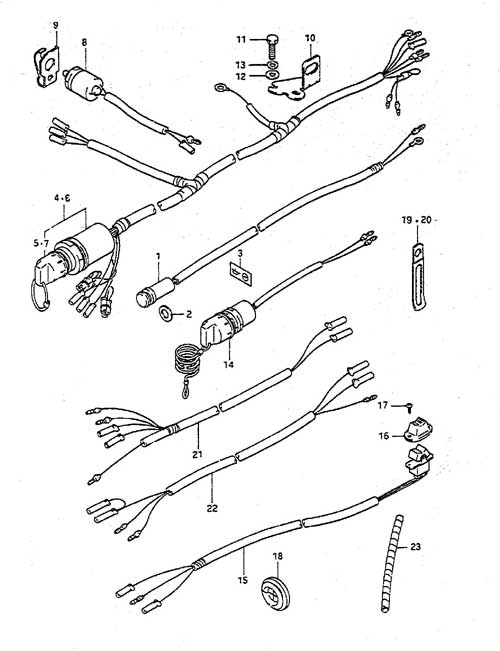

Fig. 17 - Electrical - DT55HTC
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 36360-94700 Oil/Heat Warning Lamp Assembly (NLA)
SKU: 36360-94700 Weight: 0.100000 Brand: Price: $ 22.09 |
Oil/Heat Warning Lamp Assembly (NLA) | 1 | $ 22.09 | ||
| 2 | 09320-11004 Oil Lamp Gasket (NLA)
SKU: 09320-11004 Weight: 0.100000 Brand: Price: $ 1.15 |
Oil Lamp Gasket (NLA) | 1 | $ 1.15 | ||
| 3-1 | 36367-94700 Oil/Heat Label (NLA)
SKU: 36367-94700 Weight: 0.100000 Brand: Price: $ 1.57 |
Oil/Heat Label (NLA) | 1 | $ 1.57 | 1988 | |
| 3-2 | 36367-95D10-064 Oil/Water Lamp Label (NLA)
SKU: 36367-95D10-064 Weight: 0.100000 Brand: Price: $ 1.73 |
Oil/Water Lamp Label (NLA) | 1 | $ 1.73 | 1989 to 1991 | |
| 4 | 37110-94720 Ignition Switch Assembly (NLA)
SKU: 37110-94720 Weight: 0.100000 Brand: Price: $ 160.96 |
Ignition Switch Assembly (NLA) | 1 | $ 160.96 | 1988 | |
| 5-1 | 37141-94401 (101) Ignition Key
SKU: 37141-94401 Weight: 0.060000 Brand: Price: $ 25.43 |
(101) Ignition Key | 1 | $ 25.43 | ||
| 5-2 | 37141-94410 (102) Ignition Key
SKU: 37141-94410 Weight: 0.060000 Brand: Price: $ 22.62 |
(102) Ignition Key | 1 | $ 22.62 | ||
| 5-3 | 37141-94420 (103) Ignition Key*
SKU: 37141-94420 Weight: 0.060000 Brand: Price: $ 25.15 |
(103) Ignition Key* | 1 | $ 25.15 | ||
| 5-4 | 37141-94431 (104) Ignition Key
SKU: 37141-94431 Weight: 0.060000 Brand: Price: $ 21.86 |
(104) Ignition Key | 1 | $ 21.86 | ||
| 5-5 | 37141-94440 (105) Ignition Key
SKU: 37141-94440 Weight: 0.060000 Brand: Price: $ 25.15 |
(105) Ignition Key | 1 | $ 25.15 | ||
| 5-6 | 37141-94450 (106) Ignition Key*
SKU: 37141-94450 Weight: 0.060000 Brand: Price: $ 22.62 |
(106) Ignition Key* | 1 | $ 22.62 | ||
| 6 | 37110-94732 Ignition Switch Assembly (NLA)
SKU: 37110-94732 Weight: 0.460000 Brand: Price: $ 201.31 |
Ignition Switch Assembly (NLA) | 1 | $ 201.31 | 1989 to 1991 | |
| 7-1 | 37141-95D10 (101) Ignition Key (NLA)
SKU: 37141-95D10 Weight: 0.200000 Brand: Price: $ 18.64 |
(101) Ignition Key (NLA) | 1 | $ 18.64 | ||
| 7-2 | 37141-95D50 (105) Ignition Key (NLA)
SKU: 37141-95D50 Weight: 0.100000 Brand: Price: $ 32.28 |
(105) Ignition Key (NLA) | 1 | $ 32.28 | ||
| 8 | 37721-94406 Neutral Switch Assembly
SKU: 37721-94406 Weight: 0.200000 Brand: Price: $ 29.49 |
Neutral Switch Assembly | 1 | $ 29.49 | ||
| 9 | 37725-95300 Neutral Switch Actuator
SKU: 37725-95300 Weight: 0.125000 Brand: Price: $ 5.67 |
Neutral Switch Actuator | 1 | $ 5.67 | ||
| 10 | 37726-95303 Neutral Switch Bracket (NLA)
SKU: 37726-95303 Weight: 0.100000 Brand: Price: $ 2.92 |
Neutral Switch Bracket (NLA) | 1 | $ 2.92 | ||
| 11 | 09100-06122 Bolt (6x20)
SKU: 09100-06122 Weight: 0.060000 Brand: Price: $ 1.31 |
Bolt (6x20) | 2 | $ 1.31 | ||
| 12 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | ||
| 13 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 14 | 37820-94461 Emergency Stop Switch Assembly
SKU: 37820-94461 Weight: 0.150000 Brand: Price: $ 51.84 |
Emergency Stop Switch Assembly | 1 | $ 51.84 | ||
| 15 | 37860-95590 Trim Switch
SKU: 37860-95590 Weight: 0.080000 Brand: Price: $ 104.61 |
Trim Switch | 1 | $ 104.61 | ||
| 16 | 37869-95590 Trim Switch Cap
SKU: 37869-95590 Weight: 0.060000 Brand: Price: $ 9.04 |
Trim Switch Cap | 1 | $ 9.04 | ||
| 17 | 09139-02003 Screw (2x6)
SKU: 09139-02003 Weight: 0.060000 Brand: Price: $ 1.43 |
Screw (2x6) | 2 | $ 1.43 | ||
| 18 | 36656-94310 Extension Harness Guide (NLA)
SKU: 36656-94310 Weight: 0.100000 Brand: Price: $ 3.65 |
Extension Harness Guide (NLA) | 1 | $ 3.65 | ||
| 19 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 2 | $ 1.86 | ||
| 20 | 09404-10205 Clamp (NLA)
SKU: 09404-10205 Weight: 0.060000 Brand: Price: $ 1.60 |
Clamp (NLA) | 1 | $ 1.60 | ||
| 21 | 37862-94700 Trim Lead Extension (NLA)
SKU: 37862-94700 Weight: 0.100000 Brand: Price: $ 13.11 |
Trim Lead Extension (NLA) | 1 | $ 13.11 | ||
| 22 | 37862-95201 Trim Switch Lead Extension (NLA)
SKU: 37862-95201 Weight: 0.100000 Brand: Price: $ 11.68 |
Trim Switch Lead Extension (NLA) | 1 | $ 11.68 | ||
| 23 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
