Suzuki DT 55 Parts Listings 1988 to 1997

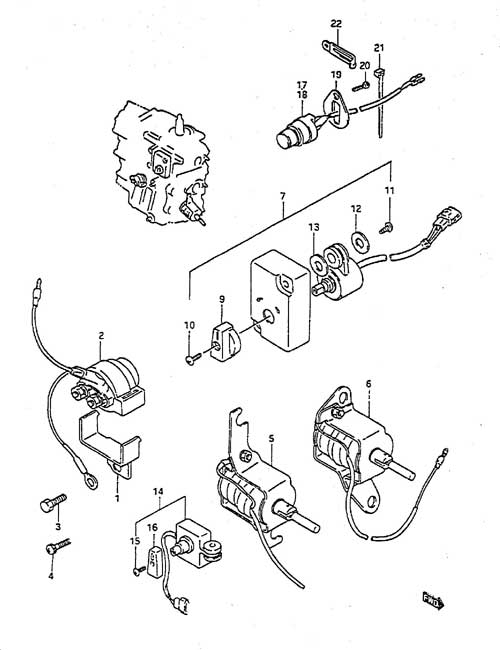

Fig. 15 - Solenoid
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38412-94700 Relay Bracket (NLA)
SKU: 38412-94700 Weight: 0.100000 Brand: Price: $ 4.18 |
Relay Bracket (NLA) | 1 | $ 4.18 | ||
| 2 | 31800-94401 Starter Relay
SKU: 31800-94401 Weight: 0.340000 Brand: Price: $ 140.18 |
Starter Relay | 1 | $ 140.18 | ||
| 3 | 01580-06167 BOLT
SKU: 01580-06167 Weight: 0.100000 Brand: Price: $ 2.88 |
BOLT | 1 | $ 2.88 | 1988 to 1994 | |
| 4 | 02112-36167 SCREW
SKU: 02112-36167 Weight: 0.060000 Brand: Price: $ 2.34 |
SCREW | 1 | $ 2.34 | 1995 to 1997 | |
| 5 | 38600-95520 Choke Solenoid Assembly (NLA)
SKU: 38600-95520 Weight: 0.780000 Brand: Price: $ 127.94 |
Choke Solenoid Assembly (NLA) | 1 | $ 127.94 | ||
| 7 | 37920-94710 Ignition Timing Switch Assembly (NLA)
SKU: 37920-94710 Weight: 0.200000 Brand: Price: $ 78.08 |
Ignition Timing Switch Assembly (NLA) | 1 | $ 78.08 | 1993 | |
| 9 | 37922-94610 Knob
SKU: 37922-94610 Weight: 0.100000 Brand: Price: $ 7.10 |
Knob | 1 | $ 7.10 | ||
| 10 | 02112-04087 SCREW 4X8
SKU: 02112-04087 Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW 4X8 | 1 | $ 1.11 | ||
| 11 | 03212-0512B SCREW
SKU: 03212-0512B Weight: 0.060000 Brand: Price: $ 2.62 |
SCREW | 1 | $ 2.62 | 1988 | |
| 12 | 09160-05024 Washer (5.5x16x1.5)
SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54 |
Washer (5.5x16x1.5) | 1 | $ 1.54 | ||
| 13 | 08322-01107 Washer
SKU: 08322-01107 Weight: 0.060000 Brand: Price: $ 1.87 |
Washer | 1 | $ 1.87 | ||
| 14 | 37920-95500 Ignition Timing Switch Assembly (NLA)
SKU: 37920-95500 Weight: 0.100000 Brand: Price: $ 53.66 |
Ignition Timing Switch Assembly (NLA) | 1 | $ 53.66 | 1989 to 1990 | |
| 15 | 02112-04087 SCREW 4X8
SKU: 02112-04087 Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW 4X8 | 1 | $ 1.11 | 1989 to 1990 | |
| 16 | 37921-95D00 Knob (NLA)
SKU: 37921-95D00 Weight: 0.100000 Brand: Price: $ 4.82 |
Knob (NLA) | 1 | $ 4.82 | 1989 to 1990 | |
| 17 | 34820-94600 Engine Temp Sensor (NLA)
SKU: 34820-94600 Weight: 0.060000 Brand: Price: $ 113.27 |
Engine Temp Sensor (NLA) | 1 | $ 113.27 | 1989 | |
| 18 | 34850-94610 Heat Sensor Assy
SKU: 34850-94610 Weight: 0.080000 Brand: Price: $ 106.60 |
Heat Sensor Assy | 1 | $ 106.60 | 1990 to 1997 | |
| 19 | 34853-94700 Heat Sensor Supporter
SKU: 34853-94700 Weight: 0.100000 Brand: Price: $ 3.71 |
Heat Sensor Supporter | 1 | $ 3.71 | 1989 to 1997 | |
| 20 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 2 | $ 2.09 | 1989 to 1997 | |
| 21 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 4 | $ 4.73 | 1989 to 1993 | |
| 22 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 3 | $ 1.86 | 1989 to 1993 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
