Suzuki DT 55 Parts Listings 1988 to 1997

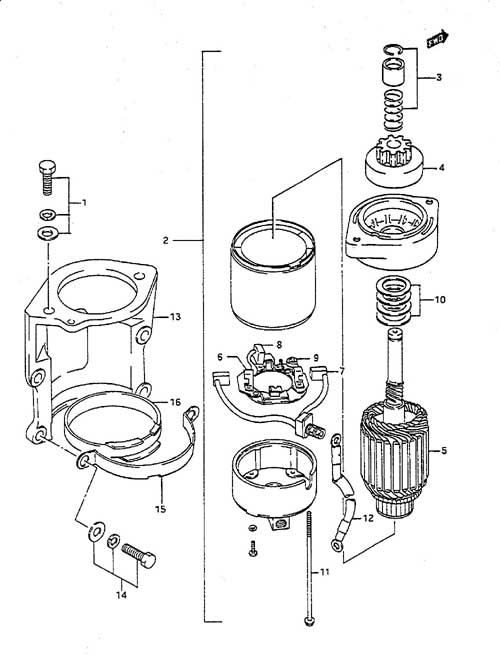

Fig. 10 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 01580-08257 BOLT
SKU: 01580-08257 Weight: 0.060000 Brand: Price: $ 3.24 |
BOLT | 2 | $ 3.24 | ||
| 2 | 31100-94702 Starter Motor Assembly
SKU: 31100-94702 Weight: 10.000000 Brand: Price: $ 687.14 |
Starter Motor Assembly | 1 | $ 687.14 | ||
| 3 | 31312-94601 Pinion Stopper Set
SKU: 31312-94601 Weight: 0.250000 Brand: Price: $ 13.39 |
Pinion Stopper Set | 1 | $ 13.39 | ||
| 4 | 31320-95240 Pinion Assembly (NLA)
SKU: 31320-95240 Weight: 0.600000 Brand: Price: $ 210.00 |
Pinion Assembly (NLA) | 1 | $ 210.00 | ||
| 5 | 31310-94600 Armature (NLA)
SKU: 31310-94600 Weight: 5.000000 Brand: Price: $ 347.90 |
Armature (NLA) | 1 | $ 347.90 | ||
| 6 | 31173-95310 Brush Holder
SKU: 31173-95310 Weight: 0.160000 Brand: Price: $ 62.73 |
Brush Holder | 1 | $ 62.73 | ||
| 7 | 31131-95310 Brush (+)
SKU: 31131-95310 Weight: 0.060000 Brand: Price: $ 25.72 |
Brush (+) | 2 | $ 25.72 | ||
| 8 | 31131-95241 Brush
SKU: 31131-95241 Weight: 0.060000 Brand: Price: $ 14.27 |
Brush | 1 | $ 14.27 | ||
| 9 | 31135-95310 Spring (NLA)
SKU: 31135-95310 Weight: 0.060000 Brand: Price: $ 4.46 |
Spring (NLA) | 3 | $ 4.46 | ||
| 10 | 31360-87D00 Washer Kit (NLA)
SKU: 31360-87D00 Weight: 0.100000 Brand: Price: $ 4.35 |
Washer Kit (NLA) | 1 | $ 4.35 | ||
| 11 | 31281-94700 Through Bolt (NLA)
SKU: 31281-94700 Weight: 0.100000 Brand: Price: $ 3.99 |
Through Bolt (NLA) | 2 | $ 3.99 | ||
| 12 | 33820-89E01 Starter Sub Cable Assy (NLA)
SKU: 33820-89E01 Weight: 5.000000 Brand: Price: $ 11.51 |
Starter Sub Cable Assy (NLA) | 1 | $ 11.51 | ||
| 13 | 31911-94701-0ED Starting Motor Bracket (NLA)
SKU: 31911-94701-0ED Weight: 0.100000 Brand: Price: $ 30.57 |
Starting Motor Bracket (NLA) | 1 | $ 30.57 | ||
| 14 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 4 | $ 2.82 | ||
| 15 | 31912-94701 Starting Motor Band (NLA)
SKU: 31912-94701 Weight: 0.100000 Brand: Price: $ 4.35 |
Starting Motor Band (NLA) | 1 | $ 4.35 | ||
| 16 | 31918-94701 Starter Damper (NLA)
SKU: 31918-94701 Weight: 0.100000 Brand: Price: $ 9.68 |
Starter Damper (NLA) | 1 | $ 9.68 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
